Output Configuration; Figure 48- Text Menu- Output Configuration - NTI SPLITMUX-USB4K-4RT Installation And Operation Manual

SPLITMUX Quad Screen 4K Multiviewer

Output Configuration

The Output Configuration determines how the inputs will be viewed on the display (Main Menu—>6). From this menu you can
also select the Audio Output Configuration which will provide settings for how the audio from the inputs is managed.
Video Output Configuration
Output Port Name
Output resolution
Note: When the Output resolution is set to "Auto", your SPLITMUX will automatically sense the native resolution of your
monitor and set the output resolution to that when powering ON the SPLITMUX.
Video Output Resolutions to choose from (progressive scan):
1280x720@60Hz 2048x1080@60Hz
1920x1080@60Hz 3840x2160@30Hz

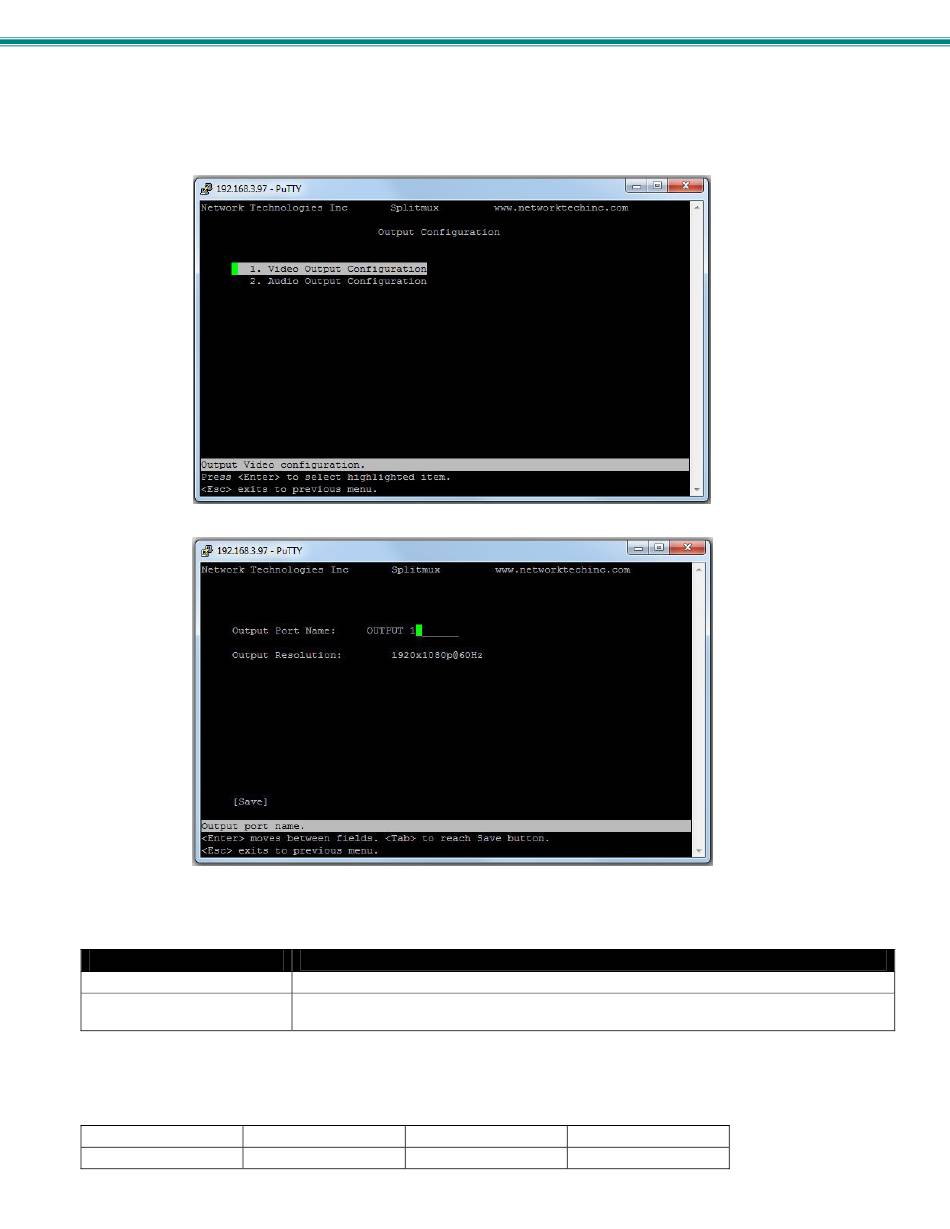

Figure 48- Text Menu- Output Configuration

Enter a port name to associate with the display
Select the output resolution to send to the display (see table below for resolutions to choose
from) or select Auto to have it choose from the EDID table.
3840x2160@60Hz
4096x2160@60Hz
4096x2160@30Hz
