Terminal Connection for RS232

If control via serial connection is going to be used, serial control can be achieved by connecting a control terminal to the "RS232"
port .
To use the "RS232" port, connect one end of a CAT5 patch cable (supplied) to the port labeled "RS232" on the rear of the
SPLITMUX. Plug the other end of the CAT5 cable into an RJ45-to-DB9F adapter (supplied), and connect the adapter to the
RS232 port on the control terminal.

Ethernet Connection for Remote User Control

To make a remote connection, over the Ethernet, from anywhere on the local area network, connect a CAT5/5e/6 Ethernet
cable with RJ45 male connectors on the ends, wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.).
connect to the SPLITMUX using the Ethernet at a time.
Note: A direct connection from a computer's Ethernet port to the SPLITMUX "ETHERNET" port may also be made using
the same cable.

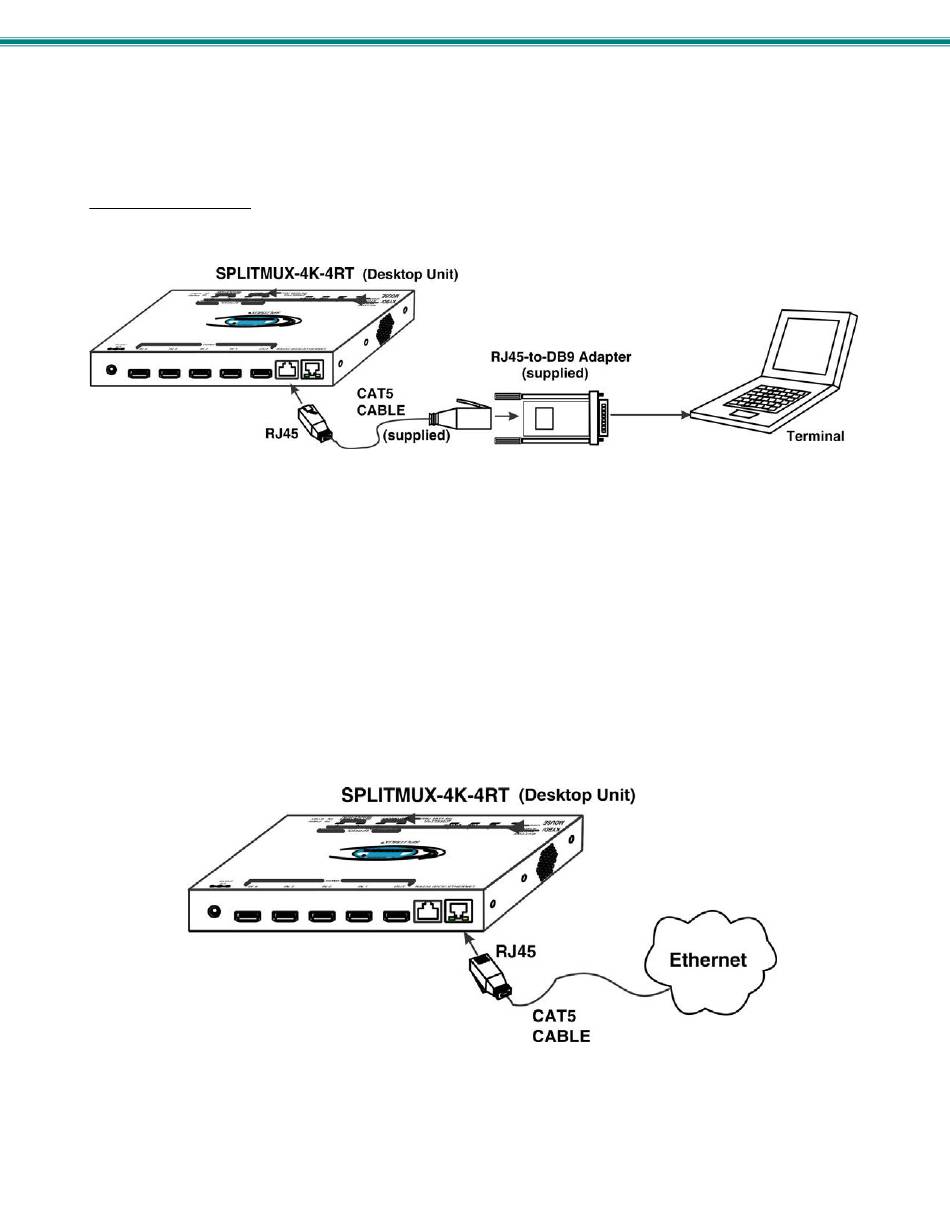

Figure 11- RS232 Terminal Connection

Figure 12- Ethernet connection
