SPLITMUX Quad Screen 4K Multiviewer

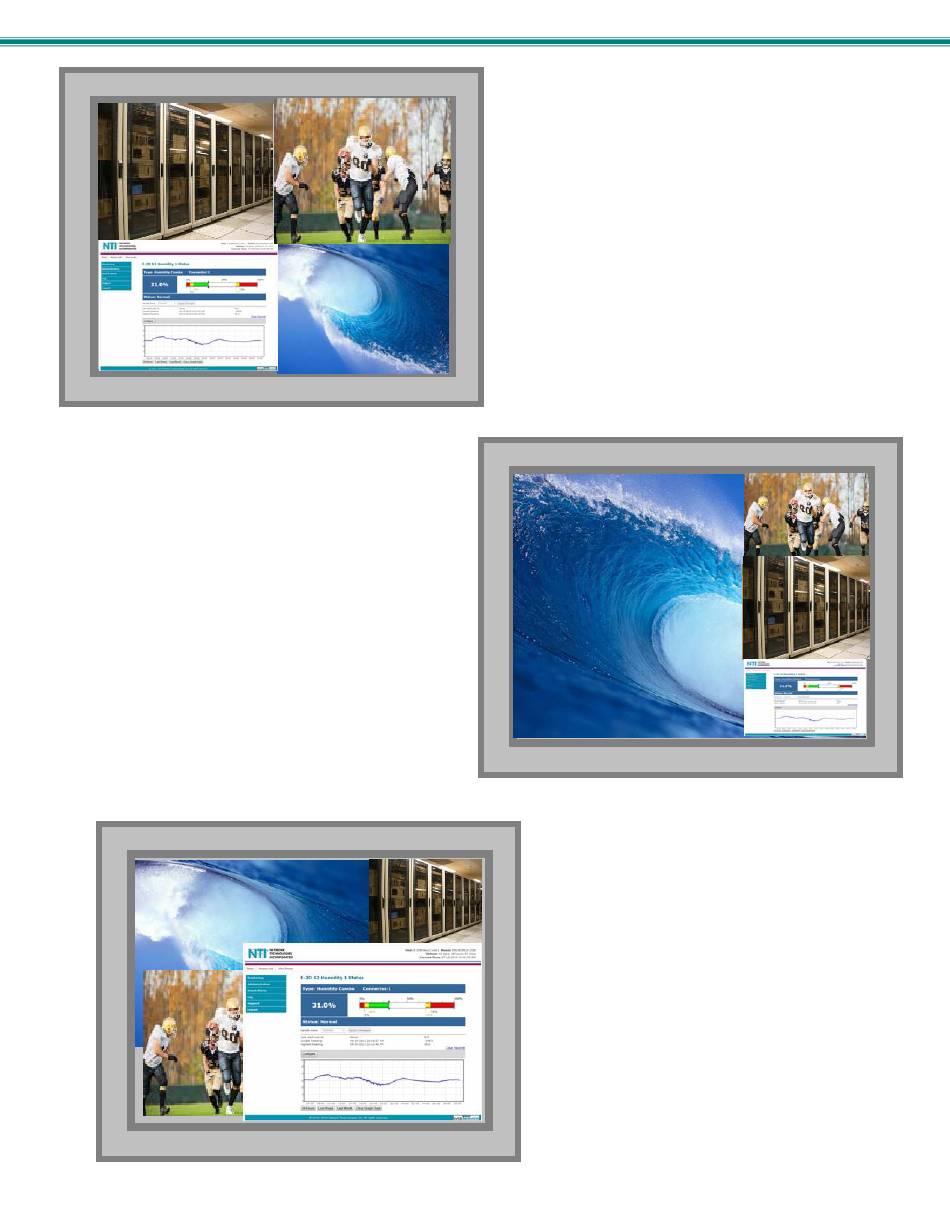

In PIP mode (right) , either 2, 3 or all 4 video sources can be
displayed, with the active source being displayed in its
entirety on the full screen and the remaining selected
images at a reduced resolution for simultaneous viewing.
The position of the reduced images can be configured for
preferred viewing. The maximum output resolution is 1080p
in PIP mode.
In CUSTOM mode (below) the 4 video sources can be
placed where ever you want, at what ever size you want.
The amount of each source that is viewed is determined by
your configuration. The maximum output resolution
is 1080p in Custom mode.
In QUAD screen mode, all four video sources share the screen
equally. Each video source is displayed completely. The
maximum output resolution is 4K in Quad mode.
