Reversible Mounting Assembly; Figure 7- Assembly Method For Splitmux With Cables Facing Forward; Figure 8- Assembled Splitmux-4K-4Rt-2R - NTI SPLITMUX-USB4K-4RT Installation And Operation Manual

Quad screen 4k multiviewer
Hide thumbs Also See for SPLITMUX-USB4K-4RT:
Table of Contents

Advertisement

SPLITMUX Quad Screen 4K Multiviewer

Reversible Mounting Assembly

If the SPLITMUXs will have the cable connections facing the front of the rack, then two more ear brackets will need to be installed
to the rear corners of the cases that will be closest to each other.
(Install these before attaching the connector plate to the front.)
Once the ear brackets are applied, the ears and connector plates can be attached.

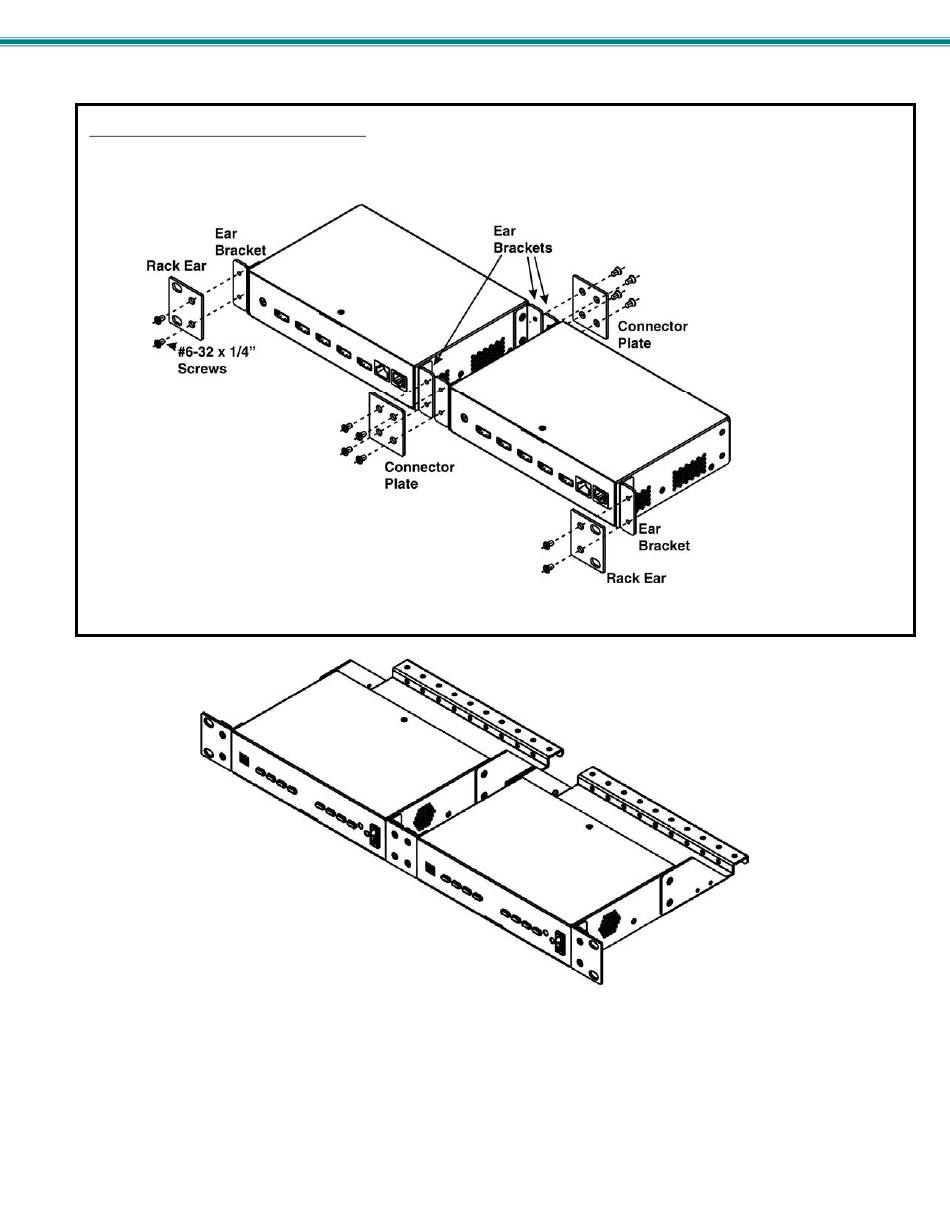

Figure 7- Assembly method for SPLITMUX with cables facing forward

Figure 8- Assembled SPLITMUX-4K-4RT-2R

3. Tighten all screws securely.
The SPLITMUX is ready for mounting.
4. Install 4 cage nuts (provided) to the rack in locations that line up with the holes in the mounting ears on the SPLITMUX
assembly.
5. Secure the SPLITMUX to the rack using the four #10-32x3/4" screws provided. Be sure to tighten all mounting screws
securely.
Note: Do not block vents in the SPLITMUX case.
Be sure to enable adequate airflow in front of and behind the
SPLITMUX.
