SPLITMUX Quad Screen 4K Multiviewer

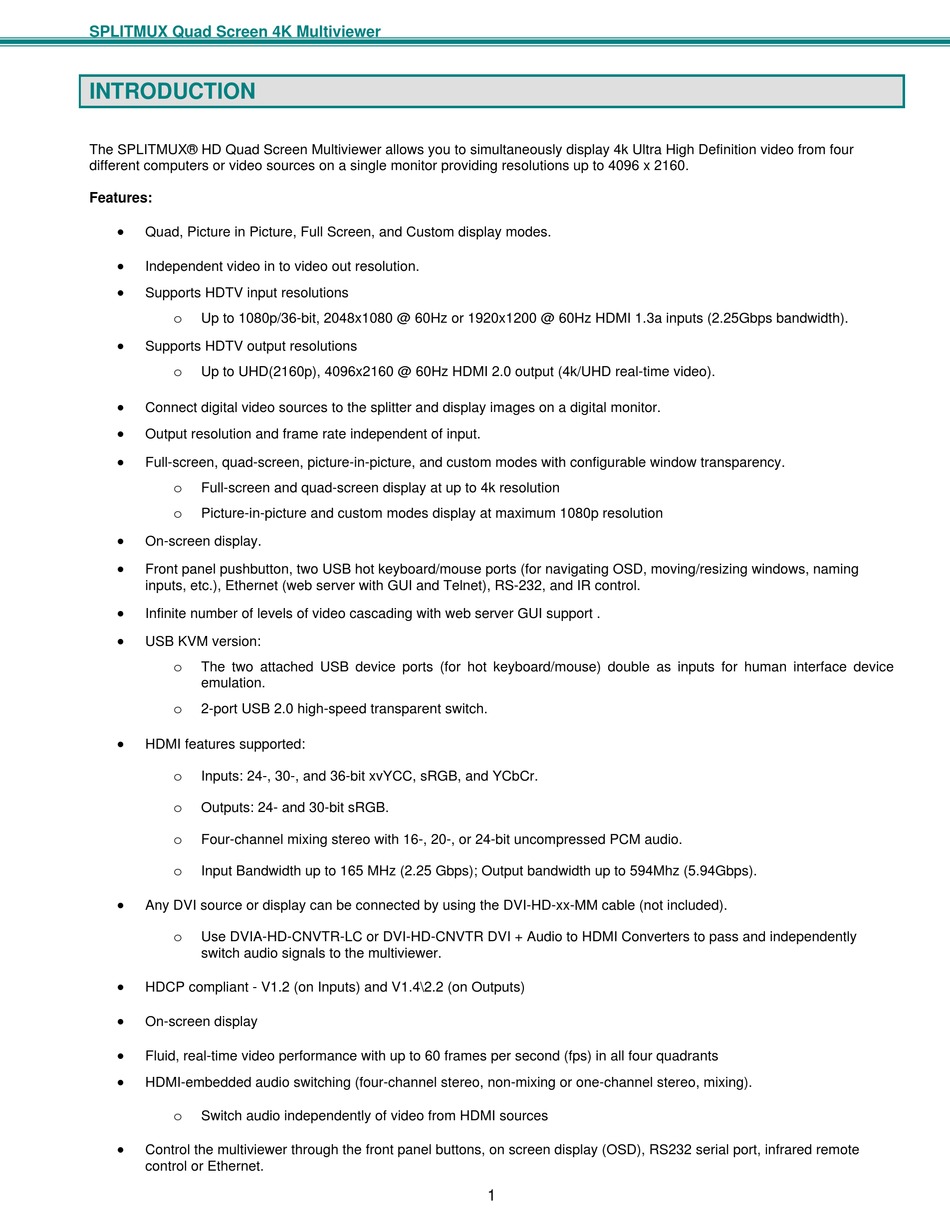

INTRODUCTION

The SPLITMUX® HD Quad Screen Multiviewer allows you to simultaneously display 4k Ultra High Definition video from four
different computers or video sources on a single monitor providing resolutions up to 4096 x 2160.
Features:

Quad, Picture in Picture, Full Screen, and Custom display modes.

Independent video in to video out resolution.

Supports HDTV input resolutions
o Up to 1080p/36-bit, 2048x1080 @ 60Hz or 1920x1200 @ 60Hz HDMI 1.3a inputs (2.25Gbps bandwidth).

Supports HDTV output resolutions
o Up to UHD(2160p), 4096x2160 @ 60Hz HDMI 2.0 output (4k/UHD real-time video).

Connect digital video sources to the splitter and display images on a digital monitor.

Output resolution and frame rate independent of input.

Full-screen, quad-screen, picture-in-picture, and custom modes with configurable window transparency.
o Full-screen and quad-screen display at up to 4k resolution
Picture-in-picture and custom modes display at maximum 1080p resolution
o

On-screen display.

Front panel pushbutton, two USB hot keyboard/mouse ports (for navigating OSD, moving/resizing windows, naming
inputs, etc.), Ethernet (web server with GUI and Telnet), RS-232, and IR control.

Infinite number of levels of video cascading with web server GUI support .

USB KVM version:
The two attached USB device ports (for hot keyboard/mouse) double as inputs for human interface device
o
emulation.
o 2-port USB 2.0 high-speed transparent switch.

HDMI features supported:
o Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
o Outputs: 24- and 30-bit sRGB.
o Four-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
o Input Bandwidth up to 165 MHz (2.25 Gbps); Output bandwidth up to 594Mhz (5.94Gbps).

Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
Use DVIA-HD-CNVTR-LC or DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently
o
switch audio signals to the multiviewer.

HDCP compliant - V1.2 (on Inputs) and V1.4\2.2 (on Outputs)

On-screen display

Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants

HDMI-embedded audio switching (four-channel stereo, non-mixing or one-channel stereo, mixing).
o Switch audio independently of video from HDMI sources

Control the multiviewer through the front panel buttons, on screen display (OSD), RS232 serial port, infrared remote
control or Ethernet.
1
