Administration- Output Settings; Figure 22- Output Settings - NTI SPLITMUX-USB4K-4RT Installation And Operation Manual

SPLITMUX Quad Screen 4K Multiviewer

Administration- Output Settings

Indicates no audio
at source
Video Output Configuration
Output Port Name
Output resolution
Note: When the Output resolution is set to "Auto", your SPLITMUX will automatically sense the native resolution of your
monitor and set the output resolution to that when powering ON the SPLITMUX.
Colors show input
volume from source
Arrows indicate output
volume through SPLITMUX

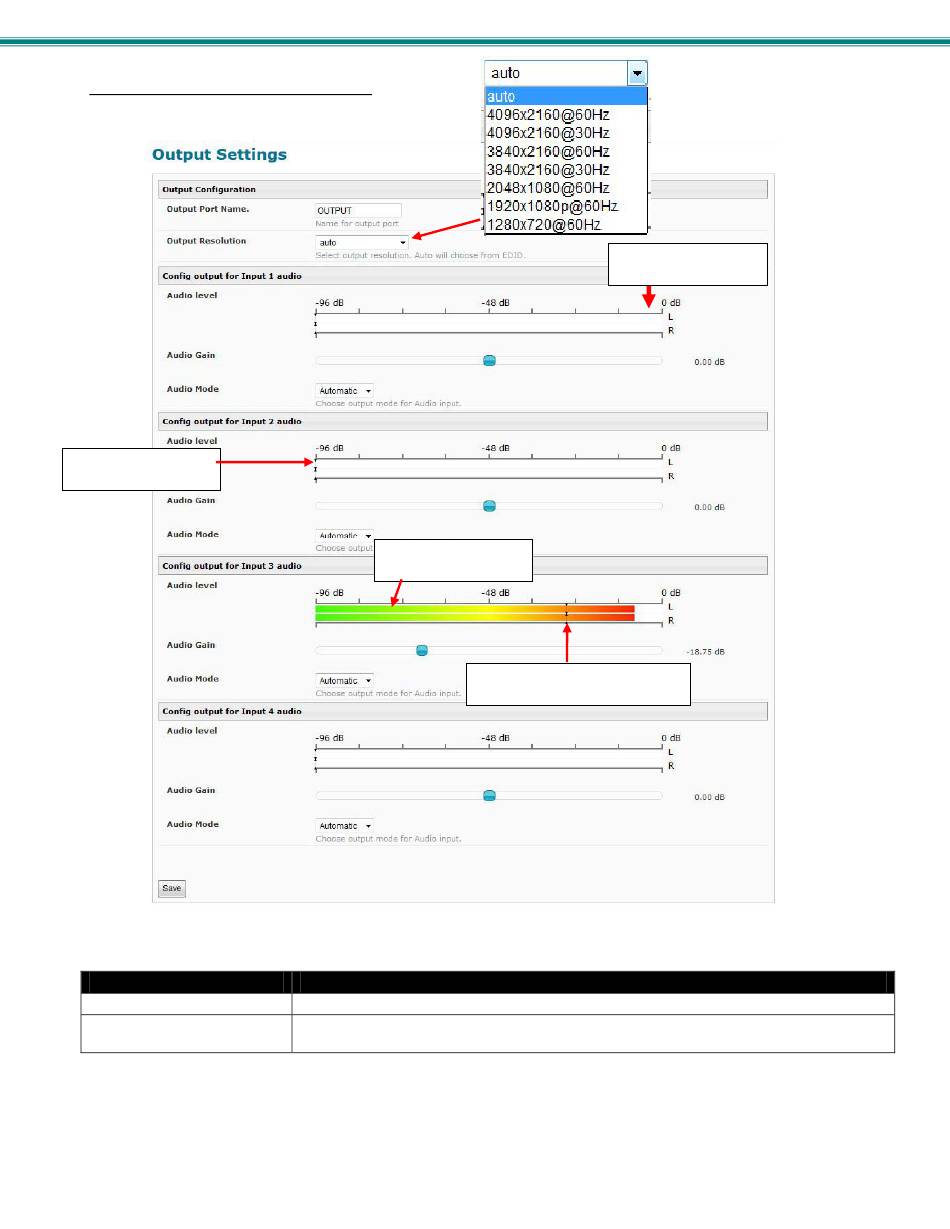

Figure 22- Output Settings

Description
Enter a port name to associate with the display
Select the output resolution to send to the display or select "Auto" to have it choose from the
EDID table.
Maximum
recommended level
