- Page 1 ® SPLITMUX Series SPLITMUX-4K6GB-4LC HDMI 4x1 Multi-Viewer Installation and Operating Manual...
-
Page 2: Materials Supplied
INTRODUCTION The SPLITMUX-4K6GB-4LC HDMI 4x1 Multi-viewer supports four UHD individual screen segments with seamless switching. The multi-viewer can display 4 UHD digital video signals on the same screen in a variety of viewing formats with seamless switching. The multi-viewer can be controlled using a panel button or IR control. Features ... -
Page 3: Features And Functions

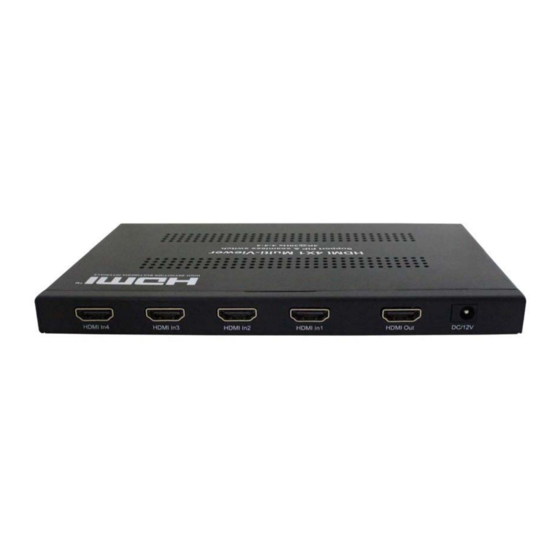

FEATURES AND FUNCTIONS IR Receiver Power LED light Input LED light Audio Switch button Mode Switch button HDMI Inputs(1-4) HDMI Output DC/12V Power Jack... -
Page 4: Remote Control
REMOTE CONTROL Functions: 1- Power/Standby 2- 4K30/1080P Switch 3- Outputs 1-4 4- Audio Switch 5- Mute 6- Video Mode Buttons... -
Page 5: Connection Diagram
CONNECTION DIAGRAM Panel Buttons ---Audio mode switching Press the audio switch button on the front panel and switch between the audio channels as follows: mute 1..Note: The audio will only switch between the channels being displayed. For example: If only one channel is displayed, the button will switch Channelx mute Channelx... -
Page 6: Specifications
480P; 720P; 1080P resolution 30/29.97/24/25Hz 720P; 1080P; 4K/3840x2160 Dimensions (WxDxH) (In.) 7.5x4.45x0.67 (190.4x113x17mm) Power consumption 12VDC, 8W(MAX) See Chart on next page for NTI cables that can be used Transmission Distance Net Weight 484g VESA Resolutions Rate Resolution Supported √ 640x480 √... -
Page 7: Warranty Information
Use NTI HDMI Cables for Input and Output cables Available Cables Supported Resolution 1080p@60Hz 3840x2160@30Hz HD-xx-MM Up to 50 ft Max. 20 ft-Input Where x=3,6,10,15,20, 30 and 50 ft Max. 30 ft- Output HD-xx-MM (Active) 75 & 100 ft on Output...
