SPLITMUX Quad Screen 4K Multiviewer

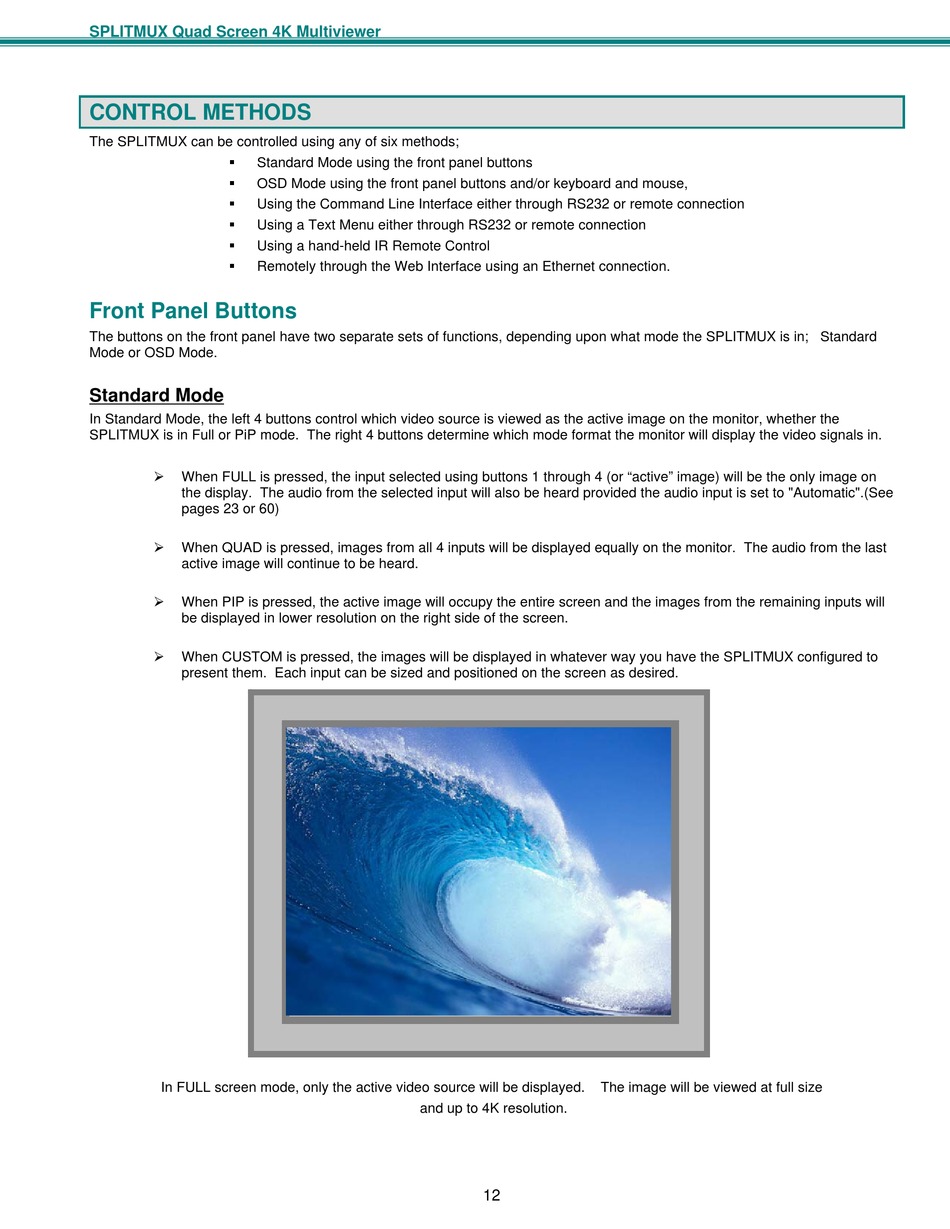

CONTROL METHODS

The SPLITMUX can be controlled using any of six methods;

Standard Mode using the front panel buttons

OSD Mode using the front panel buttons and/or keyboard and mouse,

Using the Command Line Interface either through RS232 or remote connection

Using a Text Menu either through RS232 or remote connection

Using a hand-held IR Remote Control

Remotely through the Web Interface using an Ethernet connection.

Front Panel Buttons

The buttons on the front panel have two separate sets of functions, depending upon what mode the SPLITMUX is in; Standard
Mode or OSD Mode.

Standard Mode

In Standard Mode, the left 4 buttons control which video source is viewed as the active image on the monitor, whether the
SPLITMUX is in Full or PiP mode. The right 4 buttons determine which mode format the monitor will display the video signals in.

When FULL is pressed, the input selected using buttons 1 through 4 (or "active" image) will be the only image on
the display. The audio from the selected input will also be heard provided the audio input is set to "Automatic".(See
pages 23 or 60)

When QUAD is pressed, images from all 4 inputs will be displayed equally on the monitor. The audio from the last
active image will continue to be heard.

When PIP is pressed, the active image will occupy the entire screen and the images from the remaining inputs will
be displayed in lower resolution on the right side of the screen.

When CUSTOM is pressed, the images will be displayed in whatever way you have the SPLITMUX configured to
present them. Each input can be sized and positioned on the screen as desired.
In FULL screen mode, only the active video source will be displayed.
and up to 4K resolution.
12
The image will be viewed at full size
