Administration-Network

The Network Configuration page is where all network settings are entered.
access the SPLITMUX.
Note: When Mode is set to "DHCP With Failover", in the
event the DHCP server is not available, the SPLITMUX
will automatically revert to the Static IP address and
settings assigned.
IP Settings
Mode
IP Address
Subnet Mask
Default Gateway
Primary DNS Address
Alternate DNS Address
Server Settings
Enable Telnet
Allow HTTP access
HTTP Port
HTTPS Port
Web Timeout
Note: If you select "DHCP" for the mode, make sure a DHCP server is running on the network the SPLITMUX is
connected to.

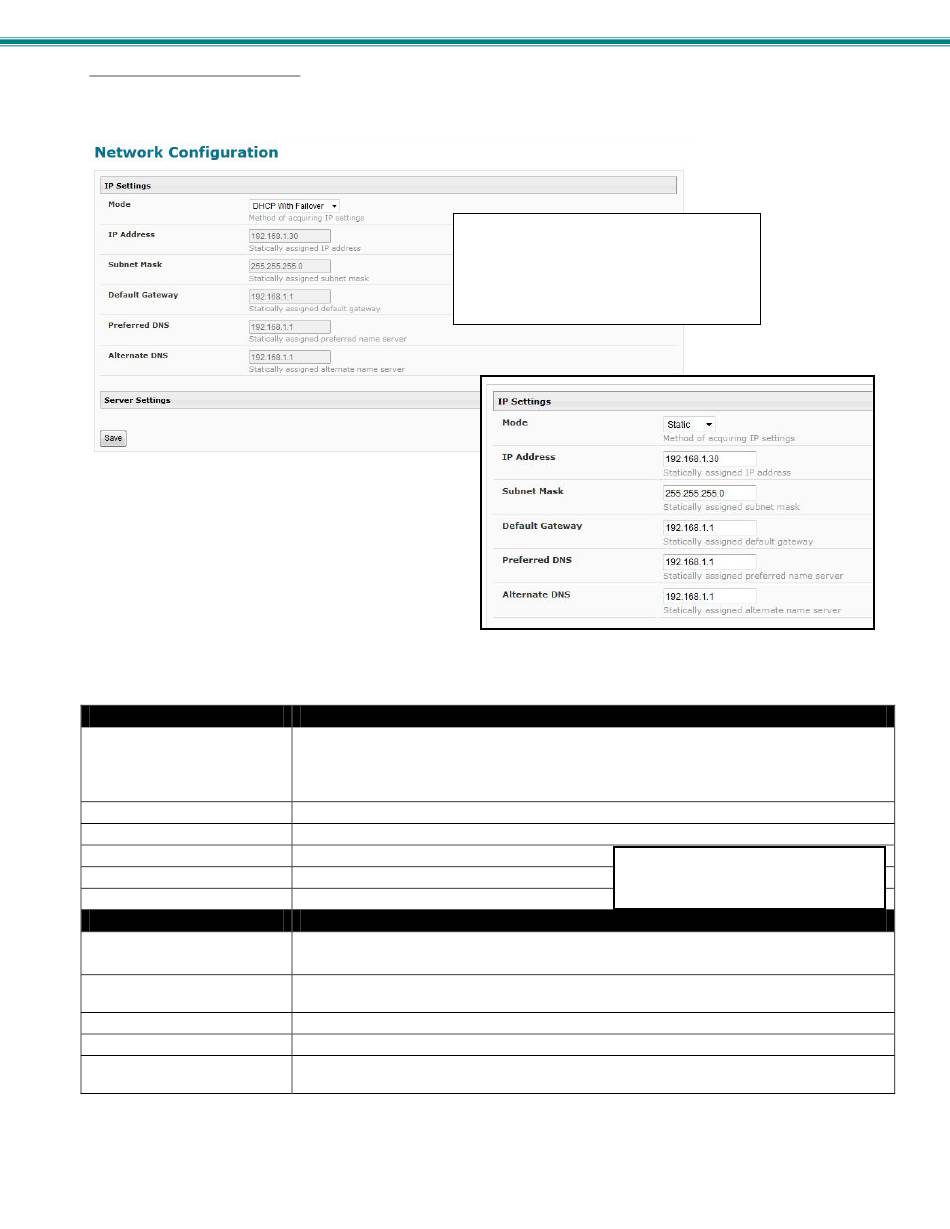

Figure 20- Network Configuration

Description
Select the method for acquiring IP Settings- Static (manual), DHCP with Failover (automatic)
or Disable. Failover enables the SPLITMUX to automatically switch to the Static Mode IP
settings in the event the DHCP server is not available.
(default is DHCP With Failover)
Enter valid IPv4 address (for Static Mode) (default is 192.168.1.30)
Enter valid subnet mask (for Static Mode)
Enter valid default gateway (for Static Mode)
Enter preferred name server (for Static Mode)
Enter alternate name server (for Static Mode)
Description
Place a checkmark in the box to enable access to the SPLITMUX via Telnet
The default is disabled.
Place a checkmark in the box to enable access to the SPLITMUX via standard (non-secure)
HTTP requests (default is enabled)
Port to be used for standard HTTP requests
Port to be used for HTTPS requests
Number of minutes after which idle web users will be logged-out (maximum is 32000, enter 0
to disable this feature)
These settings determine how you will remotely
This IP address is ONLY used if the Mode
is set to "Static" " (settings are grayed-out
when set to DHCP). The System
Information page always shows the
assigned IP address whether the Mode is
set to "Static" or "DHCP". (See page 32)
When in DHCP mode, the Primary
and Alternate DNS addresses are set
by the DHCP server.
20
