NTI SPLITMUX Series Manual

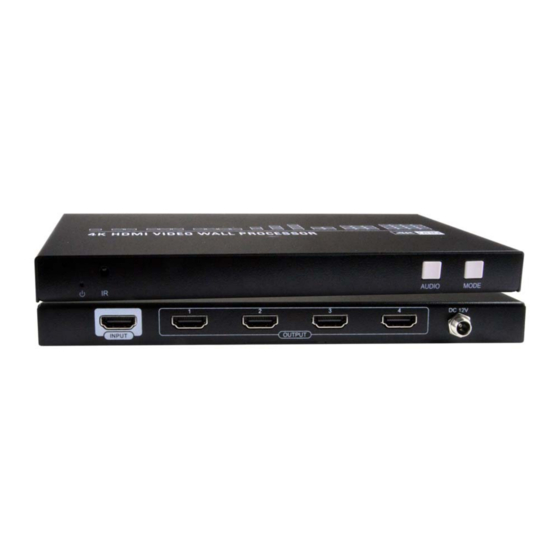

Multi-format hd video wall controller
Hide thumbs Also See for SPLITMUX Series:

Advertisement

Quick Links

Download this manual
®
SPLITMUX
Series
SPLITMUX-VWC-4HD4KI
Multi-Format HD Video Wall Controller
MAN397
Rev Date 02/26/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPLITMUX Series and is the answer not in the manual?

Questions and answers

Related Manuals for NTI SPLITMUX Series

Summary of Contents for NTI SPLITMUX Series

  • Page 1 ® SPLITMUX Series SPLITMUX-VWC-4HD4KI Multi-Format HD Video Wall Controller MAN397 Rev Date 02/26/2021...

  • Page 2: Table Of Contents

    TRADEMARK SPLITMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2021 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

  • Page 3: Introduction

    NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs INTRODUCTION The SPLITMUX® HDM Video Wall Processor displays video from one 4Kx2K 60 Hz HDMI video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall. Additionally, it can be used as a video splitter.

  • Page 4: Features And Functions

    NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs FEATURES AND FUNCTIONS LABEL CONNECTOR/LED DESCRIPTION Power Symbol Illuminates green when power is ON IR-Sensor Receives IR signals from IR Remote AUDIO Button For Muting/ Un-muting the audio output MODE Button...

  • Page 5: Video Wall Modes

    NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs VIDEO WALL MODES The MODE switch or IR Remote can be used to change the way video is sent out through the OUTPUT connections on the SPLITMUX-VWC-4HD4KI. Each press will provide a different result, as described below.
  • Page 6 NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs  2x2:  1x2: 1 row by 2 columns. Two video walls will be created. A and B split the original input video; C and D split another copy of the original input video.
  • Page 7 NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs  1x3: 1 row by 3 columns. A, B, and C split the original input video. D shows the original video.  3x1: 3 rows by 1 column. A, B, and C split the original input video. D shows the original video.
  • Page 8 NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs  1x4: 1 row by 4 columns. A, B, C, and D split the original input video.  4x1: 4 rows by 1 column. A, B, C, and D split the original input video.
  • Page 9 NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs Example of Cascaded Application...

  • Page 10: Technical Specifications

    NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs TECHNICAL SPECIFICATIONS Input: Up to 3840x2160@60Hz Video Resolution Output: 1920x1080@60Hz (fixed for each port) RGB, YCbCr 4:4:4, 4:2:0 Color Format (YCbCr 4:2:2 is not supported.) 24, 30, or 36-bit deep color...

  • Page 11: Warranty Information

    NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...

This manual is also suitable for:

Splitmux-vwc-4hd4ki
