Administration-System; Figure 19- System Configuration - NTI SPLITMUX-USB4K-4RT Installation And Operation Manual

SPLITMUX Quad Screen 4K Multiviewer
System
Network
Input Settings
Output Settings
Mode Settings
Custom Settings
Cascade Settings
User Config
Firmware
System
Information

Administration-System

The System Configuration page provides blocks to enter the switch name and a PIN number that will be used to allow access to
the SPLITMUX from the front panel.
being controlled. Serial port settings for communication with the unit can be entered and the position of the OSD menu on the
monitor is defined. Configuration Backup and Restore provides utility for saving all configuration settings to a file on your PC and
being able to restore them at any time, in addition to being able to restore the SPLITMUX to default settings with the click of a
button.
Fields for applying unit settings (name and keypad PIN), Serial configuration
settings, OSD screen position, and configuration backup and restore options
Fields for providing all the network settings the SPLITMUX and access control
settings
Display configuration settings for each input channel
Video and Audio controls for the output channel
All settings for each operating mode of the SPLITMUX
Settings for customizing the layout of the channels on the display
Settings to control cascading of the video and audio inputs/outputs on other
SPLITMUXs to/from this SPLITMUX
Fields for assigning users, access privileges, passwords, contact settings, and
schedule settings
For updating the firmware of the SPLITMUX when improved software becomes
available.
Provides firmware version, MAC address, network settings and input
connection status
The name will appear on each page in the web interface identifying which SPLITMUX is

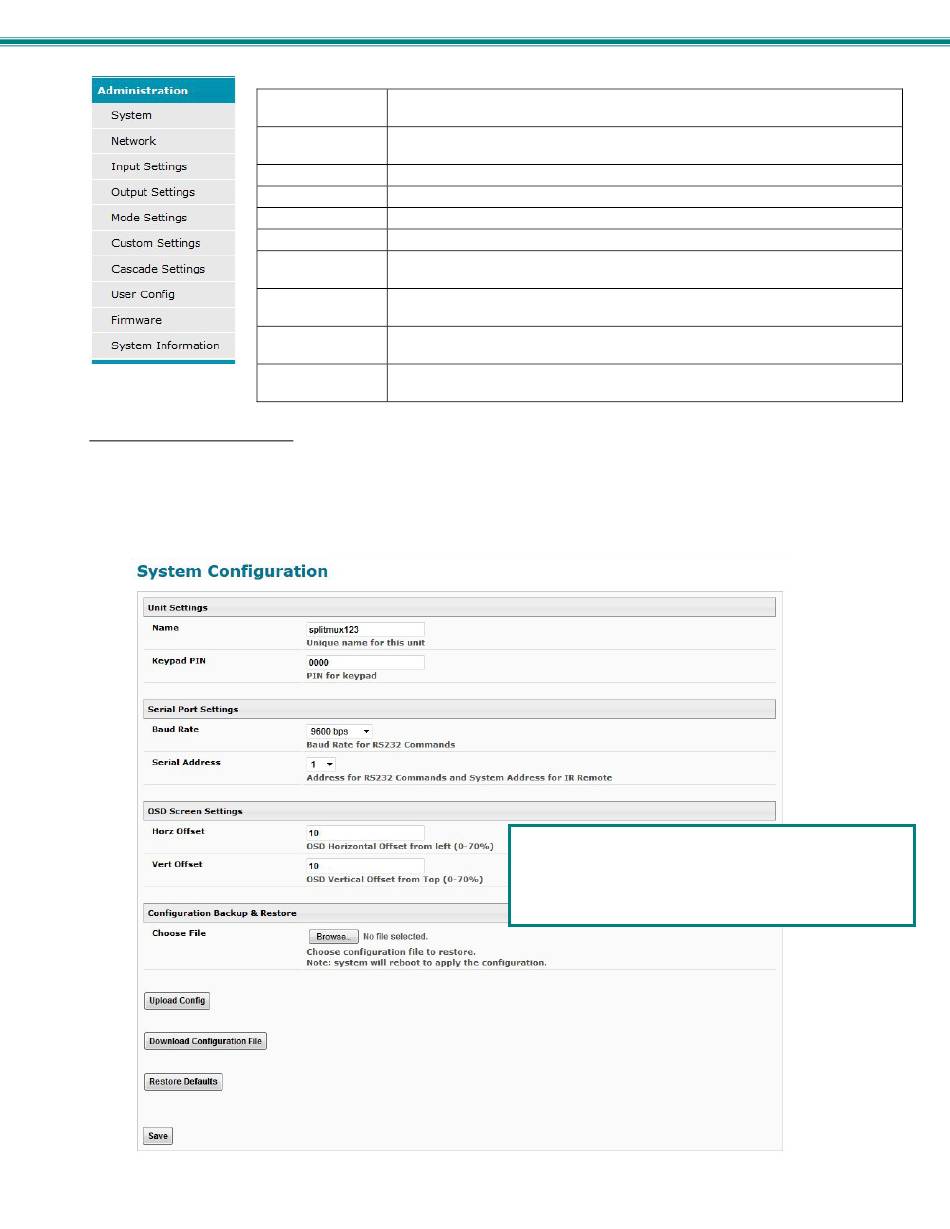

Figure 19- System Configuration

Note: Changing the OSD Screen Settings will only be
effective when the output resolution is set to 1080P or
less. When set above 1080P, the default settings of 10
will take effect, regardless of what these values are
changed to.
