SPLITMUX Quad Screen 4K Multiviewer
Single-SPLITMUX mounting
1. To mount a single SPLITMUX in a rack (SPLITMUX-4K-4RT-R), attach the rack mounting ears to the ear brackets using the
#6-32 x 1/4" screws provided.
2. Install 4 cage nuts (provided) to the rack in locations that line up with the holes in the mounting ears on the SPLITMUX.
3. Secure the SPLITMUX to the rack using the four #10-32x3/4" screws provided. Be sure to tighten all mounting screws
securely.
Note: Do not block power supply vents in the SPLITMUX case.
behind the SPLITMUX.
Tighten all screws securely.

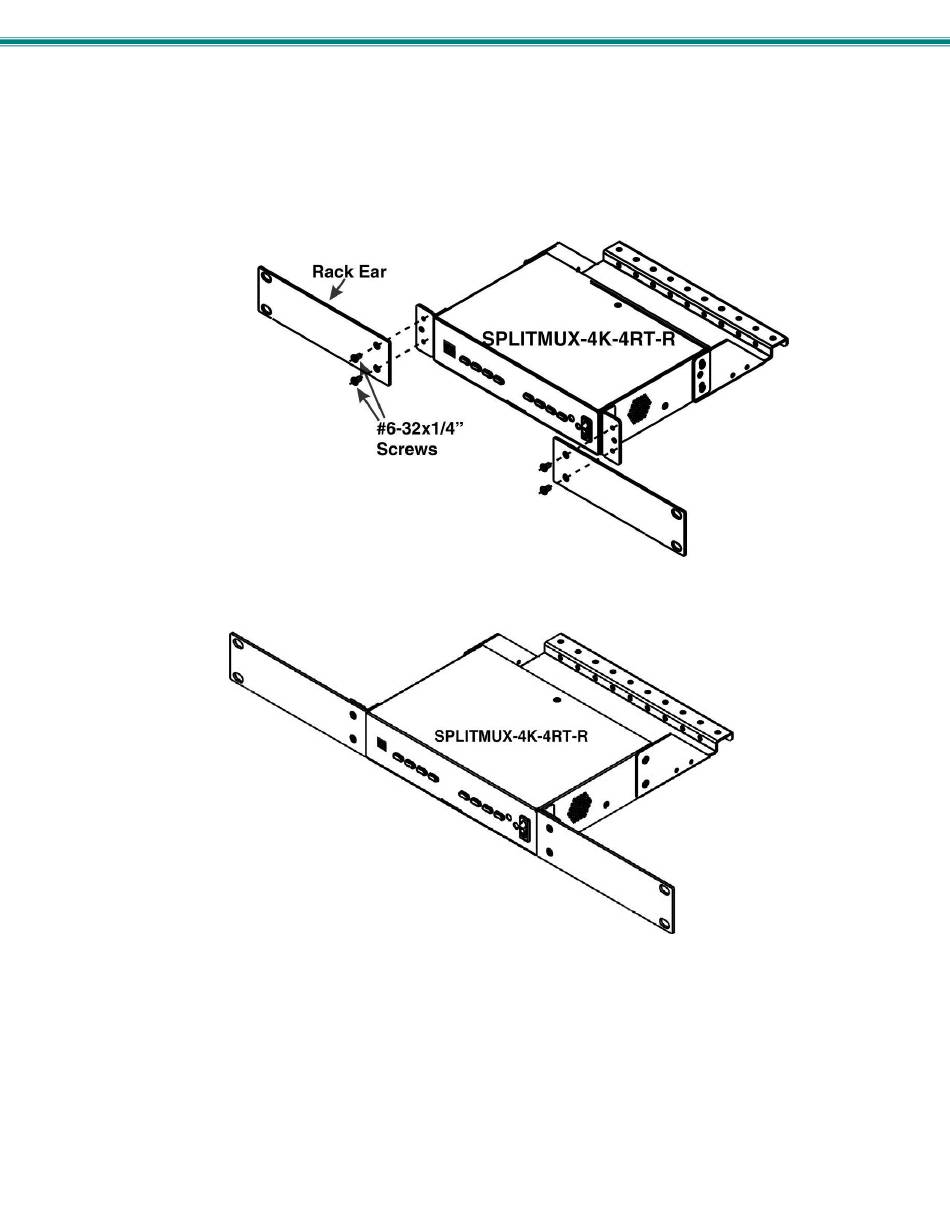

Figure 3- Attach rack ears
Figure 4- Assembled unit, ready to mount in rack
Be sure to enable adequate airflow in front of and
5
