SPLITMUX Quad Screen 4K Multiviewer
INSTALLATION
1. Connect each of the HDMI or DVI video sources to the ports on the SPLITMUX marked "HDMI IN x" (x = 1-4).
2. Connect the display to the port marked "HDMI OUT".
3. Connect the power supply to the power jack and plug it in. In approximately 20 seconds, the LED on the SPLITMUX will
illuminate red (standby).
4. Press the switch on the front to power the SPLITMUX ON. Within 20 more seconds the LED will change from red to green
(ON) and the SPLITMUX will be ready to use.
5. For keyboard and/or mouse control of the OSD menu of the SPLITMUX, connect a USB keyboard and/or mouse to the USB
type A ports labeled "KYBD/MOUSE" on the SPLITMUX.
(SPLITMUX-USB4K-4RT), the keyboard and mouse connected to these ports will also control the keyboard and mouse functions
on any connected PC. (See Figure 10)

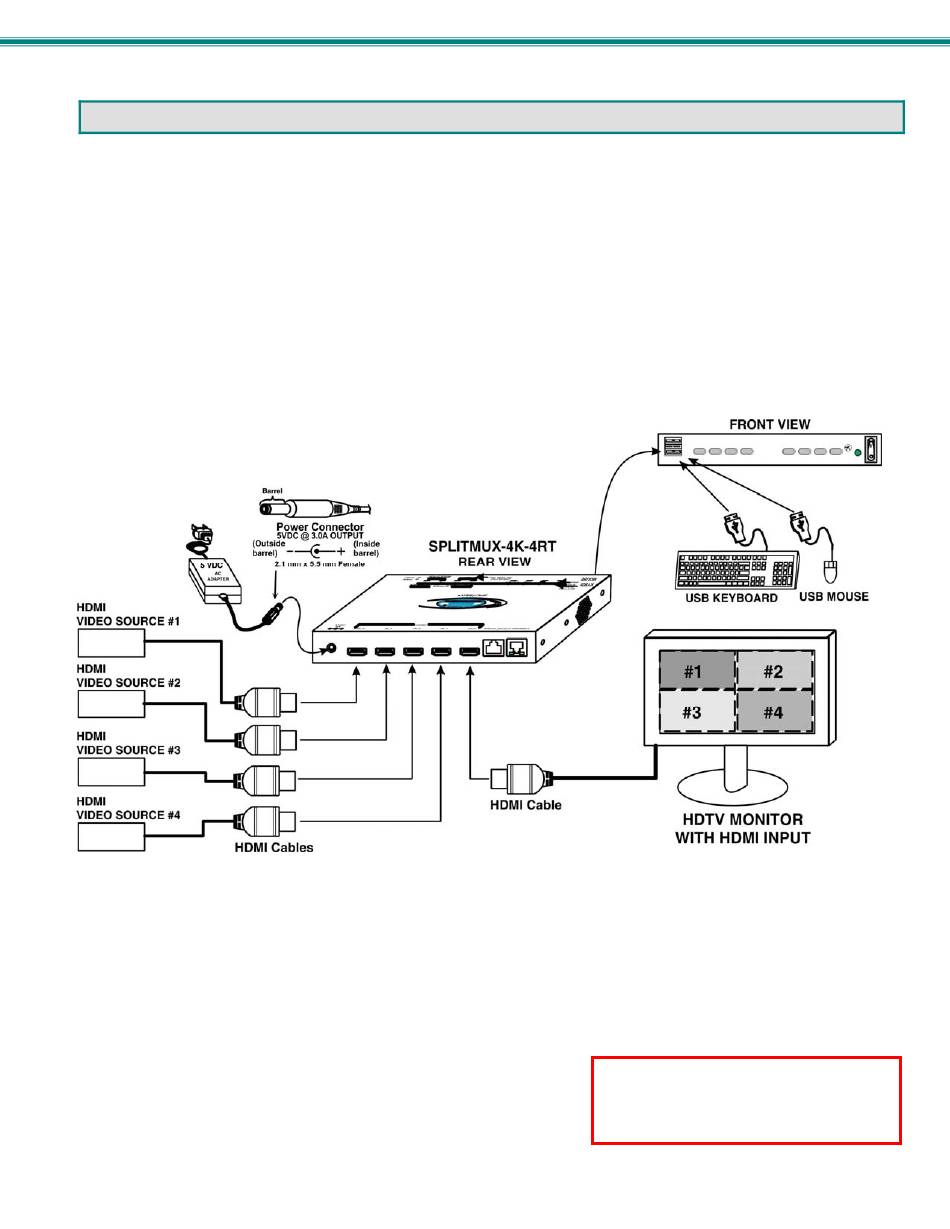

Figure 9- Video Source/Display Connections-SPLITMUX-4K-4RT
On models supporting transparent USB device connection
Note: If the connected display does not
support an HDMI input (typically it will
have at least one HDMI input port), the
display will not be compatible.
8
