SPLITMUX Quad Screen 4K Multiviewer
Dual-SPLITMUX mounting
1. To mount a dual SPLITMUX in a rack (SPLITMUX-4K-4RT-2R), attach the rack ears to the far left side of the left SPLITMUX
and right side of the right SPLITMUX using the #6-32 x 1/4" screws provided.
Then install a connector plate to join the two
SPLITMUXs in the front.

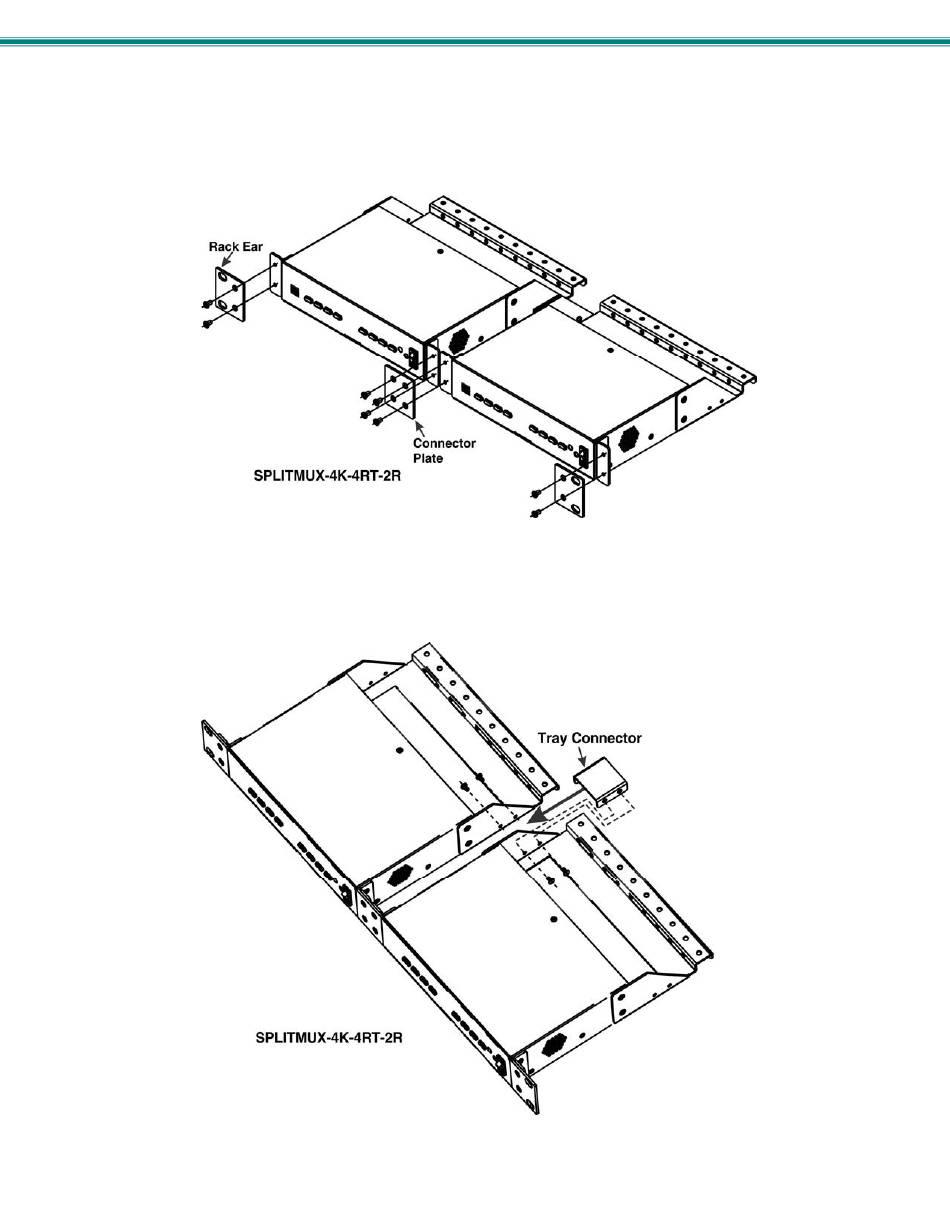

Figure 5- Attach ears and connector plate
2. Install a cable tray connector between the cable trays using 4 more #6-32x1/4" screws.
Figure 6- Attach cable tray connector
6
