4.4.2 Network Diagnostics

Menu (System) > Network > Net Diag

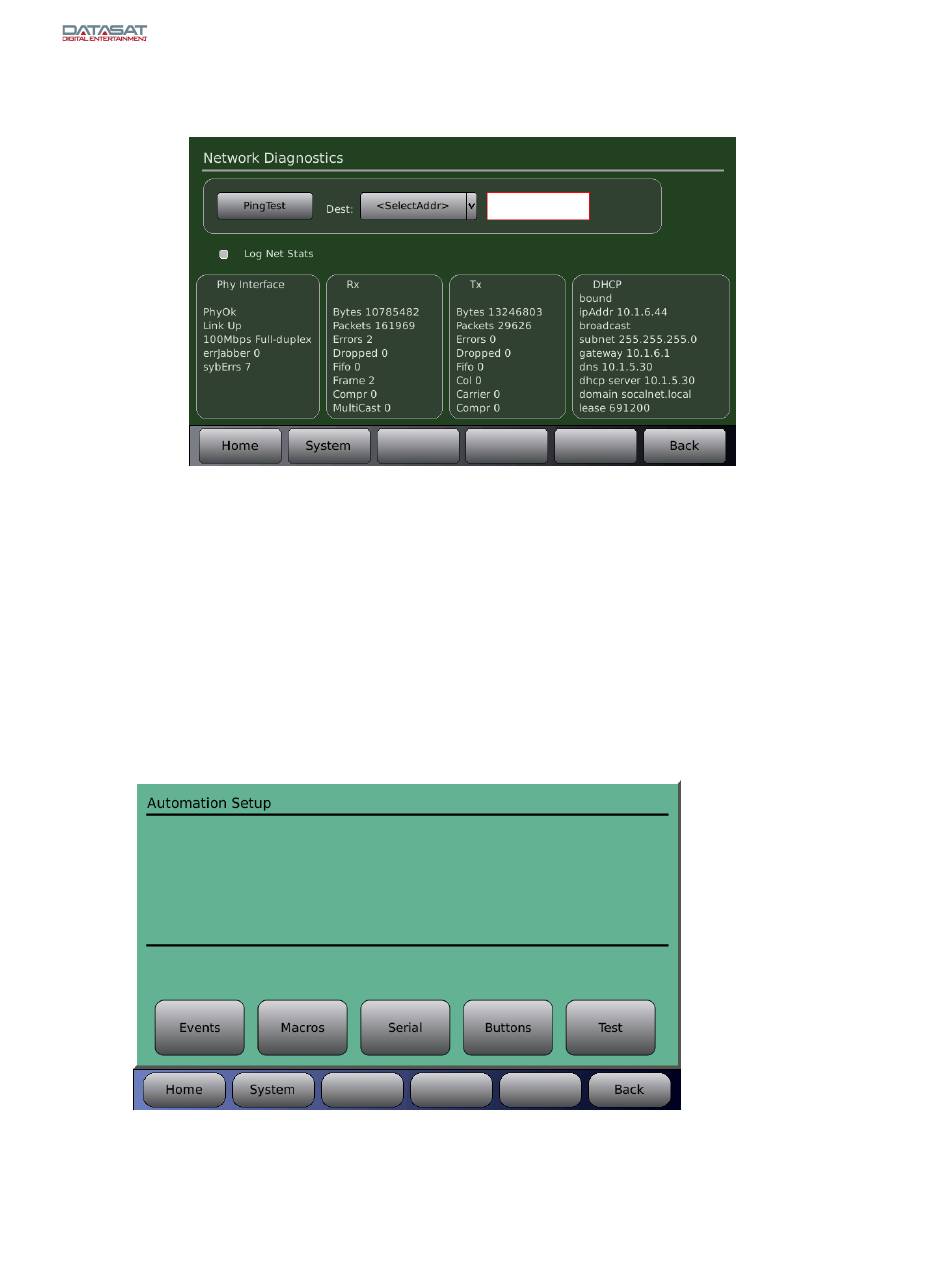

Figure 76. Network Diagnostics Screen
The Network Diagnostics screen shows current network statistics, and may be used for testing
and troubleshooting network connectivity.
Log Net Stats: Saves the current network statistics in a log file. This file can be saved to a
USB stick and then emailed to Datasat Tech Support for help with troubleshooting.
Ping Test: Use for testing connectivity of the AP25 with a server. Select a network device
address from the dropdown menu. If available, the device address should appear in the box to
the right. An address may also be entered here by tapping in the box and bringing up the
keyboard. Press the Ping Test button. If the connection is working this will return a result of
OK, if not the result will be FAIL.
4.5 Automation
Menu (System) > Automation
Figure 77. Automation Screen
The Automation menus provide the ability to add, edit and delete automation events.
Automation events may be single actions, or may be linked to a macro. Events may then be
