VU bars for all output channels associated with the current audio format.

1.4.1 Adjusting the Fader

Adjust the fader volume by using the control knob on the front panel. To mute the fader, touch the Mute
button. The button label will turn red and change to "Muted".
Unmute the AP25 by touching the mute button again, or changing formats. If in the Home Screen,
increasing the fader volume using the control knob will also unmute.

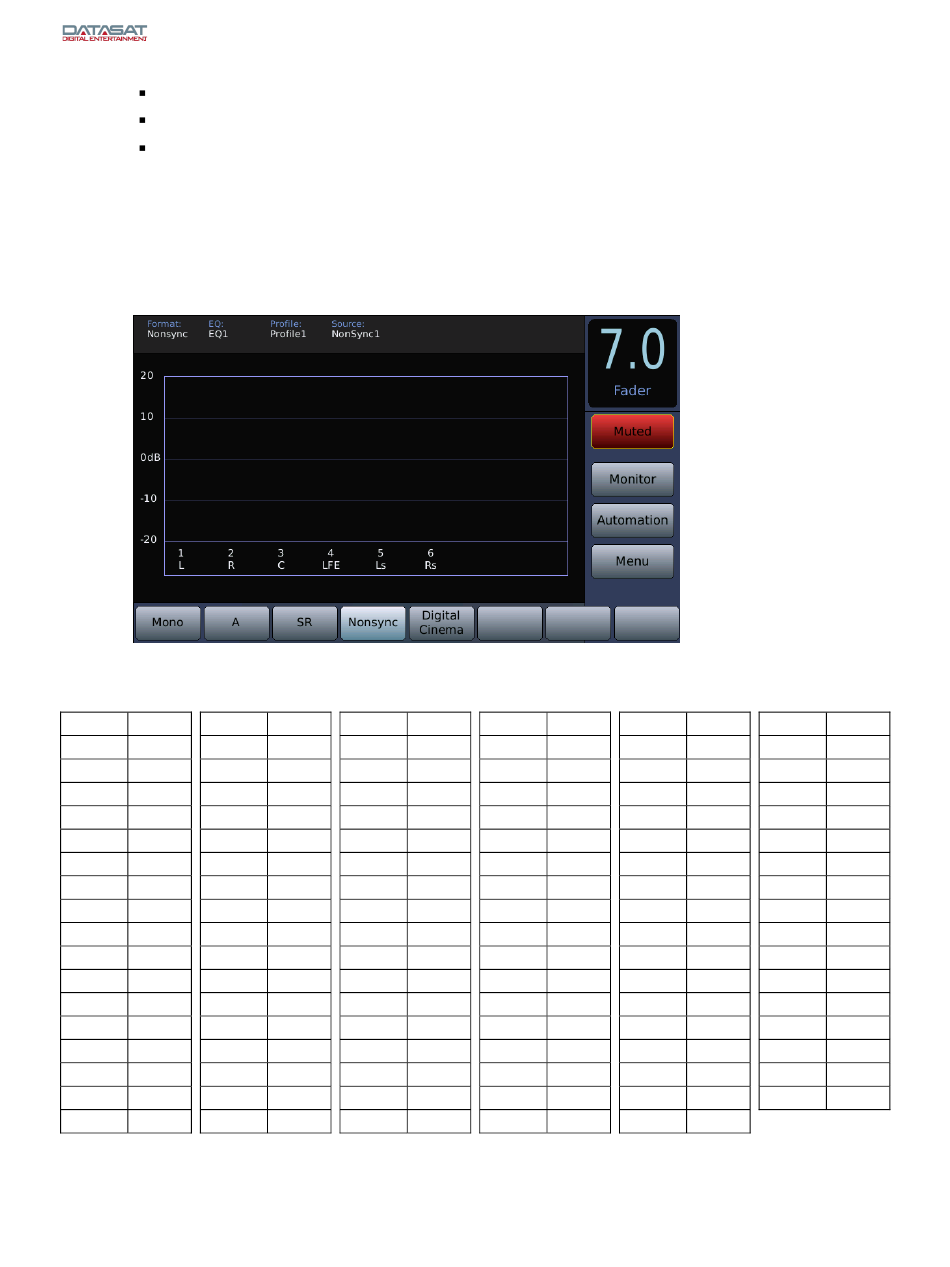

Figure 6. Fader Muted
Fader reference level is 7.0. Table 2 below shows dB relative to the AP25 fader settings.
Fader dB Fader
10.0 15.0 8.3
9.9 14.5 8.2
9.8 14.0 8.1
9.7 13.5 8.0
9.6 13.0 7.9
9.5 12.5 7.8
9.4 12.0 7.7
9.3 11.5 7.6
9.2 11.0 7.5
9.1 10.5 7.4
9.0 10.0 7.3
8.9 9.5 7.2
8.8 9.0 7.1
8.7 8.5 7.0
8.6 8.0 6.9
8.5 7.5 6.8
8.4 7.0 6.7
Table 2: Fader setting referenced to dB
AP25 Installation & Operating Guide
AP25 Installation and Operating Guide
dB Fader dB
6.5 6.6 -2.0
6.0 6.5 -2.5
5.5 6.4 -3.0
5.0 6.3 -3.5
4.5 6.2 -4.0
4.0 6.1 -4.5
3.5 6.0 -5.0
3.0 5.9 -5.5
2.5 5.8 -6.0
2.0 5.7 -6.5
1.5 5.6 -7.0
1.0 5.5 -7.5
0.5 5.4 -8.0
0.0 5.3 -8.5
-0.5 5.2 -9.0
-1.0 5.1 -9.5
-1.5 5.0 -10.0
Fader dB Fader
4.9 -10.5 3.2
4.8 -11.0 3.1
4.7 -11.5 3.0
4.6 -12.0 2.9
4.5 -12.5 2.8
4.4 -13.0 2.7
4.3 -13.5 2.6
4.2 -14.0 2.5
4.1 -14.5 2.4
4.0 -15.0 2.3
3.9 -15.5 2.2
3.8 -16.0 2.1
3.7 -16.5 2.0
3.6 -17.0 1.9
3.5 -17.5 1.8
3.4 -18.0 1.7
3.3 -18.5 1.6
Document # 9301H79500 Ver. 1.00
Page 18
dB Fader dB
-20.0 1.5 -54.0
-22.0 1.4 -56.0
-24.0 1.3 -58.0
-26.0 1.2 -60.0
-28.0 1.1 -62.0
-30.0 1.0 -64.0
-32.0 0.9 -66.0
-34.0 0.8 -68.0
-36.0 0.7 -70.0
-38.0 0.6 -72.0
-40.0 0.5 -74.0
-42.0 0.4 -76.0
-44.0 0.3 -78.0
-46.0 0.2 -80.0
-48.0 0.1 -82.0
-50.0 0.0 -84.0
-52.0
