4.3.6 Format Options

The Format Options screen allows changes to Global Delay, Extended Surround Options, Nonsync Level
and Routing, Mic Level and Routing, Matrix and Routing, Digital Cinema Format Options, Decoder
Setup and Film Options (if the optional Optical Film card (H338) is installed – see appendix F). It also
provides feedback on the current Audio format.
The options on this screen will change according to the currently selected input source. Figure 44 below
shows the options available when the input source is Nonsync.
Menu (System) > Formats > Format Options

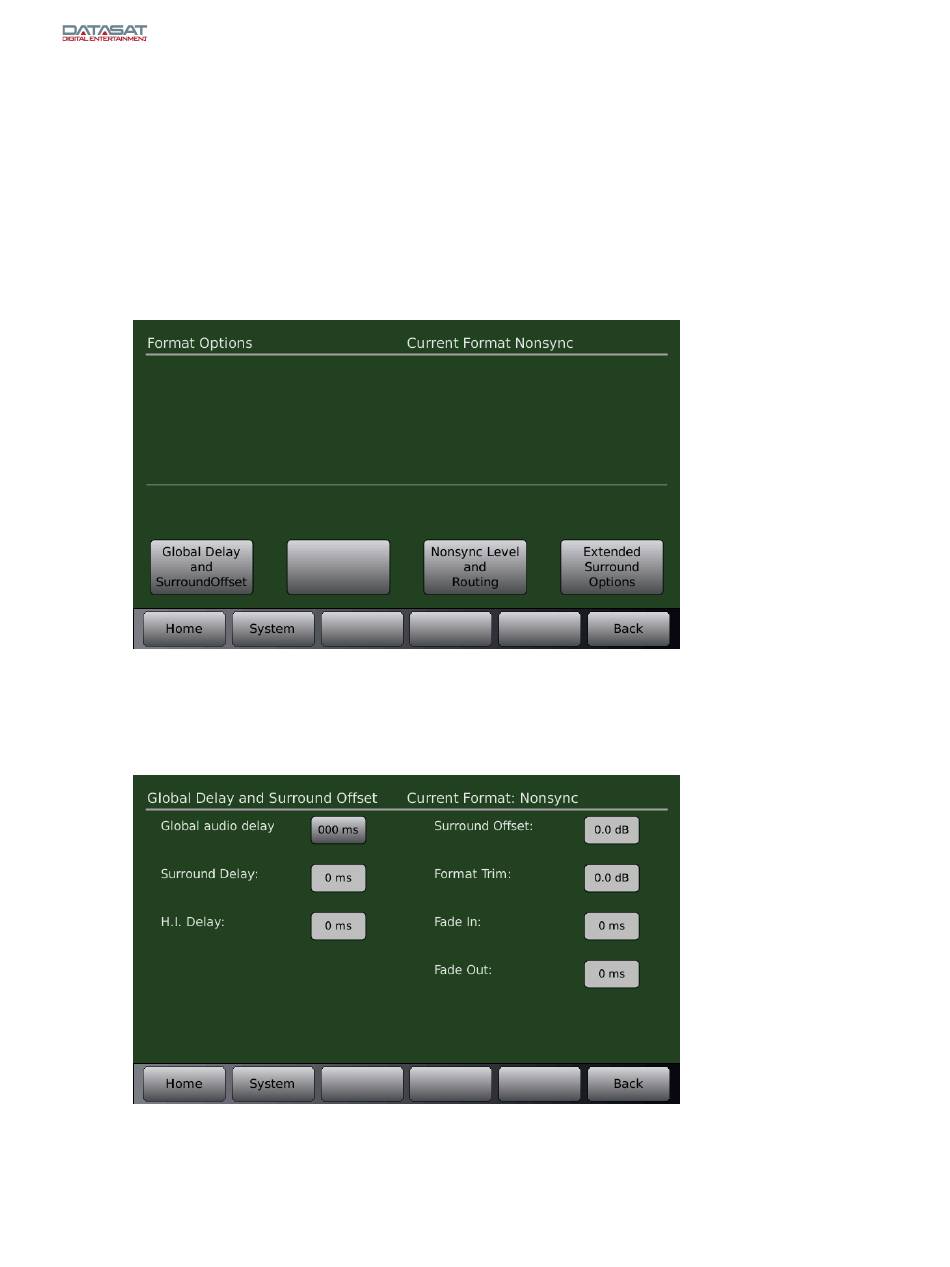

Figure 44. Format Options Screen
4.3.6.1 Global Delay and Surround Offset
This screen is available for all input sources.
Menu (System) > Formats > Format Options > Global Delay and Surround Offset
Figure 45. Global Delay and Surround Offset
