4.2.1 Assign Fader Level to a Format
To assign a specific fader level to a format button, do the following:
1. Select Menu (System), then in the Fader Control pulldown menu select format. Return
to the main screen by selecting Home button. Fmt Fdr (format fader) will now appear on
the home screen.

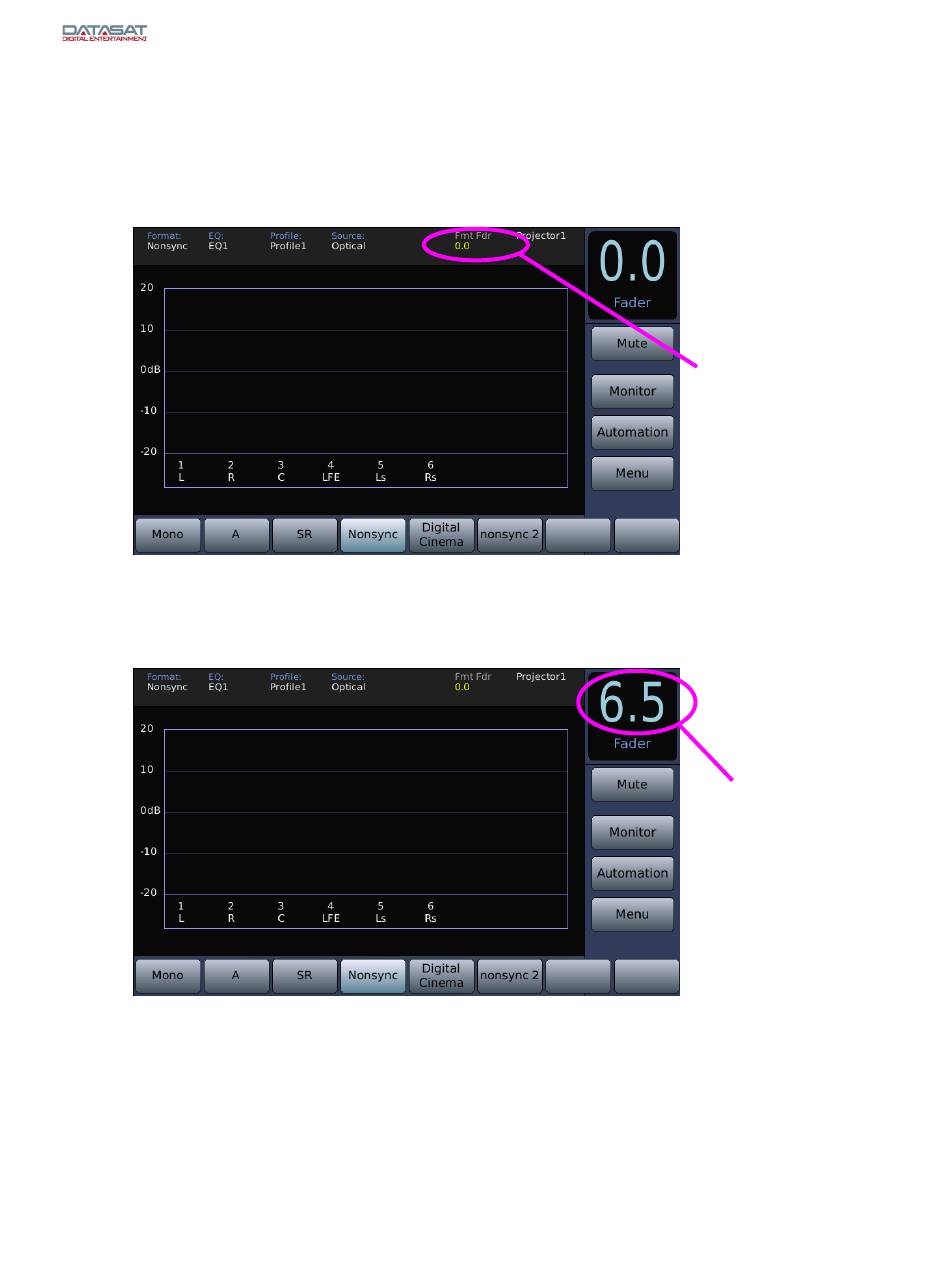

Figure 24. Setting Fader Level for a Format (1 of 3)
2. Next, select the desired format button, in this example we will use Non Sync.
3. Next, adjust the fader volume to the desired level using the fader knob. The screen should
appear as shown below.
Figure 25. Setting Fader Level for a Format (2 of 3)
AP25 Installation & Operating Guide
AP25 Installation and Operating Guide
Fmt Fdr with
fader level set at
0.0
Fader is
now set at
6.5
