As shown in Figure 70, set output channel
channel is still set to
Set the high pass filter to the high range driver lower crossover frequency, 1200Hz.
Set the slope to 24dB/octave.
Set the Crossover ID to
We also set the low pass filter to 1.2kHz, the upper range of the speaker, for added protection
although it was not specified as necessary by the manufacturer.
The main fader level adjust will change the level on the input channel, in this example = left
channel. When adjusting the fader, all output channels assigned to an input channel will
change by the same amount.
The output channel trim can be used to lower an individual output channel.

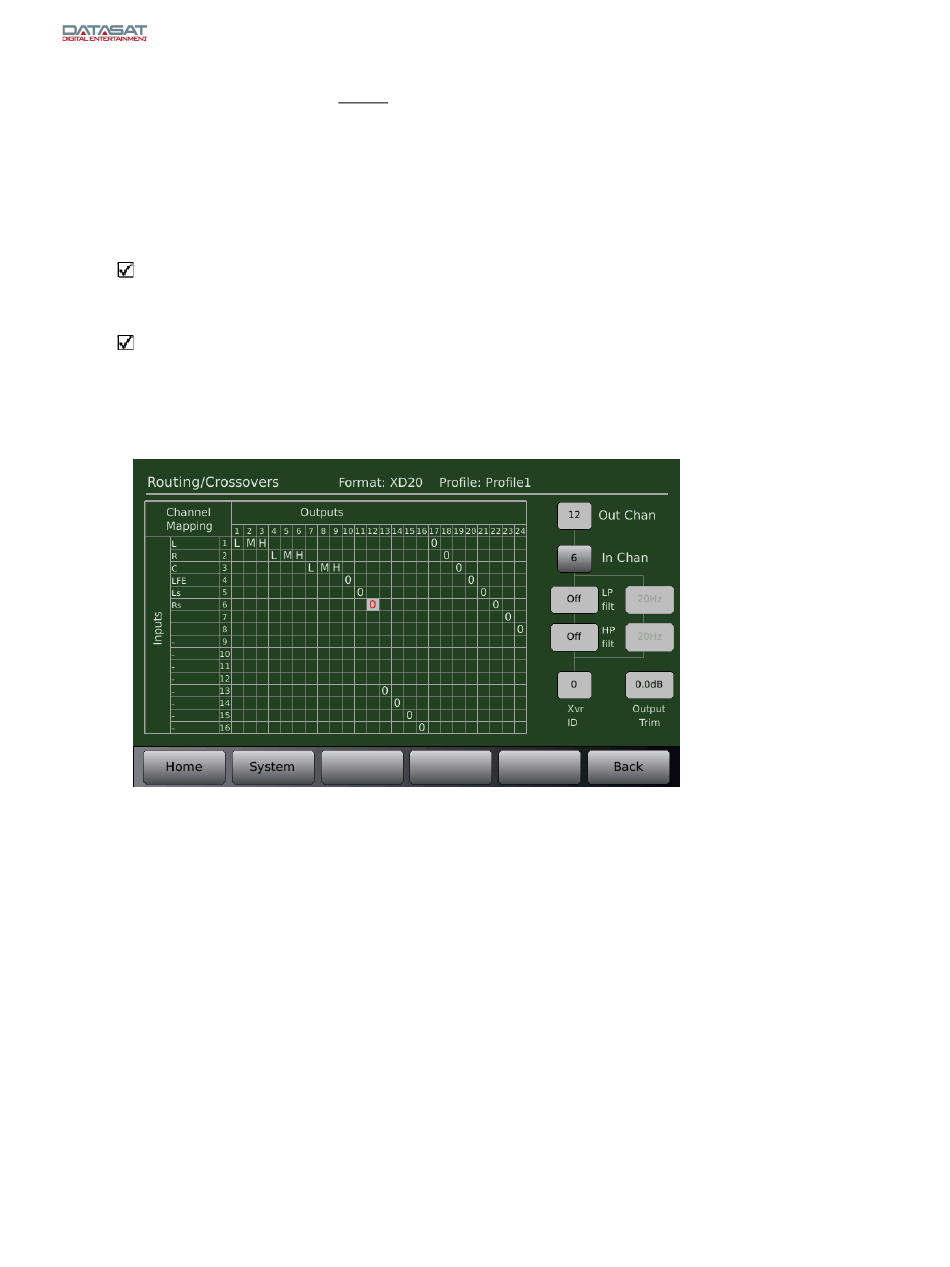

Figure 71 below shows a typical example of a completed routing/crossover setup in which the
screen channels (left, right, center) have been tri-amped. The LFE, LS and RS channels have
been routed to output channels 10, 11, and 12 (no low or high pass filters have been applied to
these channels).
Figure 71. Example – Crossover Setup
AP25 Installation & Operating Guide
AP25 Installation and Operating Guide
3
1 (or left channel, remember, left = channel 1 in the example).
H to identify it as the high frequency output for channel three (3). Note:
for the high range driver. Make sure the input
Document # 9301H79500 Ver. 1.00
Page 91
