Mic Input can be sent to:
Screen Center
Screen channels (Left and Right)
Surround channels (Left and Right Surrounds)
Screen and surround (Left and Right, Left and Right Surrounds)
4.3.6.5 Digital Cinema Format Options
This screen is available for Digital ch 1-8, Digital ch 1-16 and Digital 9-16 input sources only.
Menu (System) > Formats > Format Options > Digital Cinema Format Options

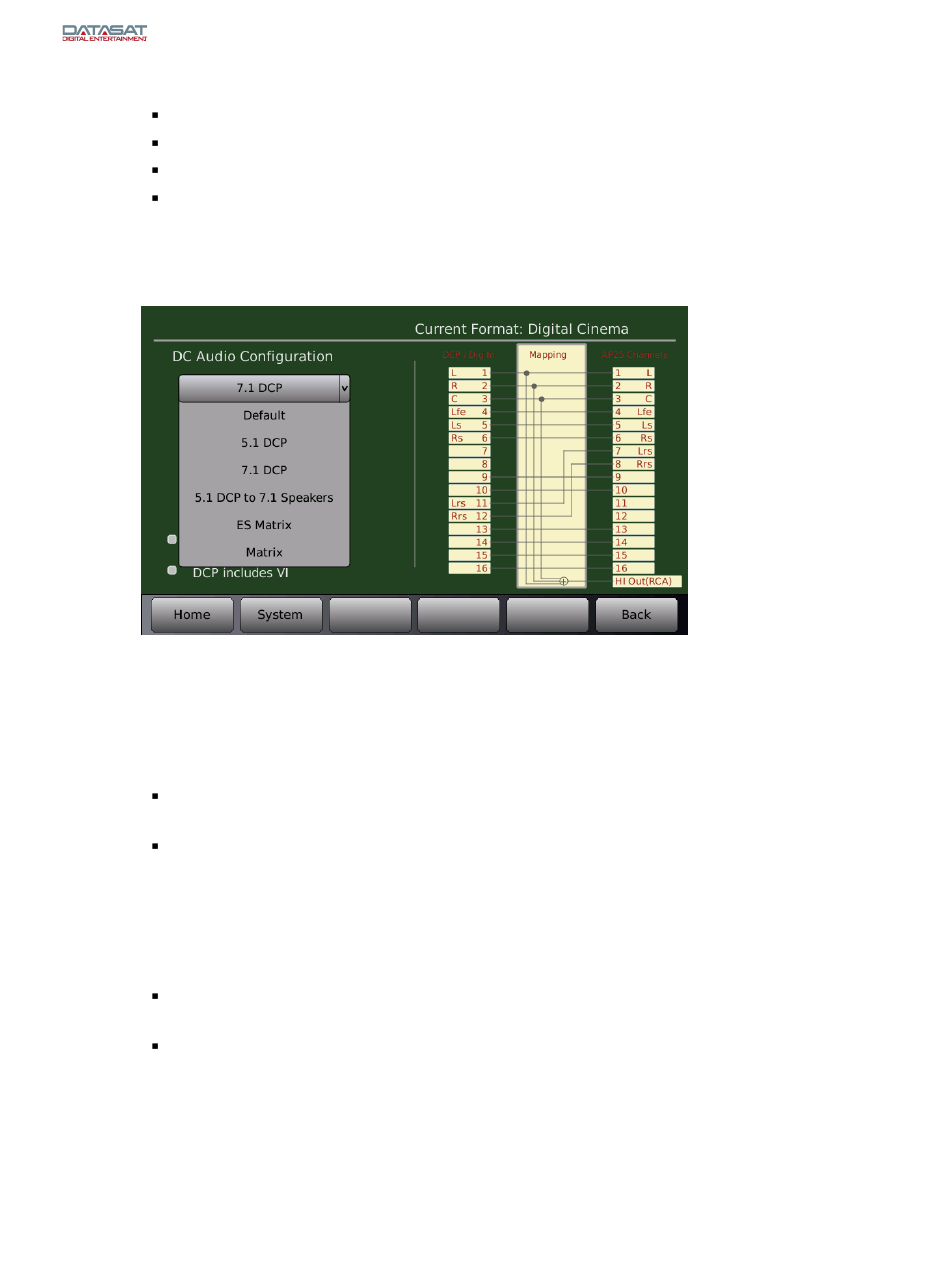

Figure 52. Digital Cinema Format Options
Default - Digital In mapping is straight through to the AP25 channels. The HI Out on the AP25
RCA jack is mixed from L, R, C inputs.
5.1 DCP – Digital In mapping is straight through to the AP25 channels Out.
DCP includes HI – Select to route DCP HI In on pin 7 to the AP25 RCA jack. If disabled,
HI Out is mixed from DCP In L, R, C.
DCP includes VI - Select the DCP VI-N on pin 8 to AP25 channel 16. This channel
becomes a fixed level, not affected by fader value. Channel 15 becomes unavailable.
7.1 DCP – Select when playing a 7.1 DS DCP in which the left/right back surround channels
come in on channels 11 and 12. When selected the back surround channels are routed to the
AP25 channels 7 and 8. The AP25 channels 11 and 12 are not available with this option. Input
channels 7 and 8 are not routed unless one of the following options is selected:
DCP includes HI – Select to route DCP HI In on pin 7 to the AP25 RCA jack. If
disabled, HI Out is mixed from DCP In L, R, C.
DCP includes VI – Select to route DCP VI-N on pin 8 to AP25 channel 16. This channel
becomes a fixed level, not affected by the fader value. Channel 15 becomes unavailable.
5.1 DCP to 7.1 Speakers – Select to play 5.1 DCP in a theater set for 7.1 playback. The side
surround channels (5 and 6) are copied to the back surround channels (7 and 8). The undefined
channels 9-16 are mapped directly to the AP25 channels 9-16.
