Navigating through the Menus

Since the AP25 is equipped with a touch screen display, you can navigate easily through the menus by
touching any button with your finger. A non-abrasive stylus, that will not scratch the screen, may also be
used.
Figure 4 below shows the Operations menu selections on the Home screen.
Home (Main)
Figure 4. Operations Menus

1.4 The Home Screen

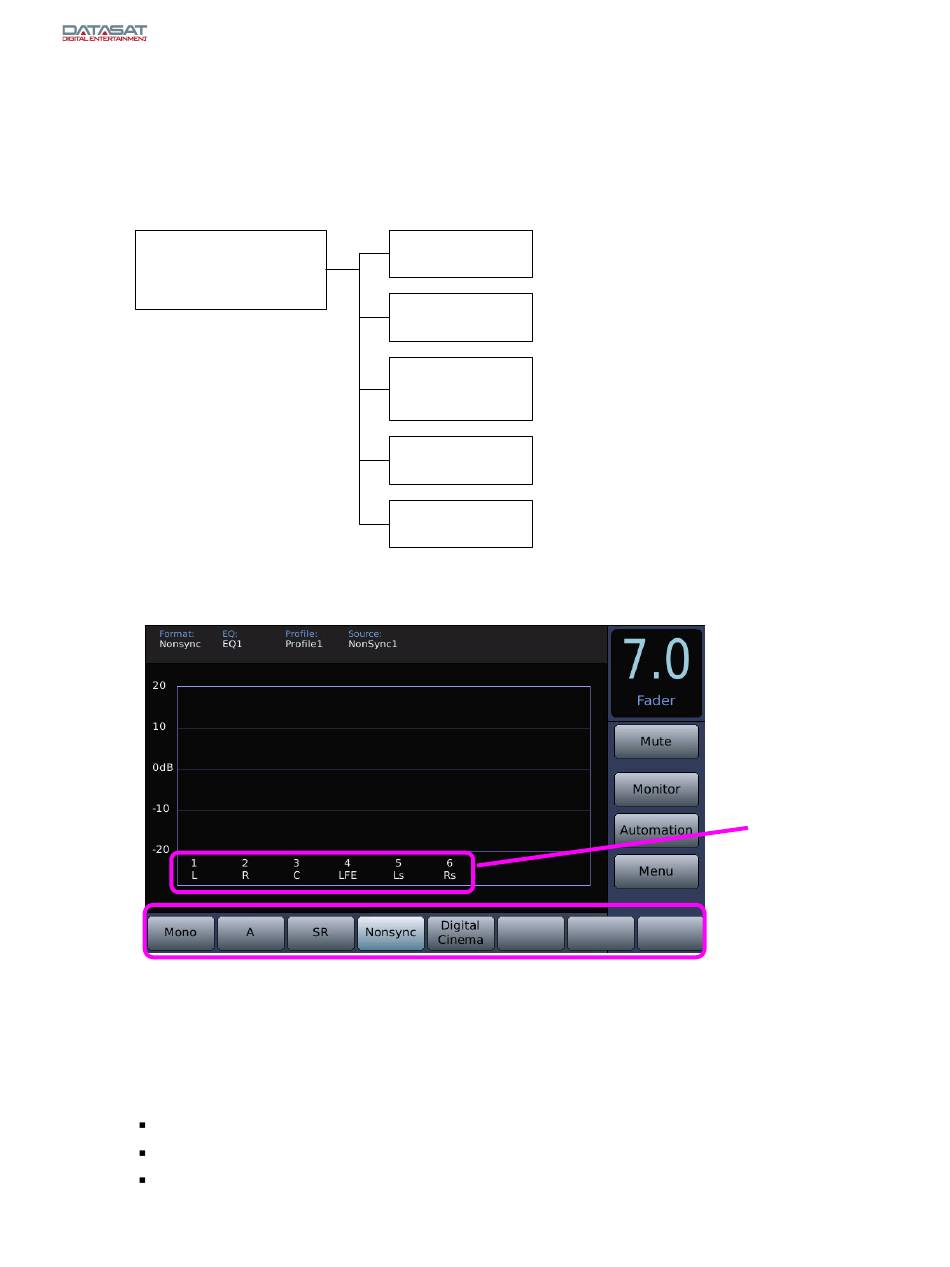

Figure 5. Home Screen
When the system has finished booting up, the Home Screen will appear, as shown in the above example.
Your Home Screen may look somewhat different, due to user-configurable channel names and audio
formats.
The Home Screen of the AP25 provides one-touch access to the following features:
Fader Volume/Mute
Audio Formats
Booth Monitor Volume/Mute
AP25 Installation & Operating Guide
AP25 Installation and Operating Guide
Fader (readout)
Mute (Fader)
Monitor
Volume Control and
Mute
Automation
Manual Control
Select Format
8 buttons on bottom of
screen
Document # 9301H79500 Ver. 1.00
Page 17
User-assigned
Channel
Names
User-assigned
Audio Formats
