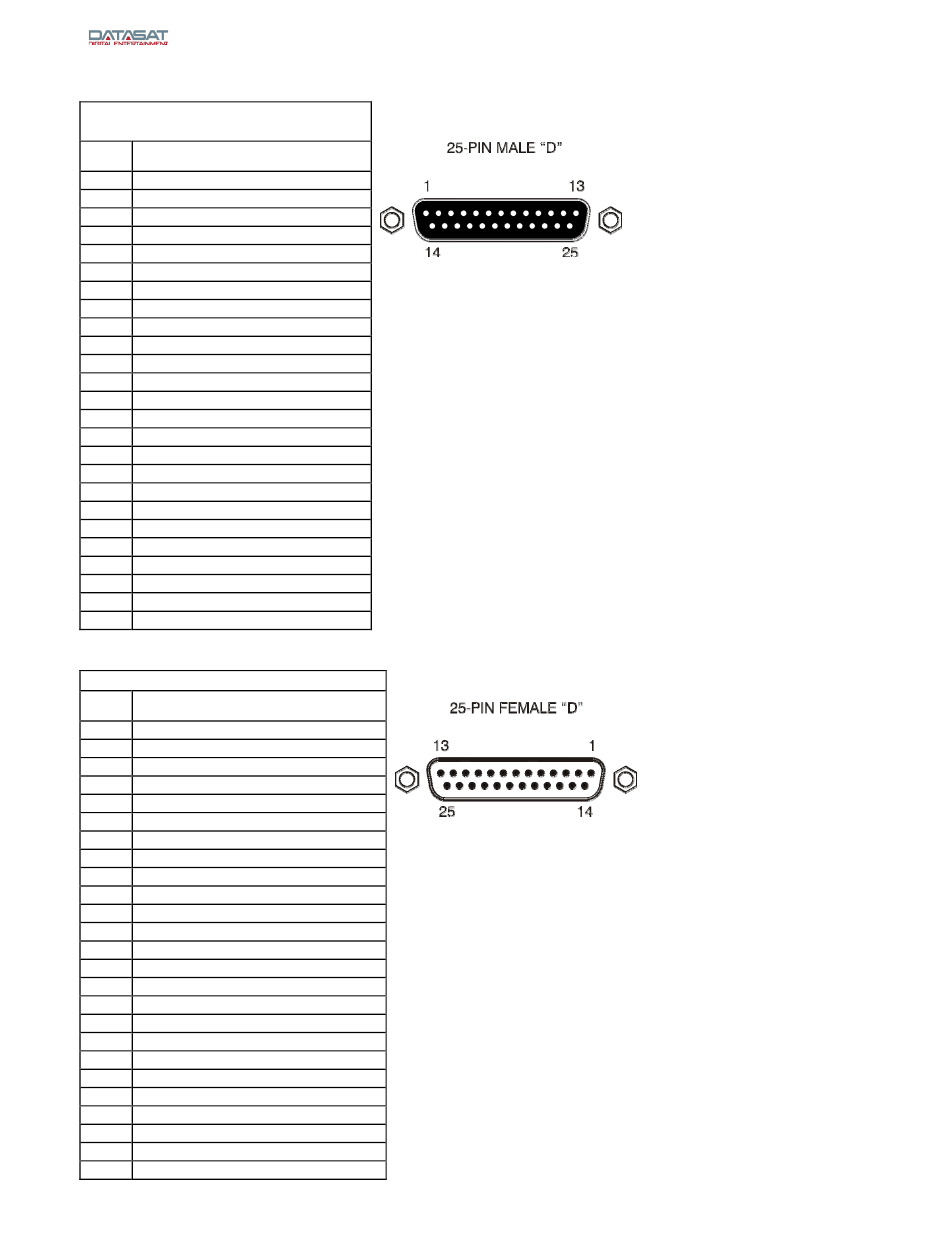

ANALOG AUDIO OUT (CH 9 – 16)
DB25M
Pin Description
1 ANALOG GND
2 CHANNEL 9 (+)
3 CHANNEL 15 (-)
4 ANALOG GND
5 CHANNEL 11 (+)
6 CHANNEL 16 (-)
7 ANALOG GND
8 CHANNEL 10 (+)
9 ANALOG GND
10 CHANNEL 13 (-)
11 CHANNEL 14 (-)
12 CHANNEL 12 (-)
13 ANALOG GND
14 CHANNEL 9 (-)
15 ANALOG GND
16 CHANNEL 15 (+)
17 CHANNEL 11 (-)
18 ANALOG GND
19 CHANNEL 16 (+)
20 CHANNEL 10 (-)
21 N/C
22 ANALOG GND
23 CHANNEL 13 (+)
24 CHANNEL 14 (+)
25 CHANNEL 12 (+)
N/C = No connection
ANALOG AUDIO IN – DB25F
Pin Description
1 Left (-)
2 R/S (+)
3 R/S (-)
4 L/S (-)
5 R/E (-)
6 Right (-)
7 L/E (-)
8 Center (-)
9 GND
10 GND
11 GND
12 Sub (-)
13 GND
14 Left (+)
15 L/S (+)
16 R/E (+)
17 Right (+)
18 L/E (+)
19 GND
20 Center (+)
21 N/C
22 GND
23 GND
24 Sub (+)
25 N/C
N/C = No connection
