E
SuperSPARC module A
SPARC connectors
SuperSPARC module B
E-6
in the A connectors on consecutive system boards starting with the system
board in slot 0. After all of the A connectors are filled, begin filling the B
connectors, starting with the system board in slot 0 and working down.

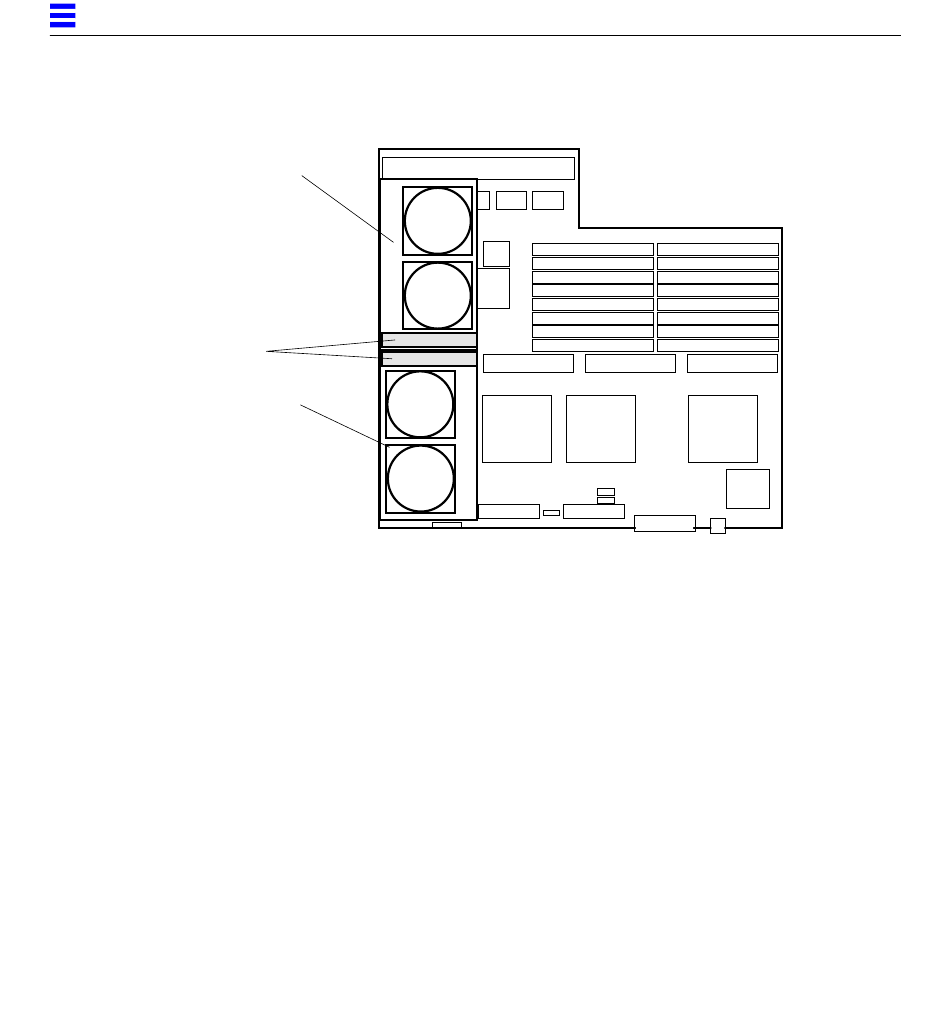

Figure E-2 SuperSPARC module Locations
The example in Table E-1 shows how to distribute four SuperSPARC modules
on three system boards.
SPARCserver 1000 System Service Manual—June 1996
