9
Note: Example cabling. Your cabling
and termination may differ
9.6 Disk Card Disk Drive
!
9-14

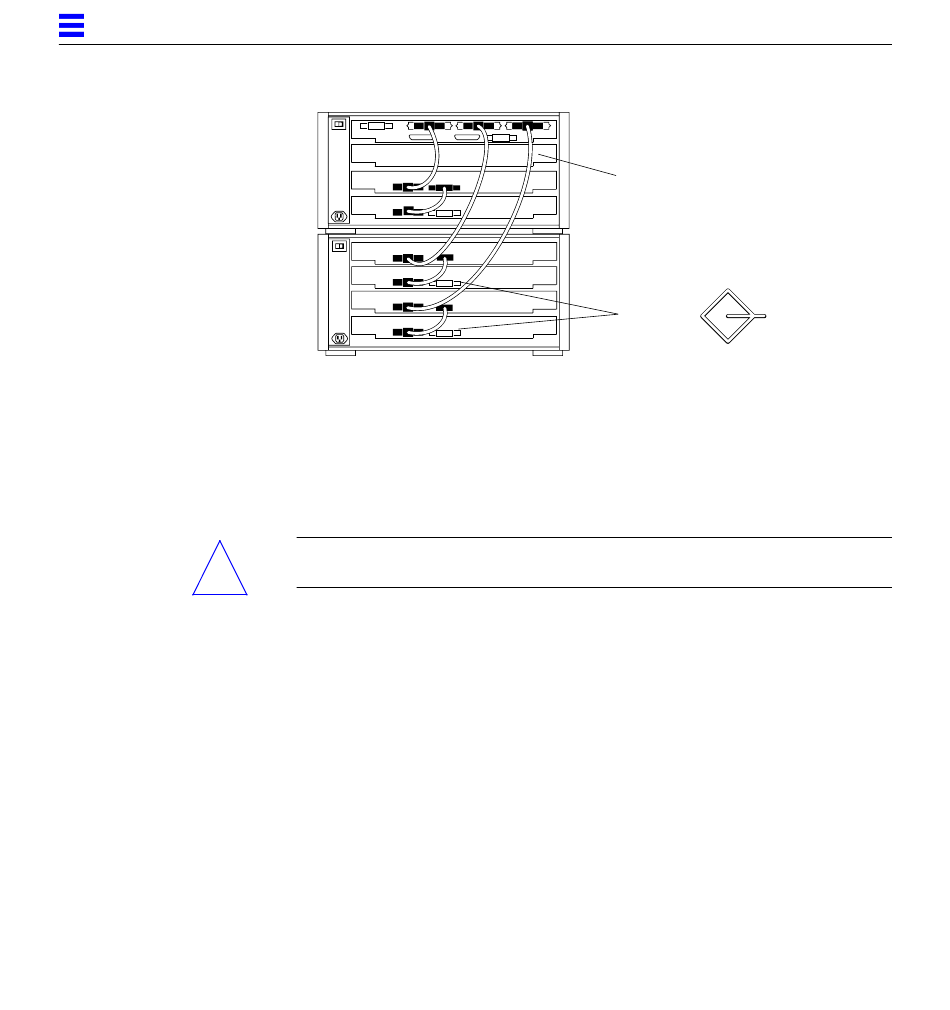

Figure 9-11 Multiple Disk Card per Wide SCSI-2 Host Adapter Cabling

With the disk card removed from the chassis, replace a disk drive as follows:
1. Position the antistatic mat on the work surface. Place the card on the mat.
Caution – Observe all safety precautions detailed in Chapter 5 with regard to
ESD and antistatic mat use. Failure to do this may result to disk drive damage.
2. Remove the old disk drive:
a. Press the latch on the ejector drive retainer to release it.
b. Carefully open the ejector drive retainer. The drive should slide out
from the connector. See Figure 9-12.
3. Slide the old drive out and place it on the antistatic mat.
4. Unpack the new disk drive:
a. Inspect the shipping container for evidence of damage.
i. If the carrier's agent is not present when the container is opened,
and the contents are found to be damaged, keep all contents and
packing materials for the agent's inspection.
SPARCserver 1000 System Service Manual—June 1996
SCSI-2 cable to host adapter in
SPARCserver 1000 System.
Terminator
