10.4.2 Preparing a New SBus Card

10-12
SBus card

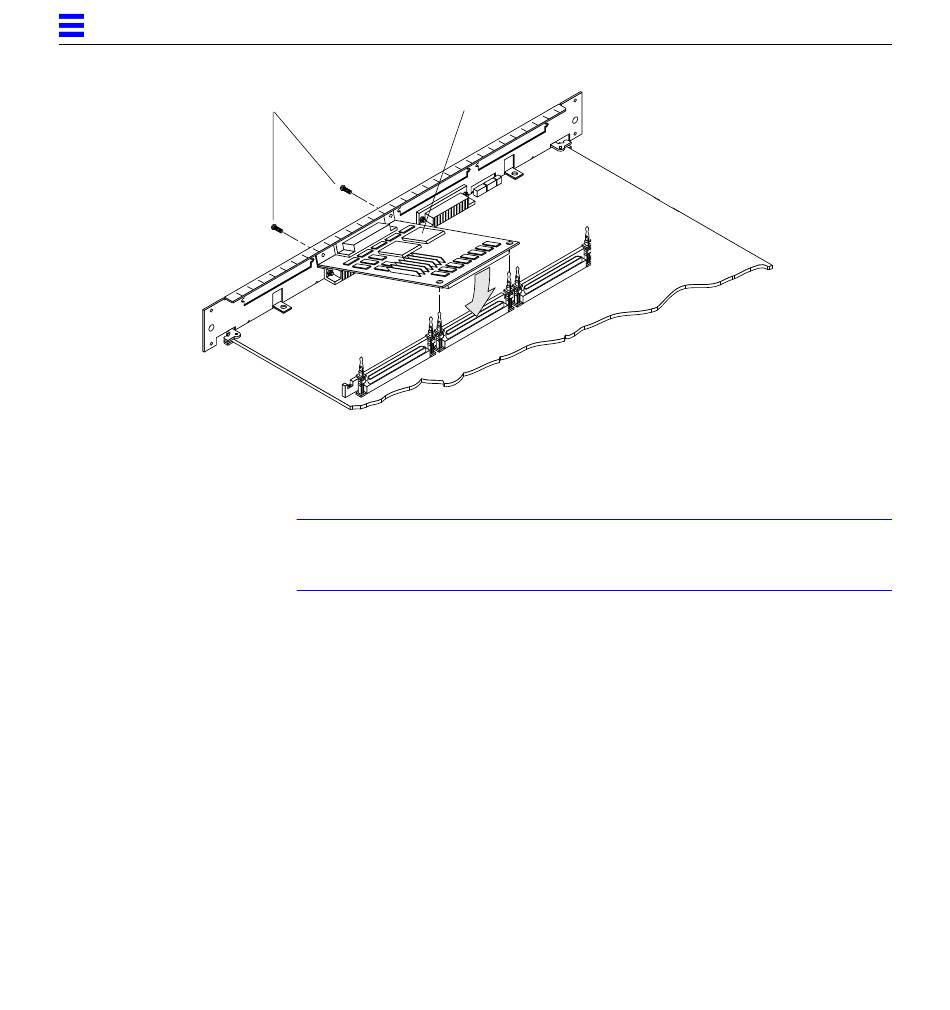

Figure 10-7 Removing or Installing an SBus Card
Note – If the new SBus card has an adapter bracket (See Figure 10-8), remove
the bracket by performing the procedures in this section. If the SBus card lacks
an adapter bracket, go to Section 10.4.3, "Installing an SBus Card."
1. Open the protective packaging and take out the SBus card.
2. Remove the adapter bracket from the SBus card rear panel.
See Figure 10-8. Using a #0 Phillips screwdriver, remove two screws
securing the adapter to the card rear panel. The adapter bracket and screws
are not needed for installation.
3. Remove the black plastic card retainer shipped with the card.
See Figure 10-8. Spread the ends of the retainer apart to remove it from the
card. The retainer is not needed for this installation.
SPARCserver 1000 System Service Manual—June 1996
