When additional memory is added to a system, the new SIMMs are always
be installed in the lowest available group, regardless of the board on which
the SIMMs are installed.
•
When adding memory to a system, begin with the system board in the
lowest available card cage slot number (slot 0) and fill the lowest open
group. Then fill the lowest available group on the system board in slot 1, etc.

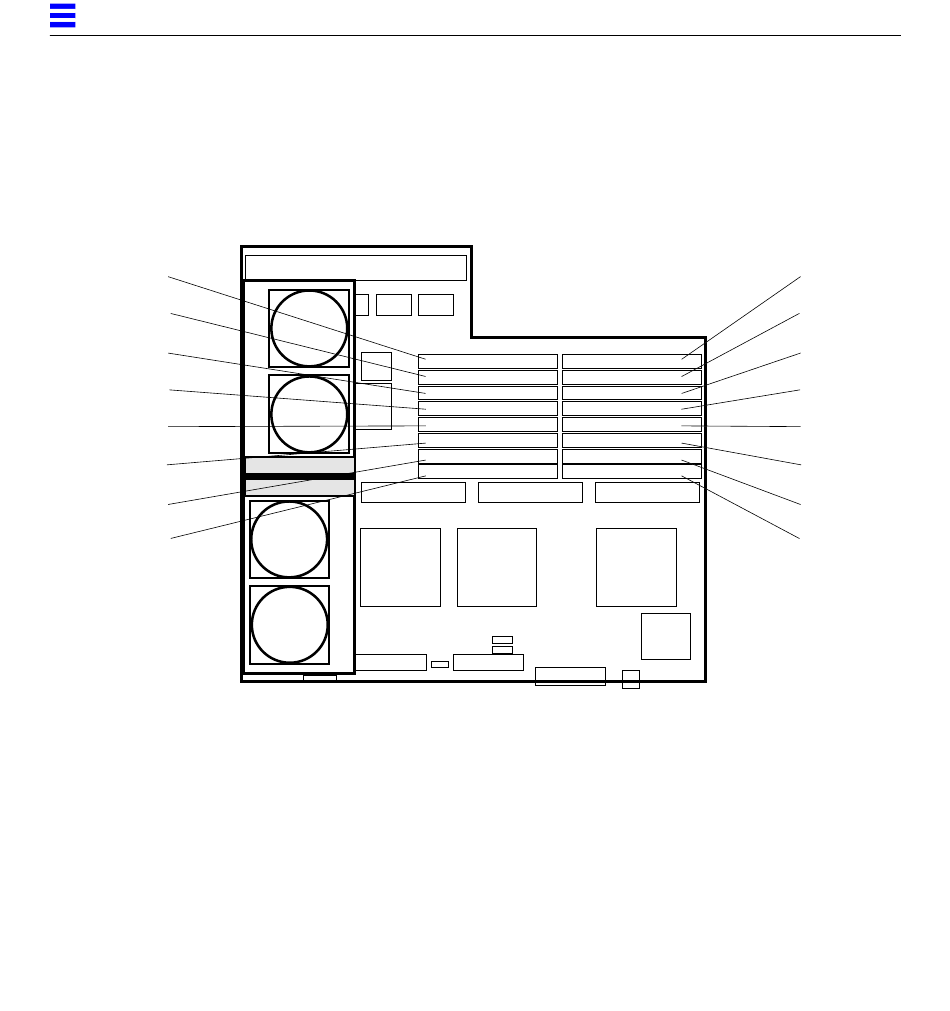

Figure B-1 SIMM Group Locations on the System Board
SIMMs on a board are divided into four groups, as summarized in Table B-1.
