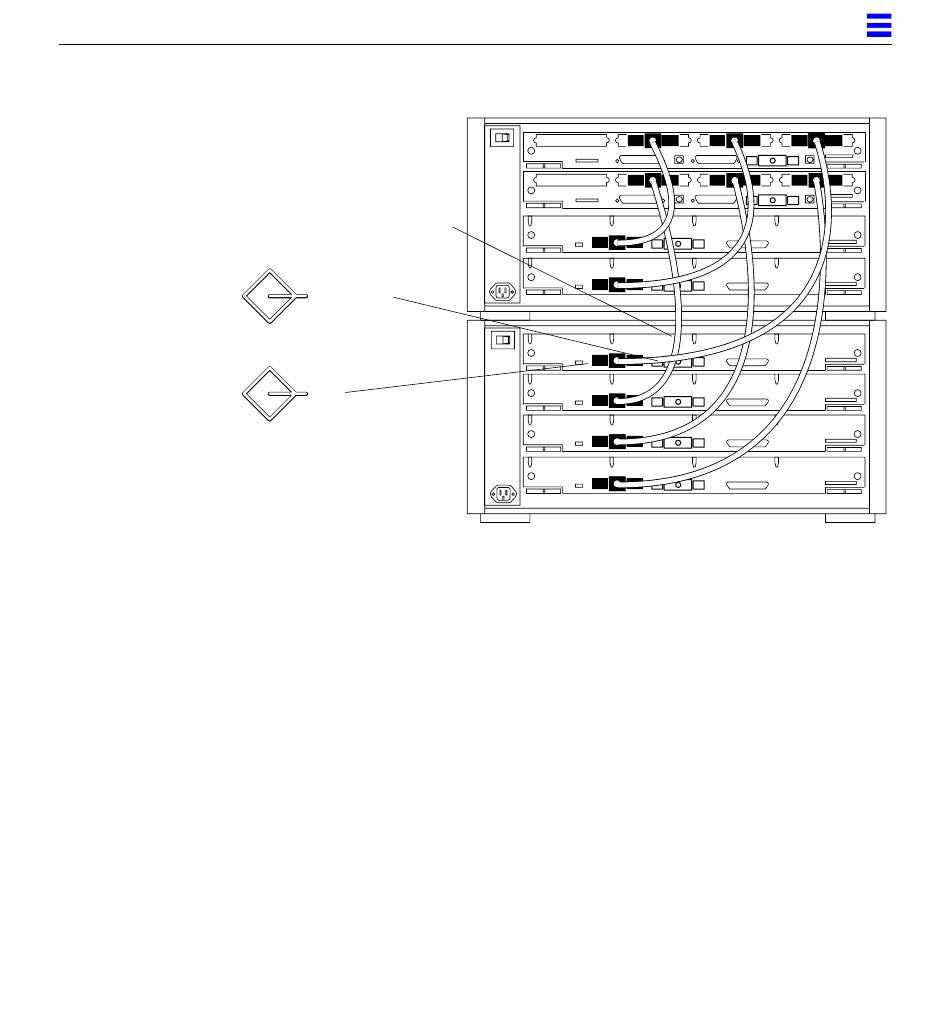

Figure 9-10 Single Disk Card Per Scsi-2 Host Adapter Cabling - Sun Microsystems SPARCserver 1000 Service Manual

SCSI-2 cable to host adapter in
SPARCserver 1000 System.
Notes:
Example cabling. Your cabling and termination may differ.
Narrow SCSI disk cards/host adapters shown, but can
also apply to wide SCSI disk cards/host adapters.
Terminator
IN

Figure 9-10 Single Disk Card per SCSI-2 Host Adapter Cabling

• multiple disk cards per host adapter: to the OUT port of the next upstream
disk card in the daisy-chain (see example cabling in Figure 9-10)
6. Install the appropriate item on the OUT port:
• single disk card per host adapter or the last wide SCSI-2 disk card in a
daisy-chain: install a terminator; see Figure 9-10
• any upstream disk card in a daisy-chain: connect the SCSI-2 cable feeding
the next downstream disk card in a daisy-chain (Figure 9-10)
