Figure 8-1 Subassembly Location - Sun Microsystems SPARCserver 1000 Service Manual

8
Power supply
8.1 Fan Tray
8.1.1 Removal
8-2
System board
SCSI tray

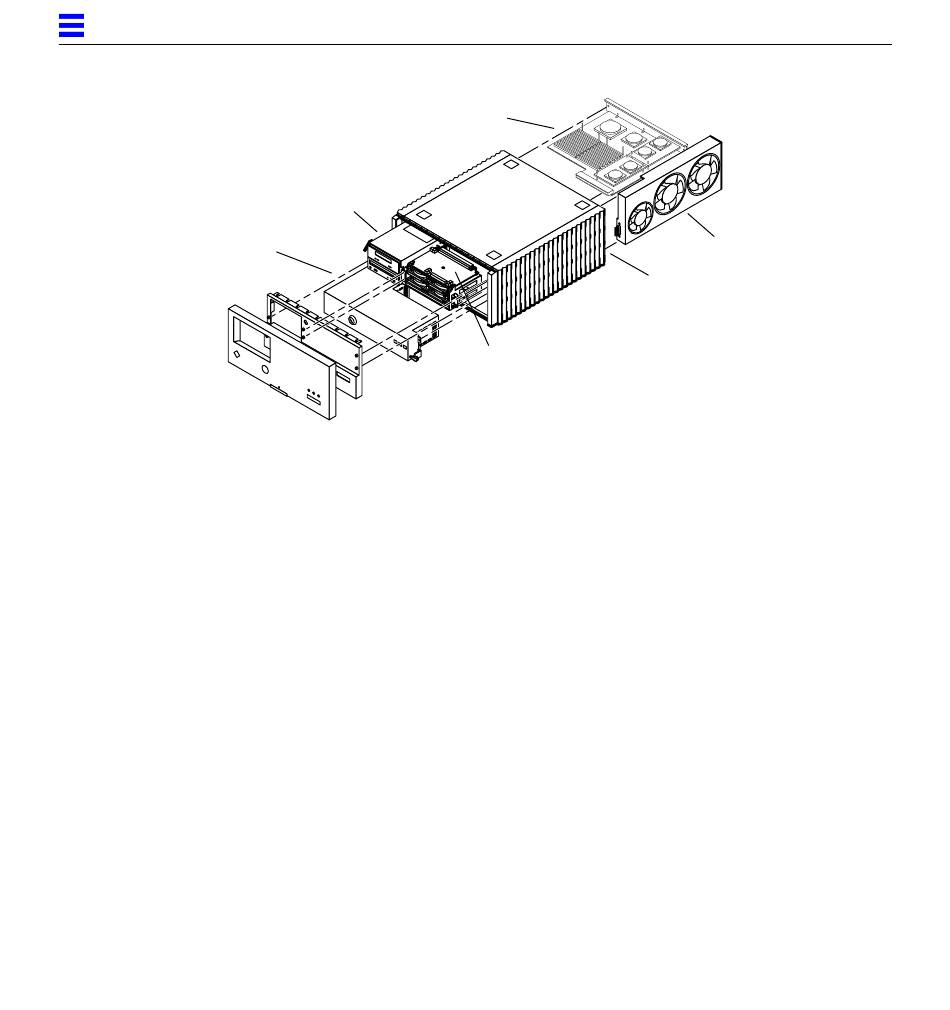

Figure 8-1 Subassembly Location
The fan tray is located on the chassis right side — viewed from the front. See
Figure 8-1.
1. Locate the fan tray from the back of the system.
The fan tray is on the left side of the chassis, viewed from the rear, and has
the power cord connector and the AC power switch.
2. Unplug the power cable from the fan tray.
3. Remove the two retaining screws that secure the fan tray to the chassis.
Set the screws aside for reinstallation. See Figure 8-2.
SPARCserver 1000 System Service Manual—June 1996
Backplane (hidden)
Control board
Fan tray
