3 - Command Set
If an error occurs, the device will terminate the command and report the error in ACKSTS of Command
0x01 - Response ACK. For a full list of error codes, see Appendix C Status and Message Table, Table
3-76.
If no error occurs, the device will send Report 0x22 - Card Status Report to the host. If the cardholder
or operator cancelled the request, or if the request timed out, byte 1 of Report 0x22 - Card Status
Report will contain the appropriate Operation Status code to indicate why the command did not
complete. Otherwise, if all of the card information was entered correctly, byte 1 = 0x00 (this command
completed OK), byte 2 = 0x00 (Card Status is OK), byte 3 = 0x03 (Card Type is manual), and the host
should send a request to get the card data (see Command 0x0A - Request MSR Data). The device will
respond with multiple instances of Report 0x23 - Card Data Report, followed by Report 0x20 - Device
State Report.
Table 3-22 - Usage Table for Command 0x11
Bit 7
Byte 0 0x11
Byte 1 Wait Time in seconds, (1 - 255; 0 = 256 seconds)
Byte 2 0
Tones:
0 = No sound
Byte 3
1 = One beep
2 = Two beeps
The track data sent by the device for manually entered card data may be masked according to the device's
configuration (the same as it is for credit/debit cards), but the data shown in the following examples is
unmasked just to show the detail. The account number or QwickCode is denoted by a string of 5s, the
expiration date (or PAN4) by 3s and the CVC by 4s. The location marked by '6' indicates the field
options used when the data was collected; unused fields will be 0s. 0s below denote fixed-length filler.
Track 1 card type ('B' for credit/debit cards) is set to 'M' and the name is set to the string literal
"MANUAL ENTRY/".
Track 1 data may be found in the instance of Report 0x23 - Card Data Report that contains Data ID =
0x01. The device will format Track 1 card data as follows:
DynaPro Mini| PIN Encryption Device | Programmer's Manual (Commands)

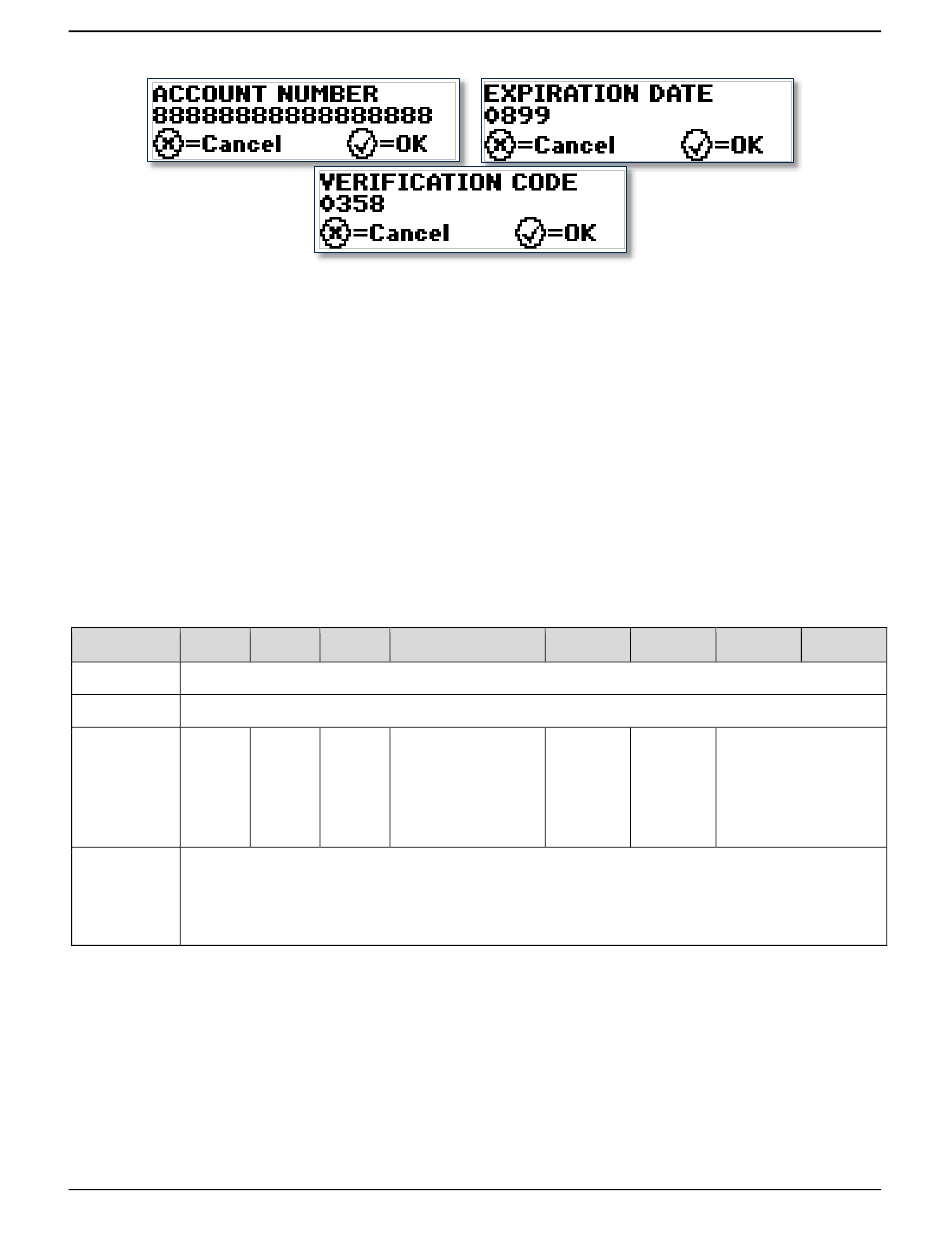

Figure 3-6 - DynaPro Mini Manual Card Information Entry
6 5
0=Use PAN min
9, max 19
0 0
1=Use PAN min
14, max 21
Page 48 of 128 (D99875629-43)
4 3
1=Use
1=Use
PAN in
Qwick
PIN
Codes
block
entry
creation
2 1 0
Field Options:
0 = Acct,Date,CVC
1 = Acct,Date
2 = Acct,CVC
3 = Acct
