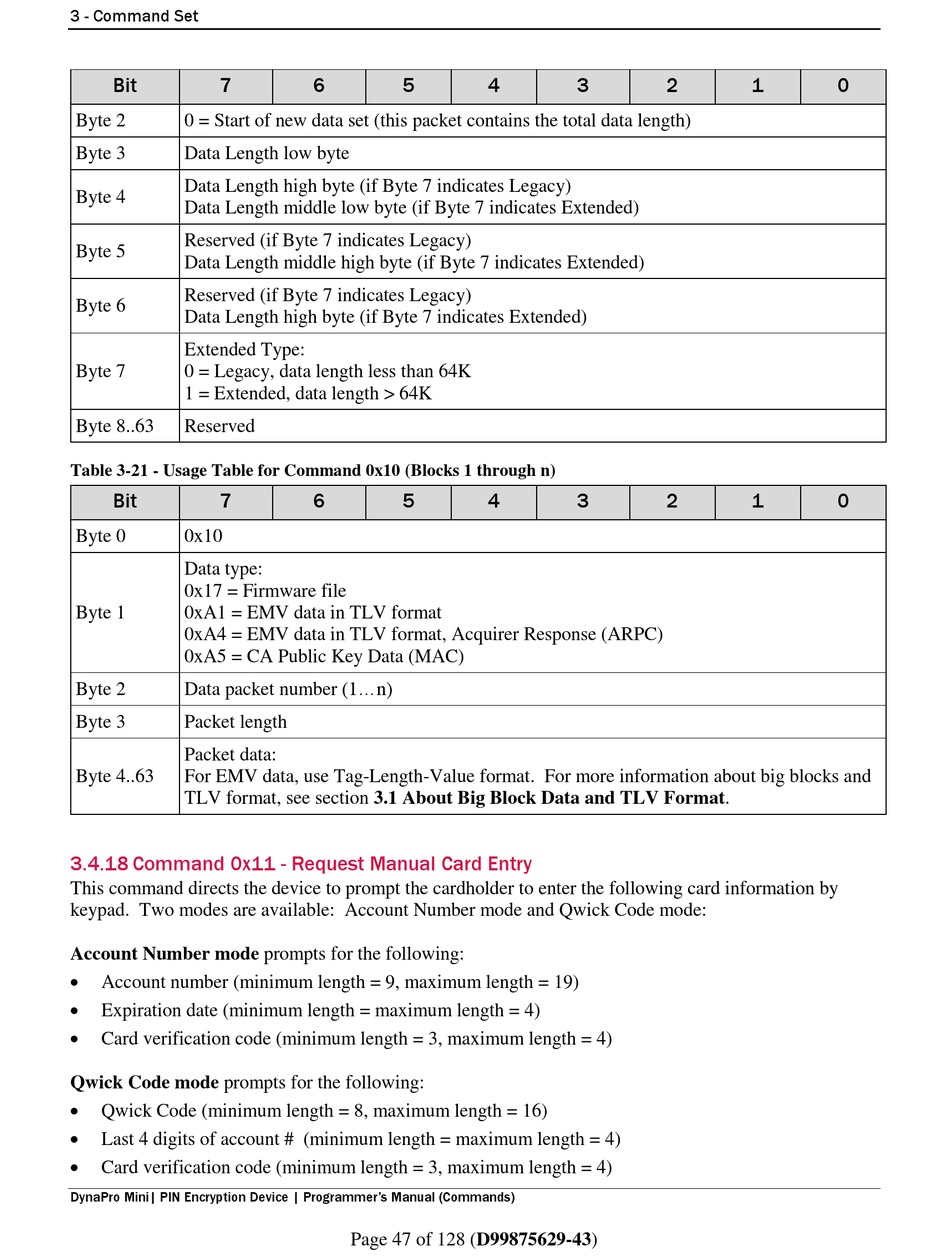

3 - Command Set
Bit 7
Byte 2 0 = Start of new data set (this packet contains the total data length)
Byte 3 Data Length low byte
Data Length high byte (if Byte 7 indicates Legacy)
Byte 4
Data Length middle low byte (if Byte 7 indicates Extended)
Reserved (if Byte 7 indicates Legacy)
Byte 5
Data Length middle high byte (if Byte 7 indicates Extended)
Reserved (if Byte 7 indicates Legacy)
Byte 6
Data Length high byte (if Byte 7 indicates Extended)
Extended Type:
Byte 7 0 = Legacy, data length less than 64K
1 = Extended, data length > 64K
Byte 8..63 Reserved
Table 3-21 - Usage Table for Command 0x10 (Blocks 1 through n)
Bit 7
Byte 0 0x10
Data type:
0x17 = Firmware file
Byte 1 0xA1 = EMV data in TLV format
0xA4 = EMV data in TLV format, Acquirer Response (ARPC)
0xA5 = CA Public Key Data (MAC)
Data packet number (1...n)
Byte 2
Byte 3 Packet length
Packet data:
Byte 4..63 For EMV data, use Tag-Length-Value format. For more information about big blocks and
TLV format, see section 3.1 About Big Block Data and TLV Format.

3.4.18 Command 0x11 - Request Manual Card Entry

This command directs the device to prompt the cardholder to enter the following card information by
keypad. Two modes are available: Account Number mode and Qwick Code mode:
Account Number mode prompts for the following:

Account number (minimum length = 9, maximum length = 19)

Expiration date (minimum length = maximum length = 4)

Card verification code (minimum length = 3, maximum length = 4)
Qwick Code mode prompts for the following:

Qwick Code (minimum length = 8, maximum length = 16)

Last 4 digits of account # (minimum length = maximum length = 4)

Card verification code (minimum length = 3, maximum length = 4)
DynaPro Mini| PIN Encryption Device | Programmer's Manual (Commands)
6 5 4
6 5 4
Page 47 of 128 (D99875629-43)
