Magtek DynaPro Mini Quick Installation Manual

Wireless/usb pin-entry device with secure card reader authenticator

Hide thumbs Also See for DynaPro Mini:

Wireless/USB PIN-Entry Device with

Secure Card Reader Authenticator

Product Description

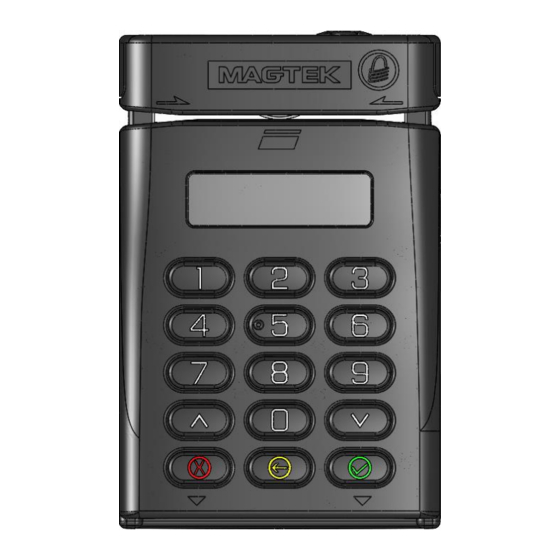

MagTek's DynaPro Mini is a handheld device that combines a secure PCI PTS

3.x, SRED compliant PIN Entry Device with a MagneSafe® secure card reader

authenticator (SCRA) and a smart card reader. This versatile secure cryptographic

device (SCD) is ideal for credit, ATM, Prepaid, gift, and debit cards for mobile point of

sale applications where you need unmatched convenience and security. Reduce your

interchange rates, reduce chargebacks and increase your customer satisfaction and

sales with the DynaPro Mini.

DynaPro Mini

Quick Installation Guide

MAGTEK RECOMMENDS

CHARGING AT LEAST EVERY

6 MONTHS TO MAXIMIZE

OPERATION. PLACE IN

AIRPLANE MODE BEFORE

STORAGE.

STORAGE TEMPERATURE:

32°F TO 113°F (0°C TO 45°C)

with micro USB connection

www.magtek.com

Table of Contents

Do you have a question about the DynaPro Mini and is the answer not in the manual?

Page 1 USB connection Product Description MagTek’s DynaPro Mini is a handheld device that combines a secure PCI PTS 3.x, SRED compliant PIN Entry Device with a MagneSafe® secure card reader authenticator (SCRA) and a smart card reader. This versatile secure cryptographic device (SCD) is ideal for credit, ATM, Prepaid, gift, and debit cards for mobile point of sale applications where you need unmatched convenience and security.
Page 2 Diagrams MagneSafe™ secure card reader authenticator (SCRA) 2-line liquid crystal display (LCD) Scroll up Cancel key micro-USB port Visually impaired reference bump Scroll down Enter key Correction key EMV secure card reader Figure 1. 3/4 angle front face view Power button Figure 2.
Page 3 USB cable and then hold the power button for more than 7 seconds. Wireless Connection When DynaPro Mini is connected wirelessly, the device will act as a server/peripheral, and the host will act as a client/central. The custom software wraps commands in simple Get/Set wrappers, and should use whatever wireless library is appropriate for the chosen software development framework.
Page 4 When calling the support team please have your reader charged and have the part number and serial number(s) available. 651.415.6800 support@magtek.com MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 p 562-546-6400 | f 562-546-6301 | www.magtek.com Registered to ISO 9008:2015 © Copyright 2020 MagTek, Inc. PN D99875618 rev 70 5/20...
