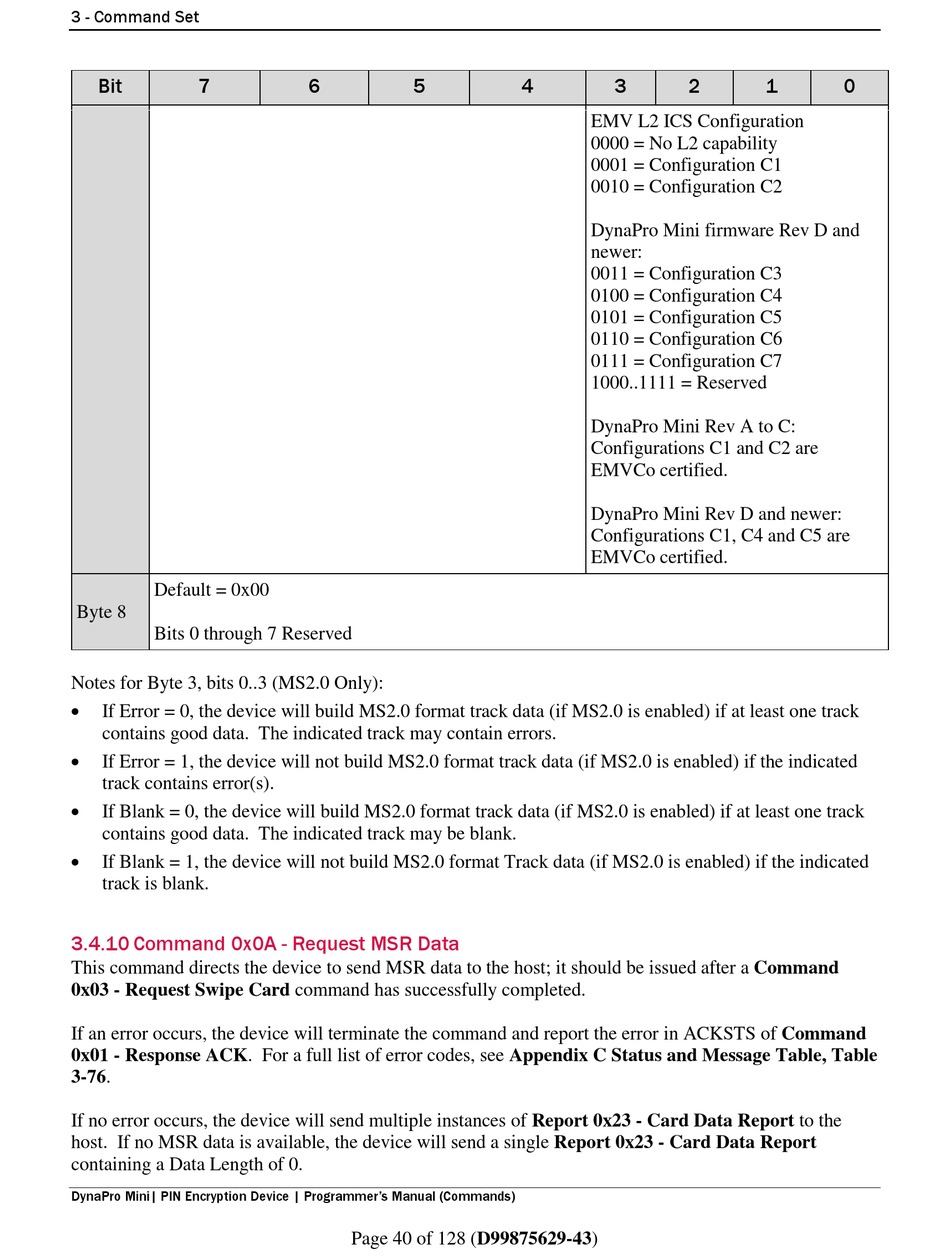

3 - Command Set
Bit 7
Default = 0x00
Byte 8
Bits 0 through 7 Reserved
Notes for Byte 3, bits 0..3 (MS2.0 Only):

If Error = 0, the device will build MS2.0 format track data (if MS2.0 is enabled) if at least one track
contains good data. The indicated track may contain errors.

If Error = 1, the device will not build MS2.0 format track data (if MS2.0 is enabled) if the indicated
track contains error(s).

If Blank = 0, the device will build MS2.0 format track data (if MS2.0 is enabled) if at least one track
contains good data. The indicated track may be blank.

If Blank = 1, the device will not build MS2.0 format Track data (if MS2.0 is enabled) if the indicated
track is blank.

3.4.10 Command 0x0A - Request MSR Data

This command directs the device to send MSR data to the host; it should be issued after a Command
0x03 - Request Swipe Card command has successfully completed.
If an error occurs, the device will terminate the command and report the error in ACKSTS of Command
0x01 - Response ACK. For a full list of error codes, see Appendix C Status and Message Table, Table
3-76.
If no error occurs, the device will send multiple instances of Report 0x23 - Card Data Report to the
host. If no MSR data is available, the device will send a single Report 0x23 - Card Data Report
containing a Data Length of 0.
DynaPro Mini| PIN Encryption Device | Programmer's Manual (Commands)
6 5
Page 40 of 128 (D99875629-43)
4 3 2
EMV L2 ICS Configuration
0000 = No L2 capability
0001 = Configuration C1
0010 = Configuration C2
DynaPro Mini firmware Rev D and
newer:
0011 = Configuration C3
0100 = Configuration C4
0101 = Configuration C5
0110 = Configuration C6
0111 = Configuration C7
1000..1111 = Reserved
DynaPro Mini Rev A to C:
Configurations C1 and C2 are
EMVCo certified.
DynaPro Mini Rev D and newer:
Configurations C1, C4 and C5 are
EMVCo certified.
1 0
