Parameter
1.053
Relationship to
parameter:
1.021
1.050
Run up time 2 is the time that the drive controller needs to accelerate from 0 Hz to the max. frequency.
1.054
The acceleration time can be increased as a result of certain circumstances, e.g. if the drive controller is overloaded.
1.054
Relationship to
parameter:
1.050 - 1.053
Selection of used ramp pair
0 = deceleration time 1 (1.050) / acceleration 1 (1.051)
1 = deceleration time 2 (1.052) / acceleration 2 (1.053)
2 = digital input 1 (false = ramp pair 1 / true = ramp pair 2)
3 = digital input 2 (false = ramp pair 1 / true = ramp pair 2)
4 = digital input 3 (false = ramp pair 1 / true = ramp pair 2)
7 = analogue input 1 (must be selected in parameter 4.030)
9 = virtual output (4.230)
1.060
Relationship to
parameter:
1.050
1.051

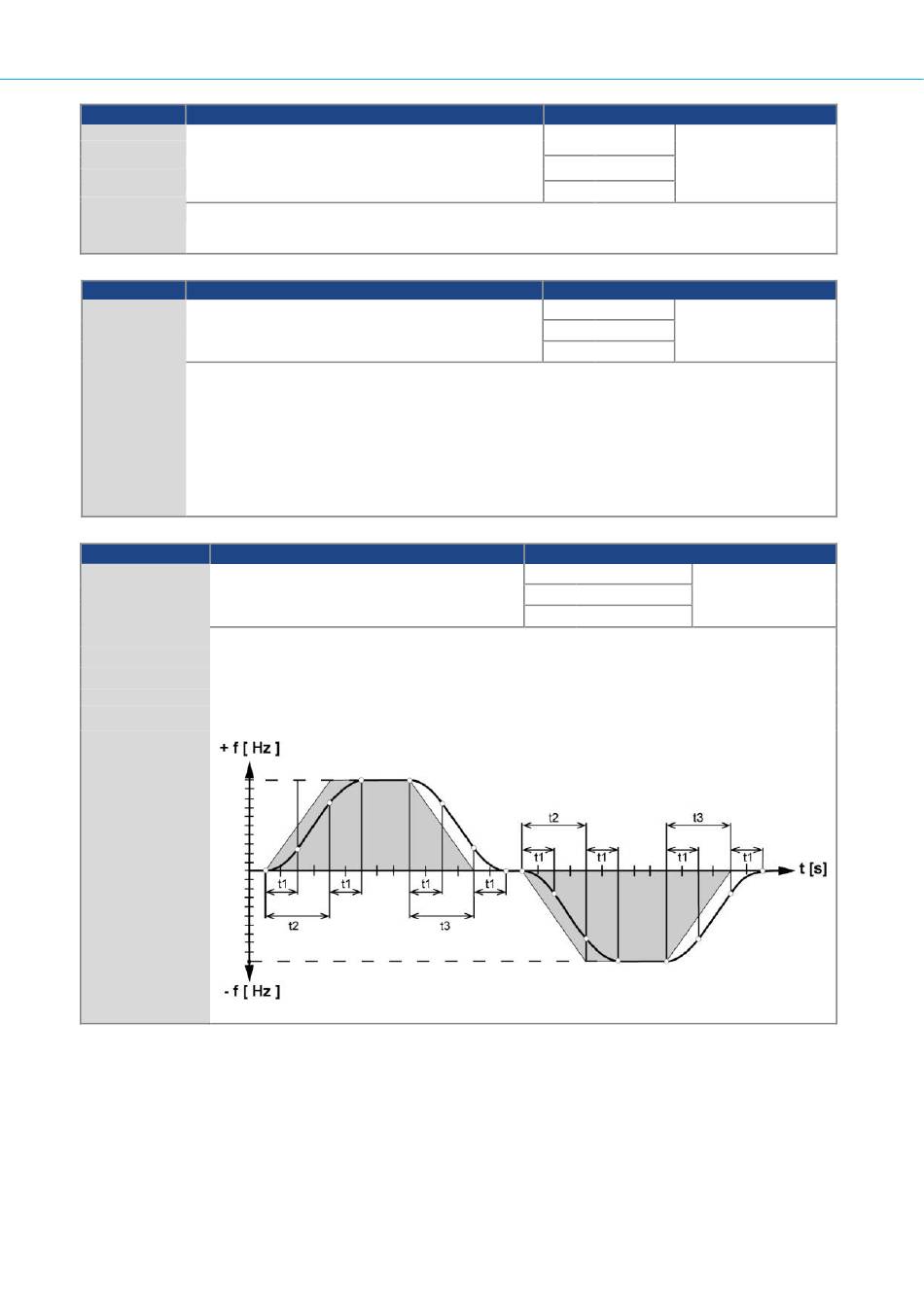

Given the application, it is good if the drive starts and stops smoothly.
This can be achieved by smoothing the acceleration and delay time.
t1 S-curve time (1.060)
t2 Run up time (1.051)
t3 Deceleration time (1.050)
54
Run up time 2
Transfer status:
2
Ramp selection
Transfer status:
2
S-curve
Transfer status:
2
Operating manual for DGM Modular | DOC02389740-0006 | 2021-07 | V1.70 EN
Unit: s
Own value (to be entered!)
min.: 0.001
max.: 1000
def.: 10
Unit: integer
min.: 0 Own value (to be entered!)
max.: 9
def.: 0
Unit: s
min.: 0 Own value (to be
entered!)
max.: 100
def.: 0.001
