3.3.3

Wiring instructions

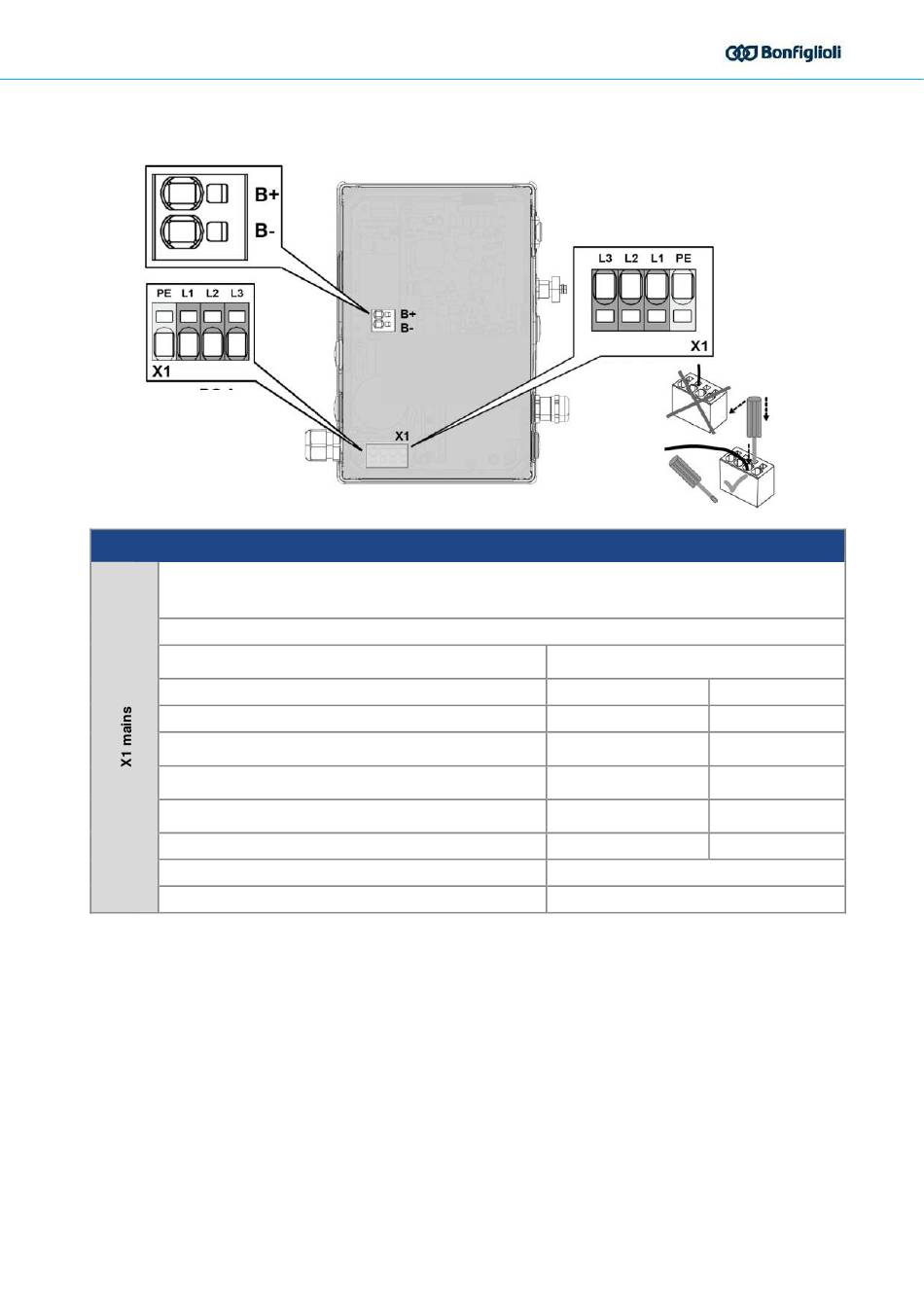

Connection overview ( sizes A - C)
Size A
The terminals for the mains cable are located inside the drive controller. The DGM Modular also has the
option of being equipped with terminals for connecting a brake resistor.
Depending on the variant, the assignment and position of the terminals may differ.
Core end sleeves with plastic collars and lugs are recommended.
Terminals:
Conductor cross-section, rigid
Conductor cross-section, flexible
Conductor cross-section, flexible with core end sleeve
without plastic sleeve
Conductor cross-section, flexible with core end sleeve with
plastic sleeve
2 conductors of the same cross-section, flexible with TWIN-
AEH with plastic sleeve
AWG/kcmil conductor cross-section according to UL/CUL
Length of stripped insulation:
Mounting temperature:
Operating manual for DGM Modular | DOC02389740-0006 | 2021-07 | V1.70 EN
Sizes B - C
Sizes A - C
Spring force connection
(slot screwdriver, max. width 2.5 mm)
min. 0.2 mm²
min. 0.2 mm²
min. 0.25 mm²
min. 0.25 mm²
min. 0.25 mm²
min. 24
max. 10 mm²
max. 6 mm
max. 6 mm
max. 4 mm
max. 1.5 mm
max. 8
15 mm
-5°C to +100°C
19
