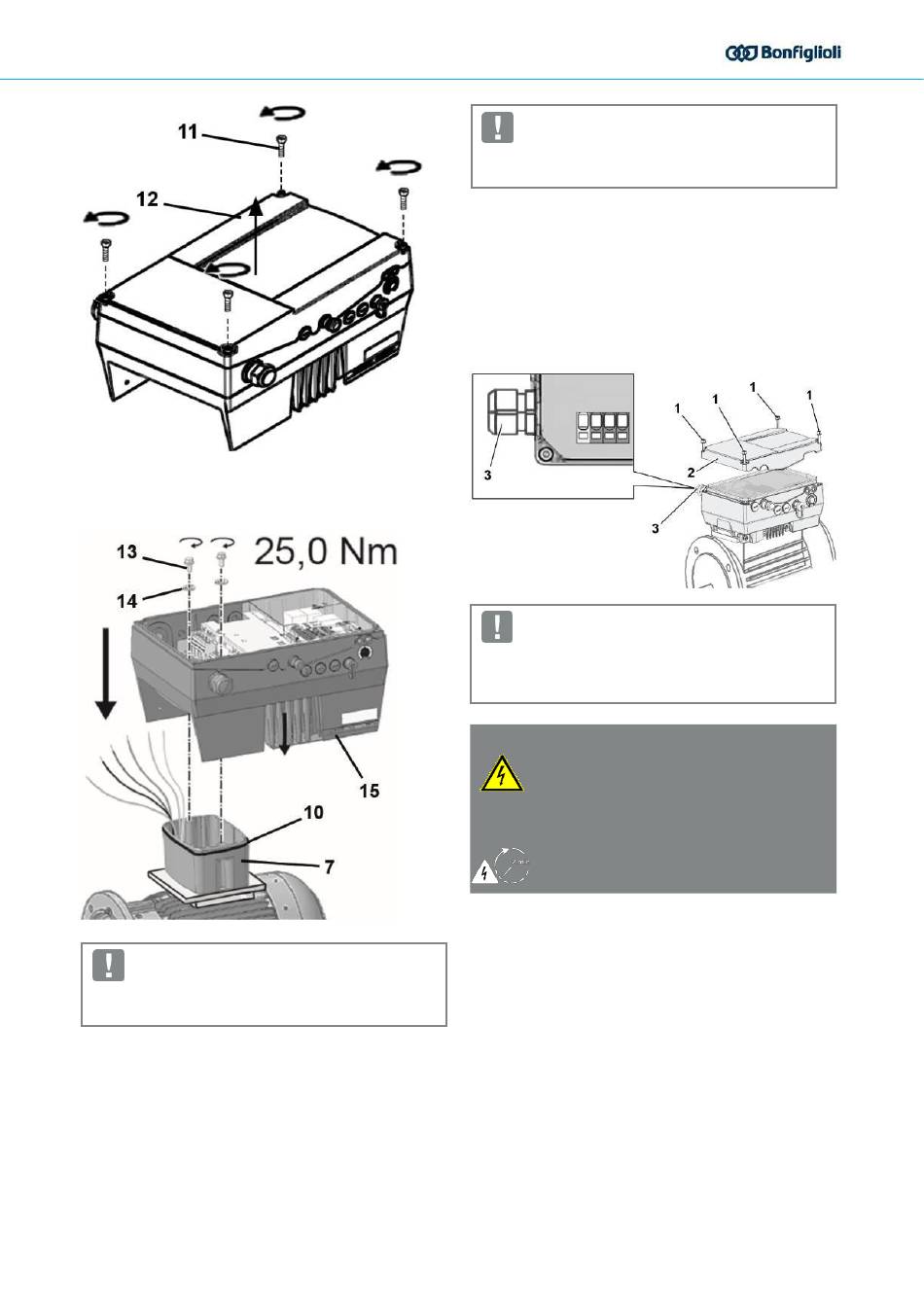

10. Unscrew the four screws (11) from the cover (12) and
then take it off.
IMPORTANT INFORMATION
When mounting the DGM Modular, ensure that the O-
ring seal (10) sits perfectly and is not damaged!
11. Carefully place the drive controller (15) onto the cup
(7) of the DGM Modular.
Operating manual for DGM Modular | DOC02389740-0006 | 2021-07 | V1.70 EN
IMPORTANT INFORMATION
During assembly, ensure that the connection cable is
not crushed!
12. Evenly screw down drive controller (15) and cup (7)
with the M8 screws (13) and spring elements (14)
(torque 25 Nm).
3.4.2

Power connection

Power connection for sizes A - C
IMPORTANT INFORMATION
When connecting a brake resistor to an optional brake
chopper, cables with shielding and double insulation
must be used!
DANGER!
Risk of death due to electrical shock!
Death or serious injury!
De-energise drive controller and secure it
against being restarted.
Danger due to electrical shock and discharge.
Wait two minutes (discharge time of the
capacitors) after shut-down.
1. Unscrew the four screws (1) from the drive controller's
housing cover (2) and then take it off.
2. Guide mains connection cable through cable screw
connection (3) into housing of drive controller.
