BONFIGLIOLI DGM MPM Technical Manual page 20

Installation

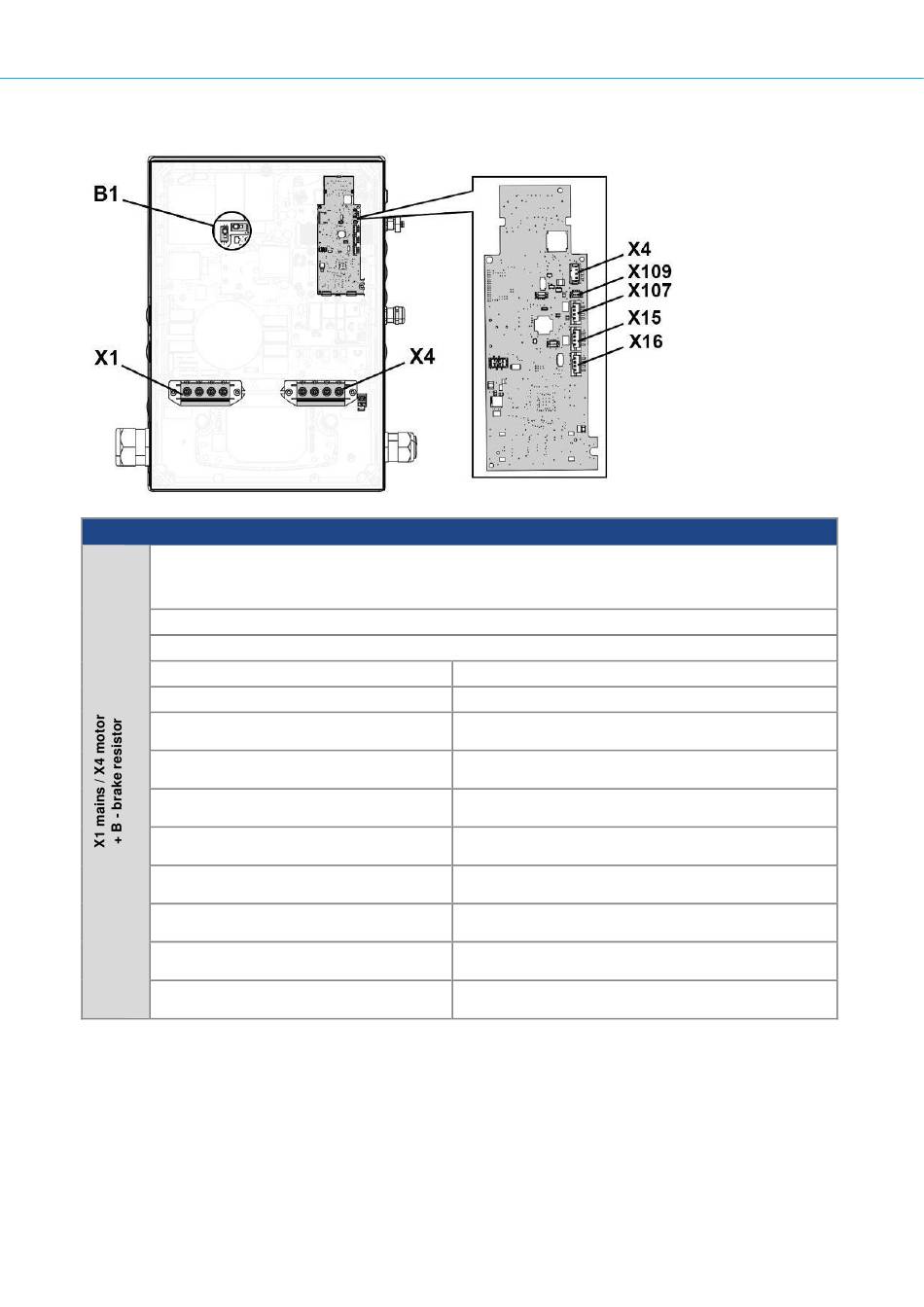

Connection overview ( size D)
The terminals for the mains cable are located inside the drive controller. The DGM Modular also has the
option of being equipped with terminals for connecting a brake resistor. The configuration may vary
depending on the version.
Core end sleeves with plastic collars and lugs are recommended.
Torque min. 2.5 Nm / max. 4.5 Nm
Conductor cross-section:
Conductor cross-section, flexible:
Conductor cross-section, flexible with core
end sleeve without plastic collar
Conductor cross-section, flexible with core
end sleeves with plastic sleeve
AWG / kcmil conductor cross-section
according to UL/CUL
2 conductors of the same cross-section, rigid
2 conductors of the same cross-section,
flexible
2 conductors of the same cross-section,
flexible with AEH without plastic sleeve
2 conductors of the same cross-section,
flexible with TWIN-AEH with plastic sleeve
AWG according to UL/CUL
20
Size D
rigid min. 0.5 mm² / rigid max. 35 mm²
min. 0.5 mm² / max. 25 mm²
min. 1 mm²
max. 25 mm²
min. 1.5 mm²
max. 25 mm²
min 20
max. 2
min. 0.5 mm²
max. 6 mm²
min. 0.5 mm²
max. 6 mm²
min. 0.5 mm²
max. 4 mm²
min. 0.5 mm²
max. 6 mm²
min. 20
max. 2
Operating manual for DGM Modular | DOC02389740-0006 | 2021-07 | V1.70 EN
