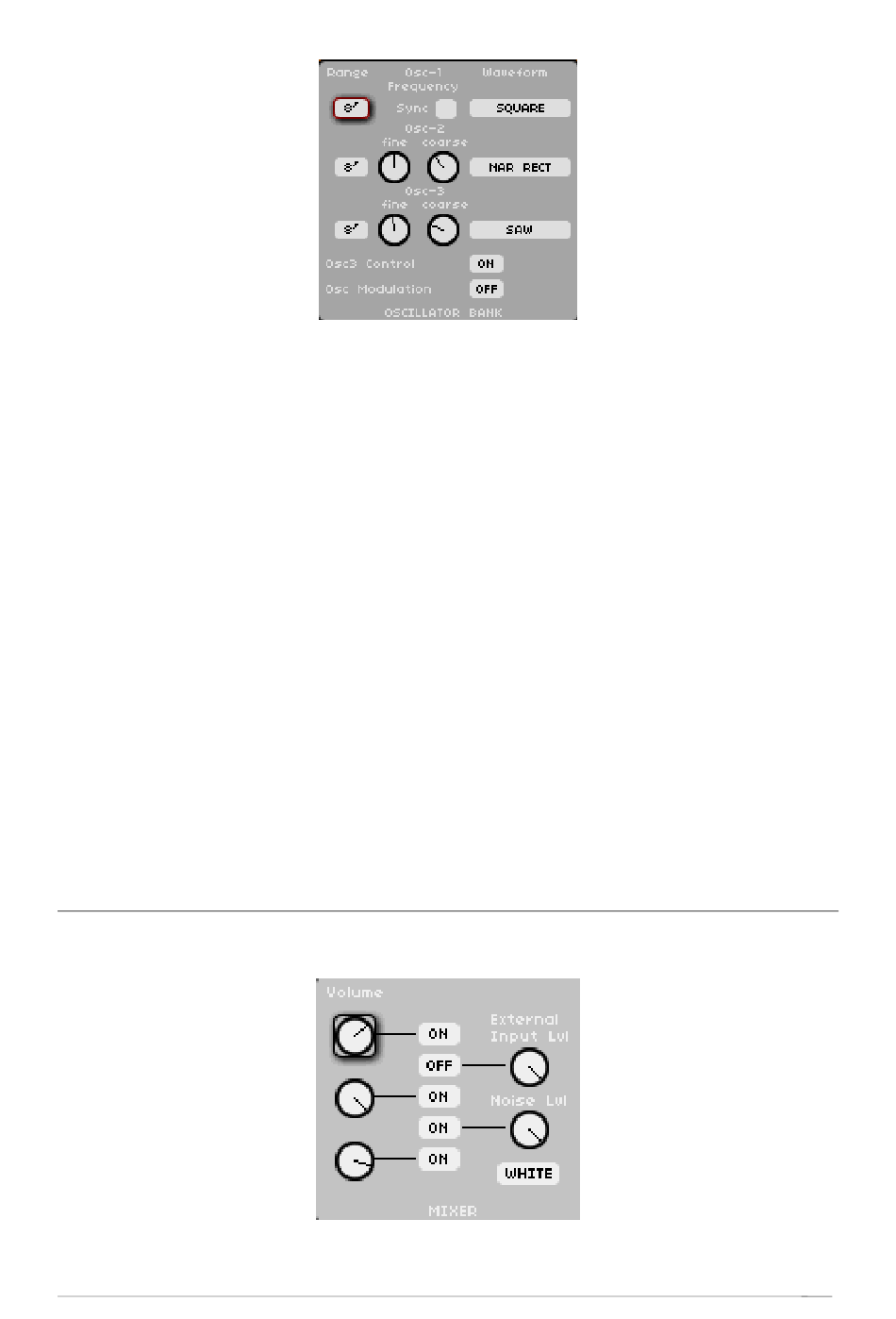

The oscillator bank is organized into three rows, each row corresponding to one oscillator. From top
to bottom you can find oscillator 1, 2 and 3. Below is a listing of the available parameters.
- [Range]: The three selection boxes in the column below [range] at the far left set the
range of each oscillator. It is specified in feet and runs from '32 (lowest possible range) to
'2 (highest possible range). Oscillator 3 also offers a [Lo] position; as set, oscillator 3 can
be used as an LFO.
- [Sync]: This top-centered switch activates or deactivates the synchronization of oscillator
2 to oscillator 1 (only available on oscillator 1).
- [Fine]: These knobs control the fine tuning of the corresponding oscillator (only available
on oscillator 2 and 3).
- [Coarse]: These knobs control the coarse tuning of the corresponding oscillator (only
available on oscillator 2 and 3).
- [Waveform] The three selection boxes in the column below [waveform] at the far right
set the waveform of each oscillator. The following waveforms are available: TRI
(triangle), TRI SAW (asymmetric triangle), SAW (sawtooth), SQUARE, WIDE RECT (wide
rectangle), NAR RECT (narrow rectangle).
[Osc3 Control]: This switch at the bottom activates or deactivates the keyboard follow
-
for oscillator 3.
[Osc Modulation]: This switch at the bottom activates or deactivates the frequency
-
modulation of oscillator 1 and 2 by oscillator 3.

10.3.2.2 Mixer

The mixer sets the balance between all the sound sources of the Minimoog template before the
signal is sent to the filter.
ARTURIA – ORIGIN – USER'S MANUAL
The oscillator bank
