PANEL DESCRIPTION

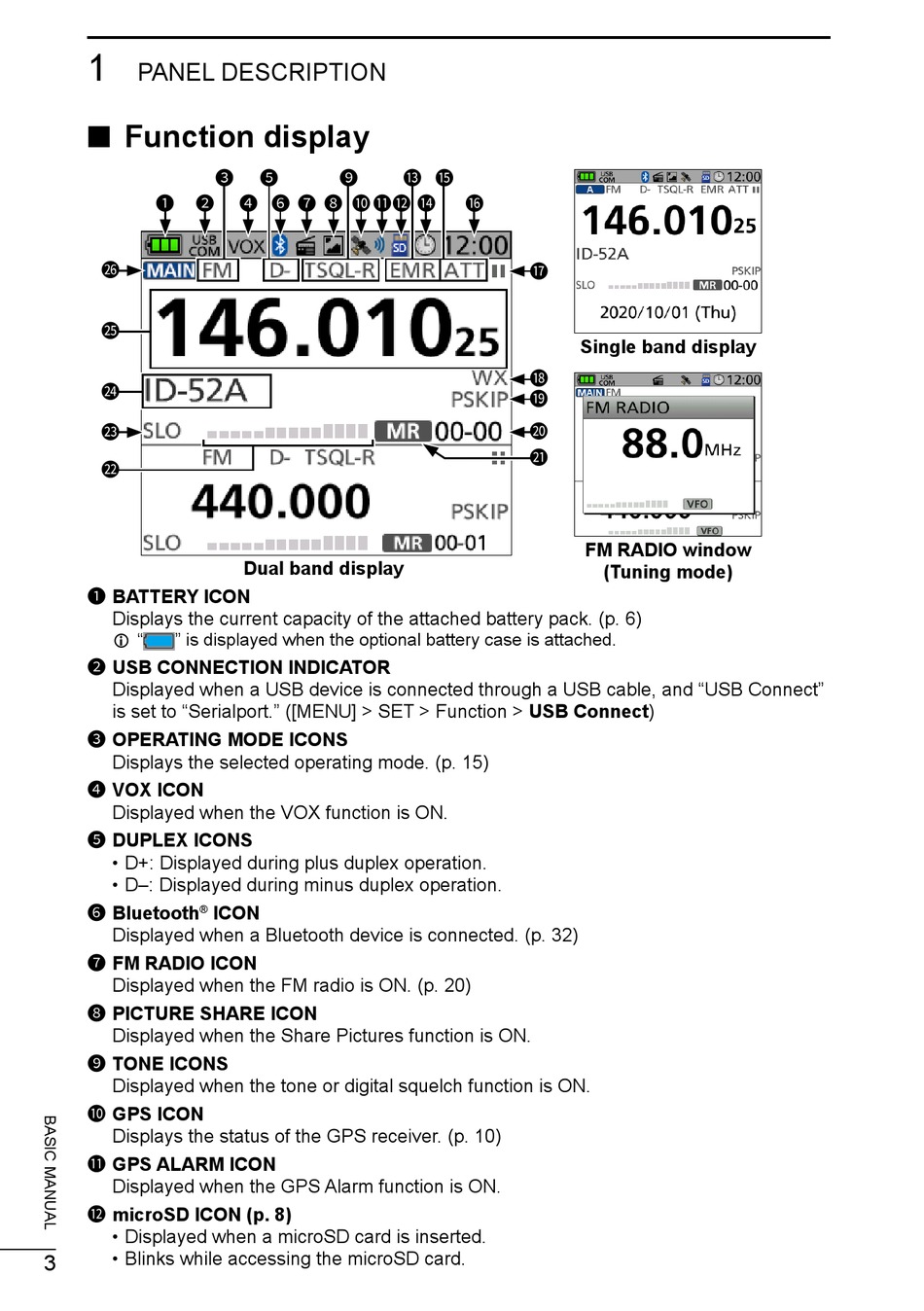

■ Function display

3
1 2
26
25
24
23
22
1 BATTERY ICON
Displays the current capacity of the attached battery pack. (p. 6)
L " " is displayed when the optional battery case is attached.
2 USB CONNECTION INDICATOR
Displayed when a USB device is connected through a USB cable, and "USB Connect"
is set to "Serialport." ([MENU] > SET > Function > USB Connect)
3 OPERATING MODE ICONS
Displays the selected operating mode. (p. 15)
4 VOX ICON
Displayed when the VOX function is ON.
5 DUPLEX ICONS
• D+: Displayed during plus duplex operation.
• D–: Displayed during minus duplex operation.
6 Bluetooth ICON
®
Displayed when a Bluetooth device is connected. (p. 32)
7 FM RADIO ICON
Displayed when the FM radio is ON. (p. 20)
8 PICTURE SHARE ICON
Displayed when the Share Pictures function is ON.
9 TONE ICONS
Displayed when the tone or digital squelch function is ON.
10 GPS ICON
Displays the status of the GPS receiver. (p. 10)
11 GPS ALARM ICON
Displayed when the GPS Alarm function is ON.
12 microSD ICON (p. 8)
• Displayed when a microSD card is inserted.
• Blinks while accessing the microSD card.
3
5 9 13
4 6 7 8 10 11 12 14 16
Dual band display
15
17
Single band display
18
19
20
21
FM RADIO window
(Tuning mode)
