2

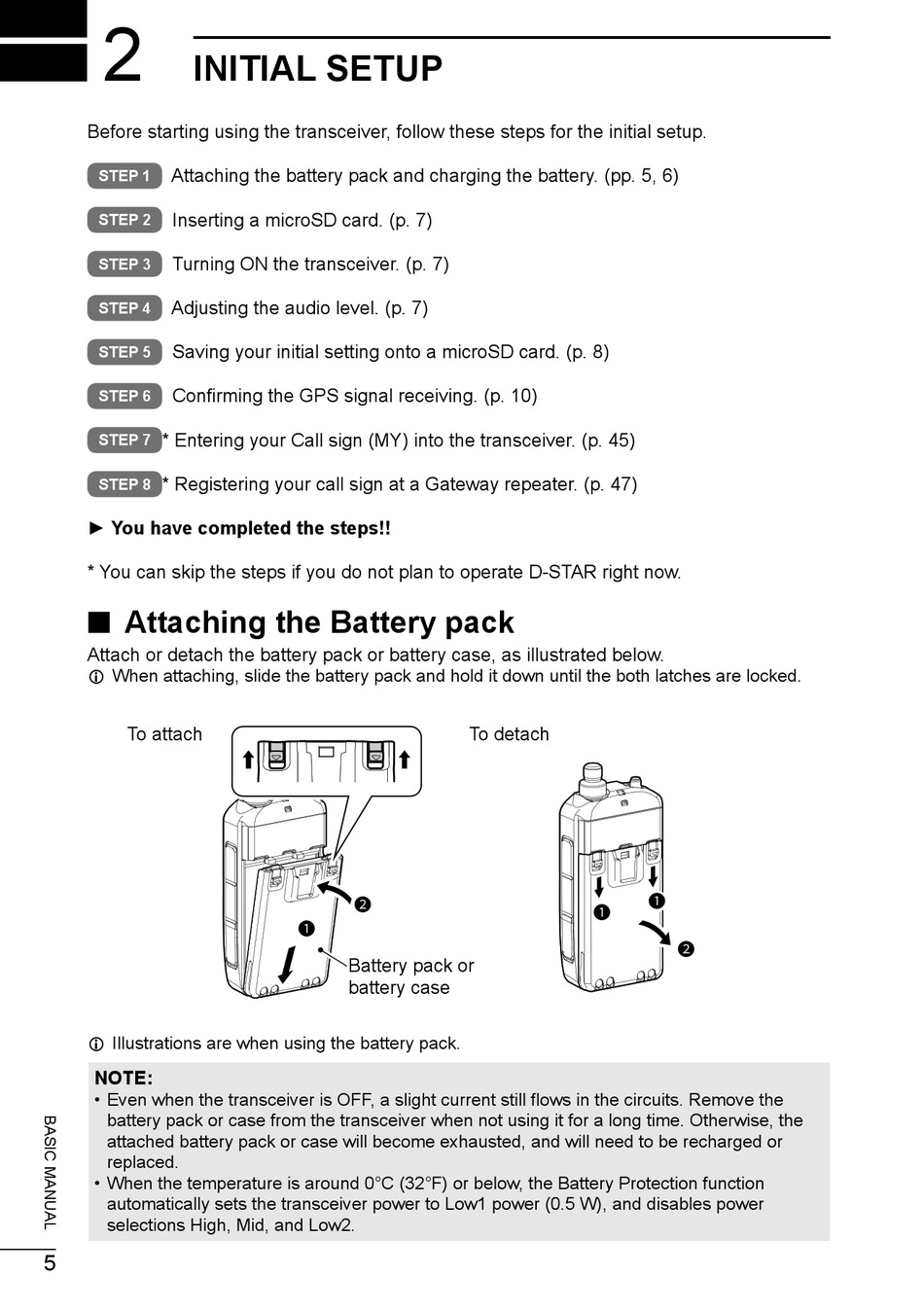

INITIAL SETUP

Before starting using the transceiver, follow these steps for the initial setup.
Attaching the battery pack and charging the battery. (pp. 5, 6)
STEP 1
Inserting a microSD card. (p. 7)
STEP 2
Turning ON the transceiver. (p. 7)
STEP 3
Adjusting the audio level. (p. 7)
STEP 4
Saving your initial setting onto a microSD card. (p. 8)
STEP 5
Confirming the GPS signal receiving. (p. 10)
STEP 6
* Entering your Call sign (MY) into the transceiver. (p. 45)
STEP 7
* Registering your call sign at a Gateway repeater. (p. 47)
STEP 8
► You have completed the steps!!
* You can skip the steps if you do not plan to operate D-STAR right now.

■ Attaching the Battery pack

Attach or detach the battery pack or battery case, as illustrated below.
L When attaching, slide the battery pack and hold it down until the both latches are locked.
To attach
L Illustrations are when using the battery pack.
NOTE:
• Even when the transceiver is OFF, a slight current still flows in the circuits. Remove the
battery pack or case from the transceiver when not using it for a long time. Otherwise, the
attached battery pack or case will become exhausted, and will need to be recharged or
replaced.
• When the temperature is around 0°C (32°F) or below, the Battery Protection function
automatically sets the transceiver power to Low1 power (0.5 W), and disables power
selections High, Mid, and Low2.
5
To detach
2
1
Battery pack or
battery case
1
1
2
