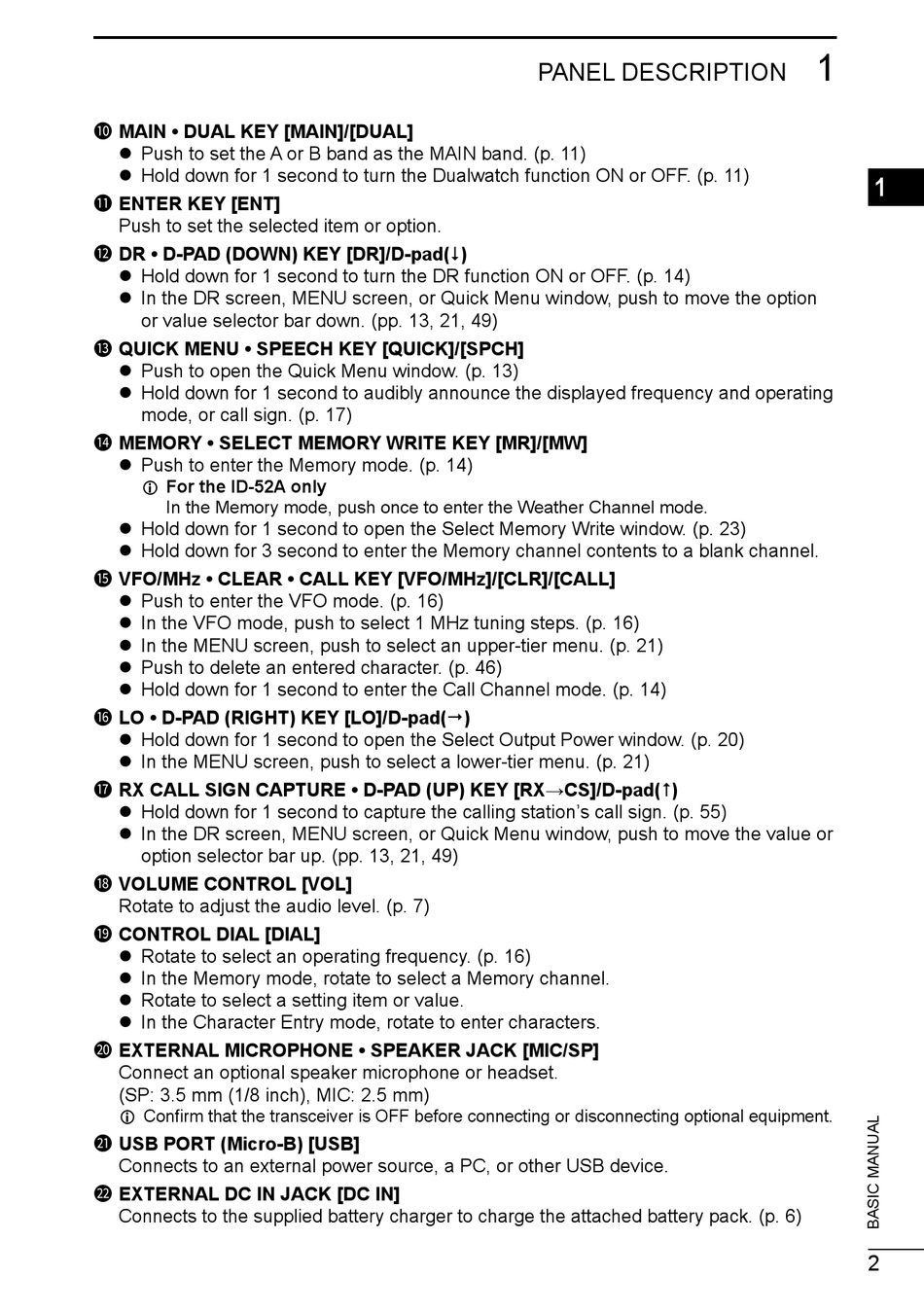

Icom ID-52A Basic Manual page 15

10 MAIN • DUAL KEY [MAIN]/[DUAL]
z Push to set the A or B band as the MAIN band. (p. 11)
z Hold down for 1 second to turn the Dualwatch function ON or OFF. (p. 11)
11 ENTER KEY [ENT]
Push to set the selected item or option.
12 DR • D-PAD (DOWN) KEY [DR]/D-pad()
z Hold down for 1 second to turn the DR function ON or OFF. (p. 14)
z In the DR screen, MENU screen, or Quick Menu window, push to move the option
or value selector bar down. (pp. 13, 21, 49)
13 QUICK MENU • SPEECH KEY [QUICK]/[SPCH]
z Push to open the Quick Menu window. (p. 13)
z Hold down for 1 second to audibly announce the displayed frequency and operating
mode, or call sign. (p. 17)
14 MEMORY • SELECT MEMORY WRITE KEY [MR]/[MW]
z Push to enter the Memory mode. (p. 14)
L For the ID-52A only
In the Memory mode, push once to enter the Weather Channel mode.
z Hold down for 1 second to open the Select Memory Write window. (p. 23)
z Hold down for 3 second to enter the Memory channel contents to a blank channel.
15 VFO/MHz • CLEAR • CALL KEY [VFO/MHz]/[CLR]/[CALL]
z Push to enter the VFO mode. (p. 16)
z In the VFO mode, push to select 1 MHz tuning steps. (p. 16)
z In the MENU screen, push to select an upper-tier menu. (p. 21)
z Push to delete an entered character. (p. 46)
z Hold down for 1 second to enter the Call Channel mode. (p. 14)
16 LO • D-PAD (RIGHT) KEY [LO]/D-pad()
z Hold down for 1 second to open the Select Output Power window. (p. 20)
z In the MENU screen, push to select a lower-tier menu. (p. 21)
17 RX CALL SIGN CAPTURE • D-PAD (UP) KEY [RX→CS]/D-pad()
z Hold down for 1 second to capture the calling stationʼs call sign. (p. 55)
z In the DR screen, MENU screen, or Quick Menu window, push to move the value or
option selector bar up. (pp. 13, 21, 49)
18 VOLUME CONTROL [VOL]
Rotate to adjust the audio level. (p. 7)
19 CONTROL DIAL [DIAL]
z Rotate to select an operating frequency. (p. 16)
z In the Memory mode, rotate to select a Memory channel.
z Rotate to select a setting item or value.
z In the Character Entry mode, rotate to enter characters.
20 EXTERNAL MICROPHONE • SPEAKER JACK [MIC/SP]
Connect an optional speaker microphone or headset.
(SP: 3.5 mm (1/8 inch), MIC: 2.5 mm)
L Confirm that the transceiver is OFF before connecting or disconnecting optional equipment.
21 USB PORT (Micro-B) [USB]
Connects to an external power source, a PC, or other USB device.
22 EXTERNAL DC IN JACK [DC IN]
Connects to the supplied battery charger to charge the attached battery pack. (p. 6)
PANEL DESCRIPTION
