Connecting To A Bluetooth ® Headset - Icom ID-52A Basic Manual

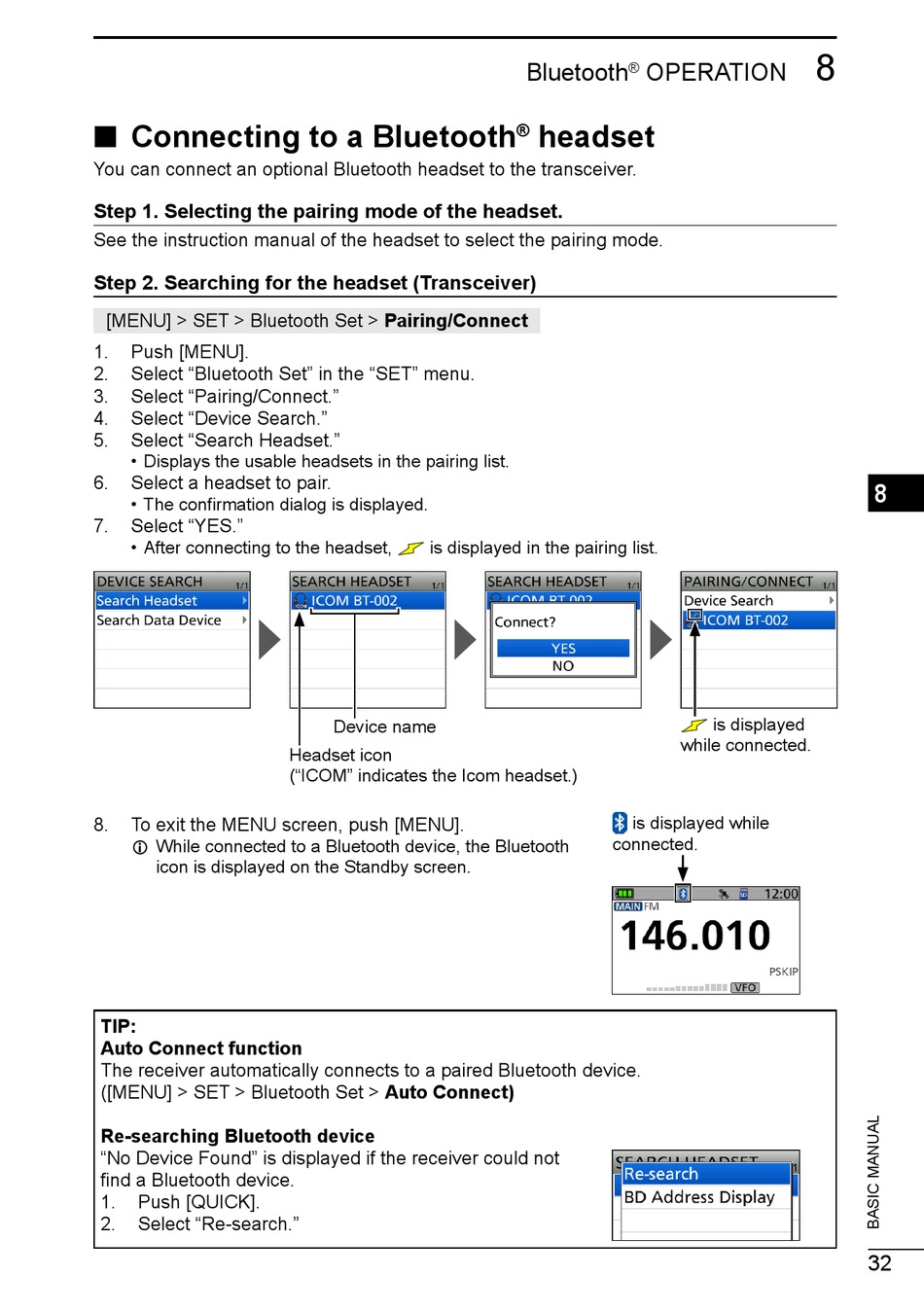

■ Connecting to a Bluetooth
You can connect an optional Bluetooth headset to the transceiver.
Step 1. Selecting the pairing mode of the headset.
See the instruction manual of the headset to select the pairing mode.
Step 2. Searching for the headset (Transceiver)
[MENU] > SET > Bluetooth Set > Pairing/Connect
1. Push [MENU].
2. Select "Bluetooth Set" in the "SET" menu.
3. Select "Pairing/Connect."
4. Select "Device Search."
5. Select "Search Headset."
• Displays the usable headsets in the pairing list.
6. Select a headset to pair.
• The confirmation dialog is displayed.
7. Select "YES."
• After connecting to the headset,
8. To exit the MENU screen, push [MENU].
L While connected to a Bluetooth device, the Bluetooth
icon is displayed on the Standby screen.
TIP:
Auto Connect function
The receiver automatically connects to a paired Bluetooth device.
([MENU] > SET > Bluetooth Set > Auto Connect)
Re-searching Bluetooth device
"No Device Found" is displayed if the receiver could not
find a Bluetooth device.
1. Push [QUICK].
2. Select "Re-search."
is displayed in the pairing list.
Device name
Headset icon
("ICOM" indicates the Icom headset.)
Bluetooth OPERATION
®
headset
®
while connected.
is displayed while
connected.
8
1
2
3
4
5
6
7
8
9
10
11
12
13
is displayed
14
15
16
17
18
32
