ADTEK CM1 Series User Manual

Programmable meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

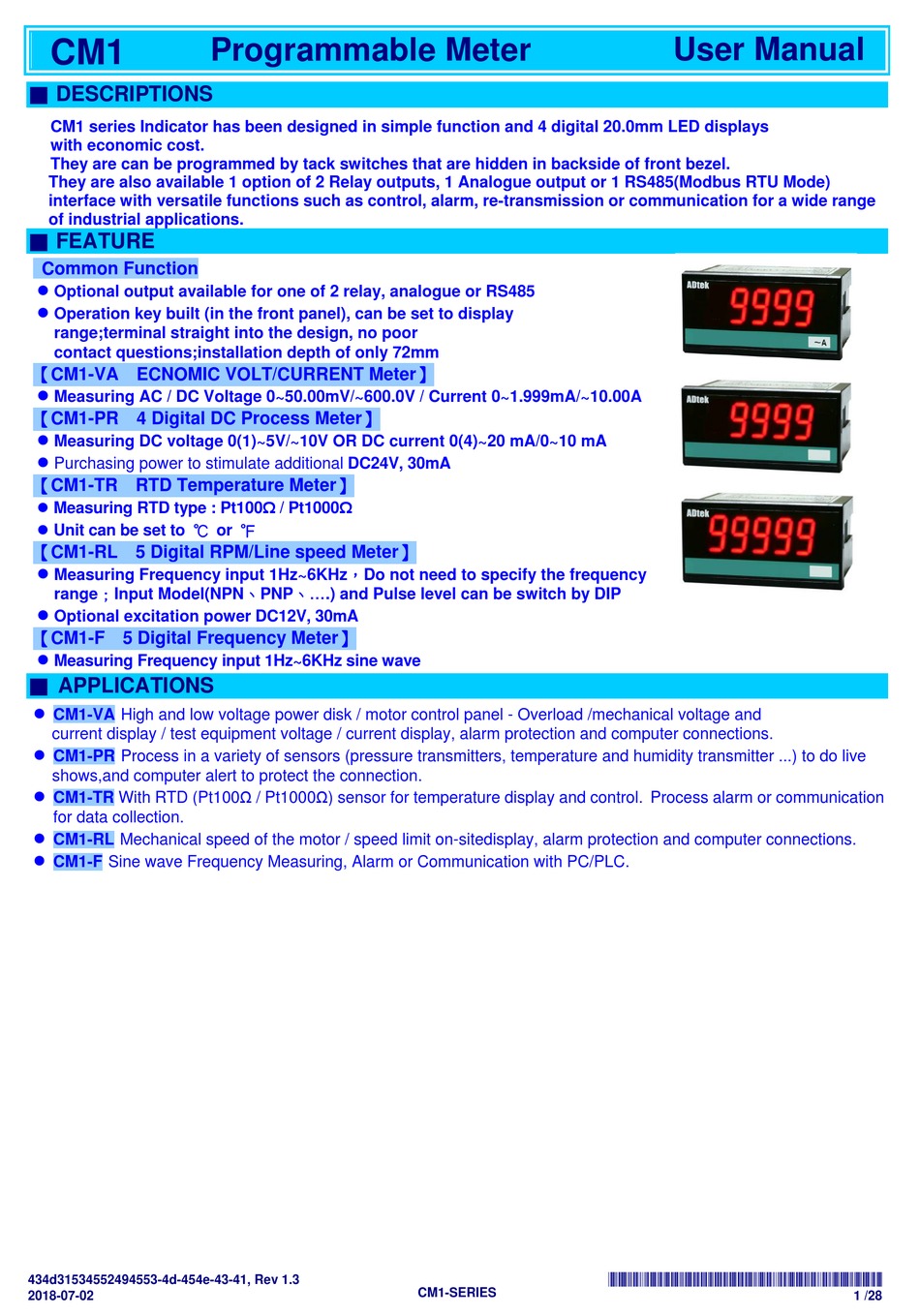

CM1
■
DESCRIPTIONS
CM1 series Indicator has been designed in simple function and 4 digital 20.0mm LED displays
with economic cost.
They are can be programmed by tack switches that are hidden in backside of front bezel.
They are also available 1 option of 2 Relay outputs, 1 Analogue output or 1 RS485(Modbus RTU Mode)
interface with versatile functions such as control, alarm, re-transmission or communication for a wide range
of industrial applications.
■
FEATURE
Common Function
●
Optional output available for one of 2 relay, analogue or RS485
●
Operation key built (in the front panel), can be set to display
range;terminal straight into the design, no poor
contact questions;installation depth of only 72mm
【CM1-VA ECNOMIC VOLT/CURRENT Meter】
●
Measuring AC / DC Voltage 0~50.00mV/~600.0V / Current 0~1.999mA/~10.00A
【CM1-PR 4 Digital DC Process Meter】
●
Measuring DC voltage 0(1)~5V/~10V OR DC current 0(4)~20 mA/0~10 mA
●
Purchasing power to stimulate additional DC24V, 30mA
【CM1-TR RTD Temperature Meter】
 Measuring RTD type : Pt100Ω / Pt1000Ω
 Unit can be set to ℃ or ℉
【CM1-RL 5 Digital RPM/Line speed Meter】
●
Measuring Frequency input 1Hz~6KHz，Do not need to specify the frequency
range；Input Model(NPN、PNP、....) and Pulse level can be switch by DIP
●
Optional excitation power DC12V, 30mA
【CM1-F 5 Digital Frequency Meter】
●
Measuring Frequency input 1Hz~6KHz sine wave
■
APPLICATIONS
●
CM1-VA High and low voltage power disk / motor control panel - Overload /mechanical voltage and
current display / test equipment voltage / current display, alarm protection and computer connections.
●
CM1-PR Process in a variety of sensors (pressure transmitters, temperature and humidity transmitter ...) to do live
shows,and computer alert to protect the connection.
●
CM1-TR With RTD (Pt100Ω / Pt1000Ω) sensor for temperature display and control. Process alarm or communication
for data collection.
●
CM1-RL Mechanical speed of the motor / speed limit on-sitedisplay, alarm protection and computer connections.
●
CM1-F Sine wave Frequency Measuring, Alarm or Communication with PC/PLC.
434d31534552494553-4d-454e-43-41, Rev 1.3
2018-07-02
11
Programmable Meter
CM1-SERIES
User Manual
*434d31534552494553-4d-454e-43-41*
1 /28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADTEK CM1 Series

Summary of Contents for ADTEK CM1 Series

  • Page 1 Programmable Meter ■ DESCRIPTIONS CM1 series Indicator has been designed in simple function and 4 digital 20.0mm LED displays with economic cost. They are can be programmed by tack switches that are hidden in backside of front bezel. They are also available 1 option of 2 Relay outputs, 1 Analogue output or 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication for a wide range of industrial applications.

  • Page 2: Dimensions & Panel Cut Out

    ■ INSTALLATION Please check the specification, wire diagrams and functions on the label of the meter before installation.  ■ INSTALLATION DIMENSIONS & Panel Cut Out Front View 48.0 60.0 96.0 13.0 Panel Cut out +0.2 44.0 Unit: mm +0.2 92.0 ...
  • Page 3 Input Signal Connection CM1-VA Input Connection MAX. Input: 600V or 10A Current Shunt Remark: PT can not short in secondary； CT can not open in secondary CM1-PR Input Connection OUTPUT 2-wire sensor transmitter (One output available of Relay,Analogue or RS485) connection 4(0)~20mA Input Connection 24Vdc...

  • Page 4: Front Panel

    ■ OPERATING ■ FRONT PANEL ● Stickers Communication Relay status R L 1 status indication indication Hi Action Lo Action ● Display Engineer Unit Hi Action &Hold Lo Action &Hold screen ● Unit stickers: kinds  Number screen ● ed high-brightness LED ...

  • Page 5: Operating Diagram

     OPERATING DIAGRAM (The detail description of operation, please refer to operating manual.) Power ON Self-diagnosis Show the model number cm!va: Voltage and current cm!pr: 0~10V/4~20mA cm1-tr: Pt100Ω/Pt1000Ω cm!rl: Speed / line speed cm1-f: Frequency ver!0 Show the firmware version MEASURING PAGE Access User Leve...
  • Page 6 0. User Level 0-01 0-02 0-03 1S e c Minimum Maximum Reset the saved MEASURING value of value of PV value of PAGE Maximum & saving PV saving Minimum 0-04 Relay1 Set-point 0-07 0-06 0-05 rYrst model of the meter Reset for Relay 2 firmware version...
  • Page 7 B. RELAY GROUP B-01 B-02 B-03 Start band Start delay Relay 1 energized for Relay time for energized Relay mode energized B-04 Relay 1 Hysteresis B-05 Relay 1 energized delay time B-06 Relay 1 de-energized delay time B-10 B-07 Relay 2 Relay 2 ry@fd ry@md...

  • Page 8: Function Description

     OPERATING DIAGRAM (Into the User Level) 0-01 0-02 0-03 9999 MEASURING Minimum value Maximum value Reset the saved value of Maximum PAGE of PV saving of PV saving & Minimum 0-04 Relay1 Set-point ry!sp 0-07 0-06 0-05 model of the meter Relay 2 Set-point Reset for firmware version...

  • Page 9: Parameters & Setting

    ry!sp (Set-point of relay 1): : -1999~9999 Relay 1 Setting Range Set-point (CM1-RL/CM1-F:-19999~99999) Shift Down Enter ry@sp (Set-point of relay 2): : -1999~9999 Relay 2 Setting Range Set-point (CM1-RL/CM1-F:-19999~99999) 10)0 Shift Down Enter 99(9 rYrst rYrst (Reset relay hold): Reset for Setting Range NO/YES energized Latch of Relay...
  • Page 10  Input parameter group CM1-VA/CM1-PR/CM1-TR A-01 A-02 A-03 Decimal Point of Low scale of PV High scale of PV A-04 Fine Low point Adjustment for PV display A-05 Fine high point Adjustment for PV display Note: If the model is CM1-TR, the Lo.Sc(A-02) and Hi.Sc(A-03) are fixed.
  • Page 11 hIsc(High scale): : -1999~9999 High scale of PV Setting Range (CM1-RL/CM1-F:-19999~99999) Note: If the model is CM1-TR, the Lo.Sc(A-02) and 99(9 Shift Down Enter Hi.Sc(A-03) are fixed. pVzro: Fine Zero Adjustment for pVzro 設定範圍: -1999~9999 PV display Shift Down Enter For Zero &...
  • Page 12 avg (Average): : 1(NONE)~99 times Average update for PV Setting Range The meter’s sampling is 15cycle/sec Shift Down Enter If the [ avg](Average) set to be 3 to express the display update with 5 times/sec. The meter will calculate the sampling 1-3 and update the display value.
  • Page 13 CM1-RL/CM1-F A-01 A-02-1 A-02-2 DisplayType Input Pulse Line Speed precedes set； Display units Line selection speed/RPM Selection A-02-3 Shaft diameter A-03 Decimal Point A-04 Ratio Factor of 1 秒 Pass Code setting A-10 A-05 Low Cut the PV foraccess to programming level A-09 Digital filter...
  • Page 14 pVtyp selected (lNspd)，the fun. Setting Range m/mn: (M/min) will display Eunit(Engineer Unit): cm/mn: (CM/min) Line speed display unit selection yd/mn: (Yd/min) ft/mn: (Ft/min) & Enter Cycle selection pVtyp selected (lNspd) ，the fun. Setting Range )1000 will display 0.0001~9.9999M(公尺) diamt(Diemeter): Shift Down Enter (9999...
  • Page 15 range:Display Range Mode range Setting Range auto(Auto): Automatically auto adjust the decimal point position;according to the size of the input frequency,automaticall y switching the decimal 。 point position semi(Semi-Auto): Semi-automatic adjustment of the decimal pointposition; according to the size of the input frequency,automaticall y switching the decimal point position;but no more...
  • Page 16  Relay function parameter group B-01 B-02 B-03 relay Start band for Start delay time Relay 1 Relay energized for Relay energized mode energized B-04 Relay 1 Hysteresis B-05 Relay 1 energized delay time B-06 Relay 1 ry!fd de-energized delay time B-10 B-07 Relay 2 de-energized...
  • Page 17 ry!md ry!md :Relay 1 energized mode Programmable off(Turn off the Relay)： Turn off the Relay andindication LED. lo(Low Level Energized)： Low Level Energized;Relay will energize when PV <Set-Point. hi (High Level Energized)： High Level Energized;Relay will energize when PV >Set-Point. hIhld / lOhld (High / Low R e la y E n e rg i z e d L a t ch &...
  • Page 18 ry@rd ry@rd :Relay 2 energized delay : 0:00.0~9 分:59.9 秒 Setting Range time the same as ry@rd Shift Down Enter ry@fd :Relay 2 de-energized delay ry@fd : 0:00.0~9 分:59.9 秒 Setting Range time the same as ry@fd Shift Down Enter ...
  • Page 19 aOls :Analogue Output relative : -1999~9999 Setting Range 000)0 Low Scale (CM1-RL/CM1-F:-19999~99999) A4-20 Ex. Output range set to be Shift Down Enter (4~20mA) is relative to display [aOls] 0~99.99； User can set the 2)00 (Ao.LS) ， to be At meantime, the output signal will be 4mA aOhs :Analogue Output relative : -1999~9999...
  • Page 20 aOlmt :Analog Output High Limit Setting Range: 0.00~110.00% of FS (CM1-RL/CM1-F has no the Fun.) Shift Down Enter  RS485 Group (The group will be hidden, if the relay function is not to be specify ) E-01 E-02 E-03 rs485 Device Baud rate Parity...
  • Page 21  INIT Group F-01 Initialization set:7170 INDEX Step FUNCTION DESCRIPTION PARAMETERS & SETTING init INIT GROUP INDEX PAGE In following pages, press group 1 second to return theINIT GROUP INDEX PAGE. init init: initialization (SET:7170) : 0~9999 Setting Range Shift Down Enter UNCTION DEFINE...

  • Page 22: Display Functions

    : [lOsc]: )00, [hIsc]: 5)00 SCALE Default Change: [lOsc]: 2%00, [hIsc]: 9(99 [ hIsc] The meter’s sampling is 15cycle/sec；[ Mavg] set to 9(99 3 expressed。 Reverse slop the display update with 15 times/sec， [ hIsc] In the first updated display value will be same as 5)00 average function.
  • Page 23 ■ Relay Functions CM1 series offer the 2 relay outputs， Different control functions can be individually planned its related functions can ； be set at the button panel . Details are as follows  Relay energized mode [ ry_.md] selection：Hi / Lo hi) (Fig.1-): Relay will be energized,...
  • Page 24 Default: [ aOls]: )00, [ aOhs]: 8)00 SCALE Change to [ aOls]: 2)00, [ aOhs]: 9(99 CM1 series offers a Modbus RTU 9(99 mode protocol.Communication speed up to 38400 [ aOhs] bps; users can useRS485 set parameters, read the display.。 [ aOhs] 8)00 ●...

  • Page 25: Error Massage

    ■ ERROR MASSAGE SELF-DIAGNOSIS AND ERROR CODE DISPLAY DESCRIPTION REMARK 1.input specification type Replace the correct match signal meter, or by mail to the company to ovfl -ovfl (V / A / mA ..) are modify the specifications correct and match the signal range field? 3.
  • Page 26 RS485(Modbus RTU Mode) ■ ■ Modbus RTU Mode Communications protocol 一、 by Function 03H (Read Holding Registers) Read instructions Request Data Frame ex: Read the display data (0000H start aWord) SLAVE FUNCTION Starting Starting No. of Word No. of Word Address Address Hi Address Lo...
  • Page 27 【RS485 Group】 Name Address Range Explain Initial Write/Read Note adres 000Dh 1~255 RS485 address RS485 baud rate baud 000Eh 0:1200 1:2400 2:4800 3:9600 4:19200 5:38400 RS485 parity prity 000Fh 0: n-8-1 1: n-8-2 2: odd-8-1 3: even-8-1 【INIT Group】 Name Address Range Explain...
  • Page 28 CM1-RL/CM1-F  User Level Name Address Range Explain Initial Write/Read Note 0000h Present Value (*High word) 0~99999 0001h Present Value (*Low word) 0002h The Minimum of PV (*High word) 0~99999 0003h The Minimum of PV (*Low word) 0004h The Maximum of PV (*High word) 0~99999 0005h The Maximum of PV (*Low word)
