4.1.3. Reference Design of RF Antenna Interfaces

A reference design of main and Rx-diversity antenna interfaces is shown as below. It is recommended to reserve a
π-type matching circuit for better RF performance, and the π-type matching components (R1/C1/C2 and R2/C3/C4)
should be placed as close to the antennas as possible. The capacitors are not mounted by default.
NOTES
AG521R-NA_QuecOpen_Hardware_Design
788-798
704-716
814-849
824~849
/
2500~2570
663-698
/
Module
ANT_MAIN
ANT_DIV

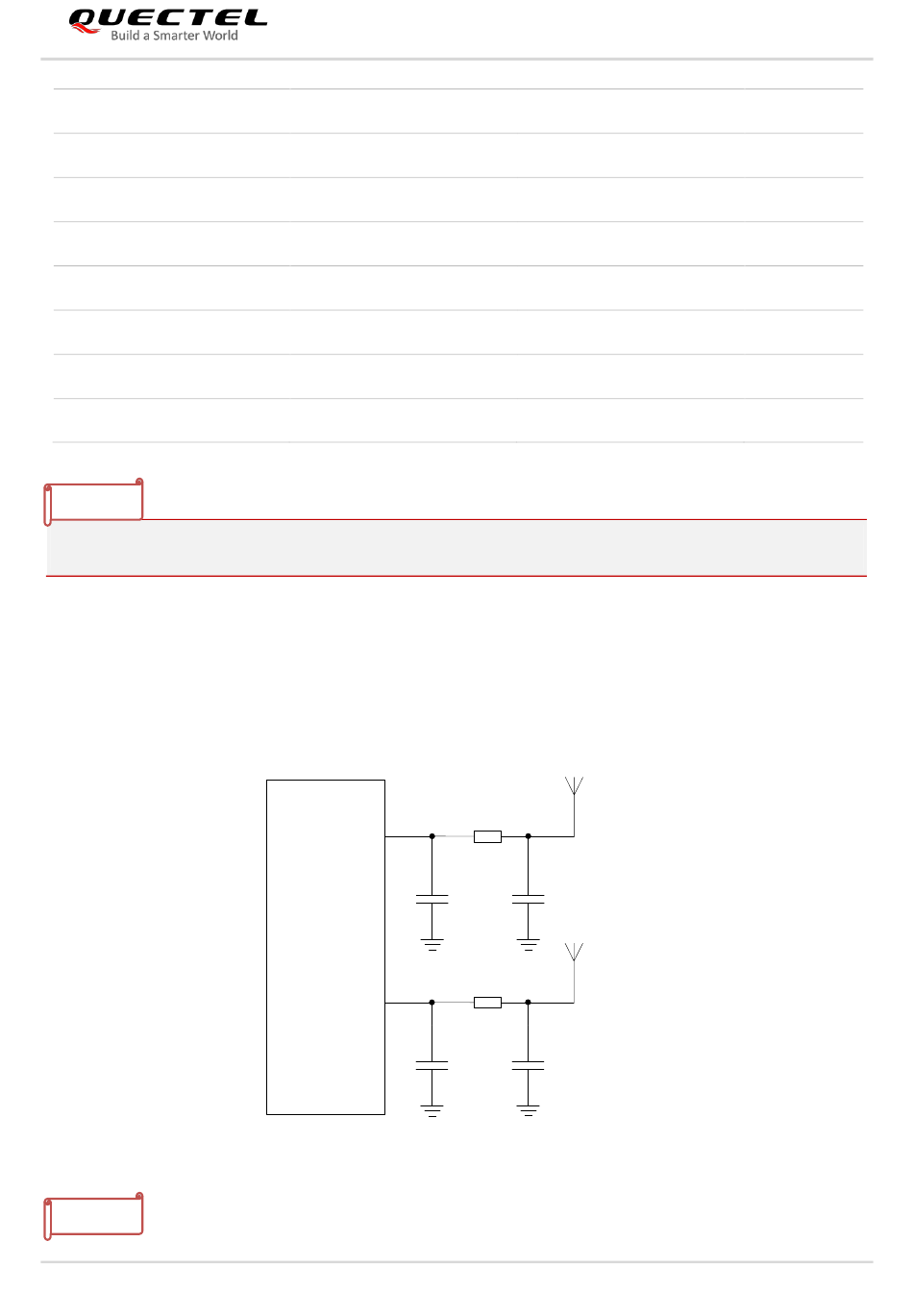

Figure 31: Reference Circuit of RF Antenna Interfaces
