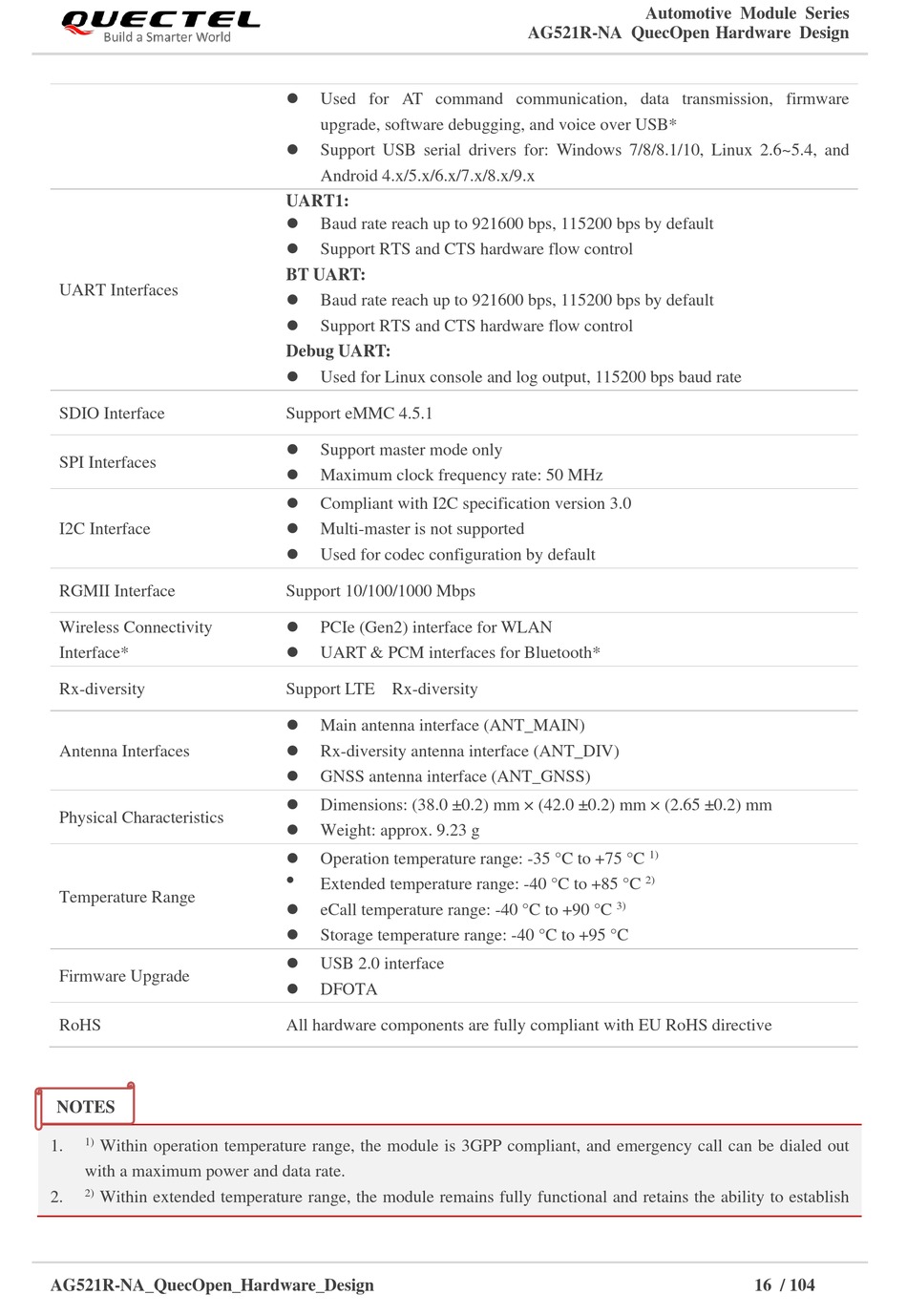

Quectel QuecOpen AG521R-NA Hardware Design page 17

UART Interfaces
SDIO Interface
SPI Interfaces
I2C Interface
RGMII Interface
Wireless Connectivity
Interface*
Rx-diversity
Antenna Interfaces
Physical Characteristics
Temperature Range
Firmware Upgrade
RoHS
NOTES
1)
1. Within operation temperature range, the module is 3GPP compliant, and emergency call can be dialed out
with a maximum power and data rate.
2)
2. Within extended temperature range, the module remains fully functional and retains the ability to establish
AG521R-NA_QuecOpen_Hardware_Design
⚫
Used for AT command communication, data transmission, firmware
upgrade, software debugging, and voice over USB*
⚫
Support USB serial drivers for: Windows 7/8/8.1/10, Linux 2.6~5.4, and
Android 4.x/5.x/6.x/7.x/8.x/9.x
UART1:
⚫
Baud rate reach up to 921600 bps, 115200 bps by default
⚫
Support RTS and CTS hardware flow control
BT UART:
⚫
Baud rate reach up to 921600 bps, 115200 bps by default
⚫
Support RTS and CTS hardware flow control
Debug UART:
⚫
Used for Linux console and log output, 115200 bps baud rate
Support eMMC 4.5.1
⚫
Support master mode only
⚫
Maximum clock frequency rate: 50 MHz
⚫
Compliant with I2C specification version 3.0
⚫
Multi-master is not supported
⚫
Used for codec configuration by default
Support 10/100/1000 Mbps
⚫
PCIe (Gen2) interface for WLAN
⚫
UART & PCM interfaces for Bluetooth*
Support LTE Rx-diversity
⚫
Main antenna interface (ANT_MAIN)
⚫
Rx-diversity antenna interface (ANT_DIV)
⚫
GNSS antenna interface (ANT_GNSS)
⚫
Dimensions: (38.0 ± 0.2) mm × (42.0 ± 0.2) mm × (2.65 ± 0.2) mm
⚫
Weight: approx. 9.23 g
⚫
Operation temperature range: -35 ° C to +75 ° C
⚫
Extended temperature range: -40 ° C to +85 ° C
⚫
eCall temperature range: -40 ° C to +90 ° C
⚫
Storage temperature range: -40 ° C to +95 ° C
⚫
USB 2.0 interface
⚫
DFOTA
All hardware components are fully compliant with EU RoHS directive
Automotive Module Series
AG521R-NA QuecOpen Hardware Design
1)
2)
3)
16 / 104
