5

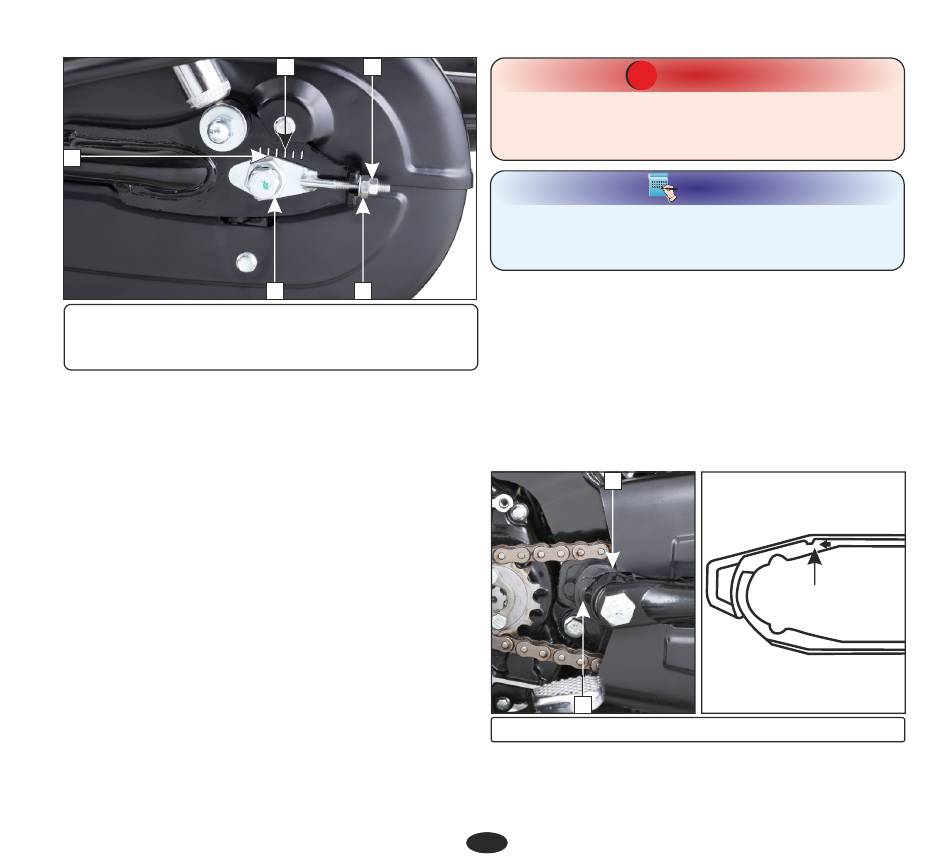

(2) Sleeve nut
(4) Drive chain adjusting nut
(5) Index mark
If the drive chain slack is excessive when the
•
rear axle is moved to the farthest limit of
adjustment, the drive chain is worn and must
be replaced. Tighten the sleeve nut and rear
axle nut.
- Sleeve nut torque: 4.4 kgf-m
- Rear axle nut torque: 5.4 kgf-m
Check the drive chain slack again.
•
Rear brake pedal free play and stop lamp
•
switch free play are affected when
repositioning the rear wheel to adjust drive
chain slack. Check rear brake pedal free
play and adjust as necessary (page 42).
Lubrication
Turn the engine "OFF", park the vehicle on
•
its main stand and shift the transmission
into neutral.
Lubricate the drive chain by applying liberal
•
amount of SAE#90 oil.
6 3
2 4
(3) Drive chain lock nut
(6) Scale graduation
! !
Regular adjustment and lubrication as per the
maintenance schedule would ensure high
performance and longer life.
Visit Authorised
for inspection, cleaning, lubrication and
adjustment of drive chain at every 2000 km

DRIVE CHAIN SLIDER INSPECTION

(Refer to "Maintenance Schedule" on
(page 27).
Check the drive chain slider (1) for wear, the
chain slider must be replaced if it is worn to the
bottom of the cutout or wear limit (2) is
reached. For replacement, visit your
Authorised
Hero MotoCorp
2
1
(1) Drive chain slider
37 40
CAUTION
NOTE
workshop
Hero MotoCorp
workshop.
CUTOUT
(2) Wear limit
.
