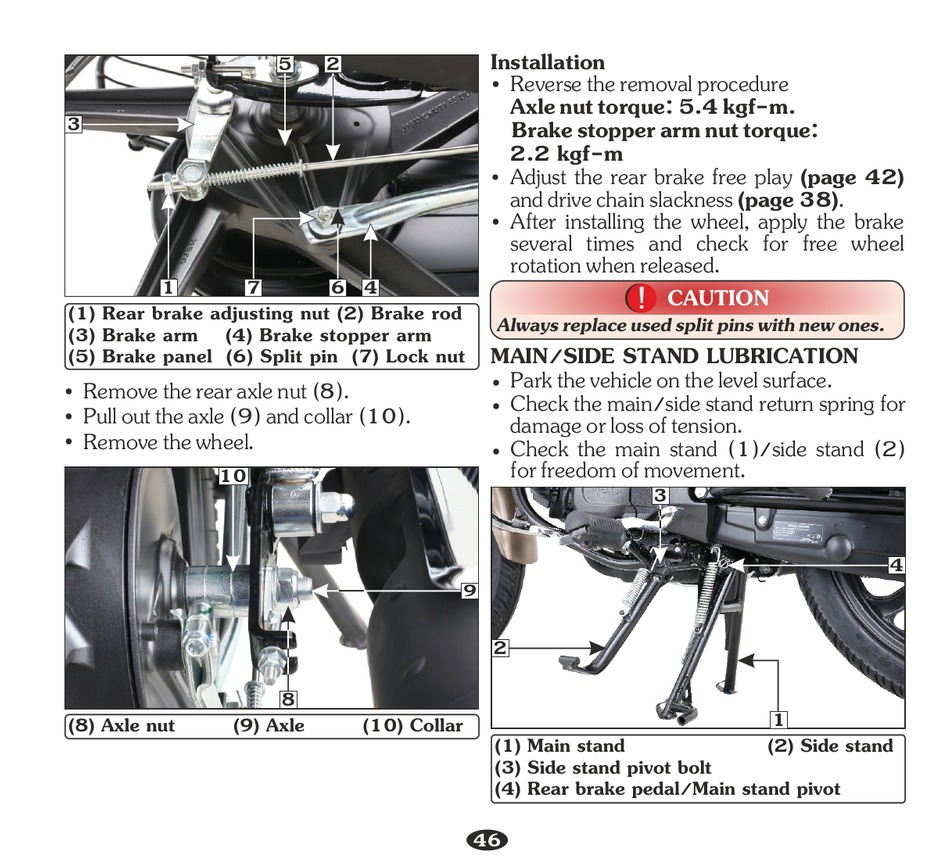

Main/Side Stand Lubrication - HERO SPLENDOR+ PROGRAMMED FI Manual

3
1
(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
Remove the rear axle nut (8).
•
Pull out the axle (9) and collar (10).
•
Remove the wheel.
•
10
(8) Axle nut (9) Axle
5 2
7 6 4
8
(10) Collar
Installation
Reverse the removal procedure
•
Axle nut torque: 5.4 kgf-m.
Brake stopper arm nut torque:
2.2 kgf-m
Adjust the rear brake free play (page 42)
Ÿ
and drive chain slackness (page 38).
After installing the wheel, apply the brake
•
several times and check for free wheel
rotation when released.
! !
Always replace used split pins with new ones.

MAIN/SIDE STAND LUBRICATION

Park the vehicle on the level surface.
•
Check the main/side stand return spring for
•
damage or loss of tension.
Check the main stand (1)/side stand (2)
•
for freedom of movement.
9
2
(1) Main stand
(3) Side stand pivot bolt
(4) Rear brake pedal/Main stand pivot
46
CAUTION
3
1
(2) Side stand
4
