Clean the air cleaner housing using a shop
•
towel.
Install the new air cleaner element
•
Install the air cleaner element cover.
•
Install the left side cover.
•

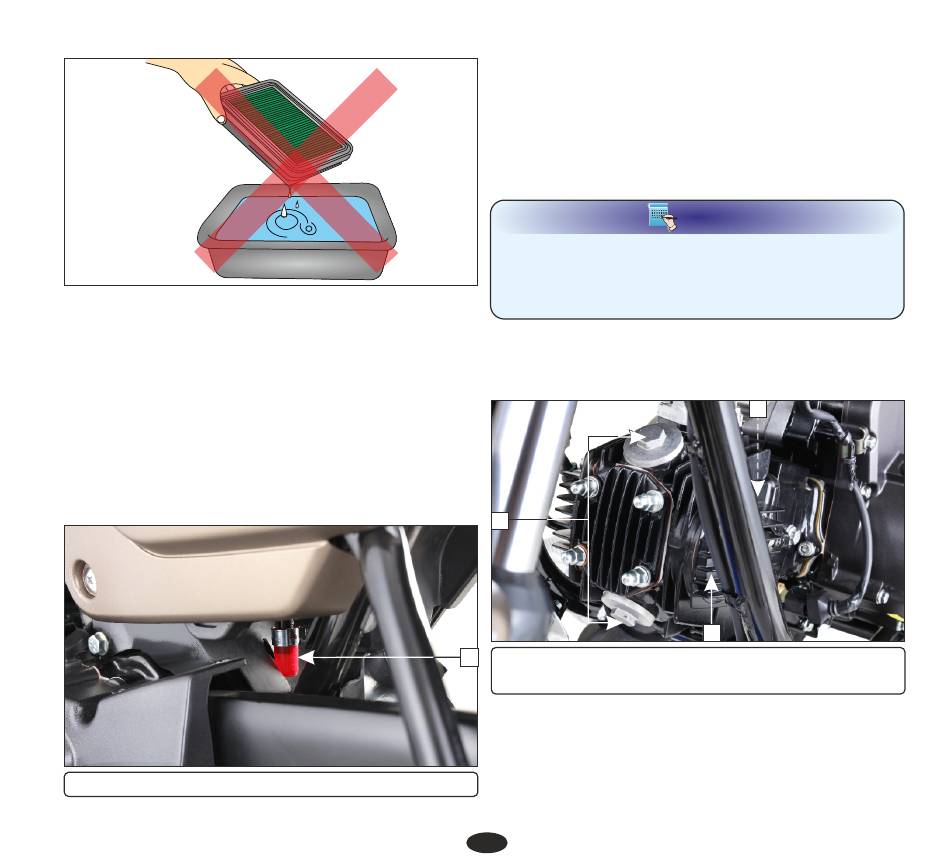

Air cleaner drain tube plug cleaning
Remove the drain tube (1) and drain the
deposit into a container.
Follow the above process more frequently
when riding in rain or at full throttle.
(1) Drain tube

VALVE CLEARANCE ADJUSTMENT

Excessive valve clearance will cause noise, and
little or no clearance will prevent the valve
from closing and cause valve damage and
power loss. Check valve clearance at the
specified intervals (page 27).
The checking or adjusting of valve clearance
should be performed while the engine is cold.
The clearance will change as the engine
temperature rises.
Remove the tappet covers (1) and cylinder
•
head left side cover (3) with gasket (2) by
removing the bolt/sealing washer.
1
1
(1) Tappet covers
(3) Cylinder head left side cover
Remove the timing hole cap (4). Rotate the
•
cam sprocket (7) clockwise using the
special tool (8) until the 'T' mark (5) on the
flywheel coincides with the index mark (6)
35
NOTE
2
3
(2) Gasket
