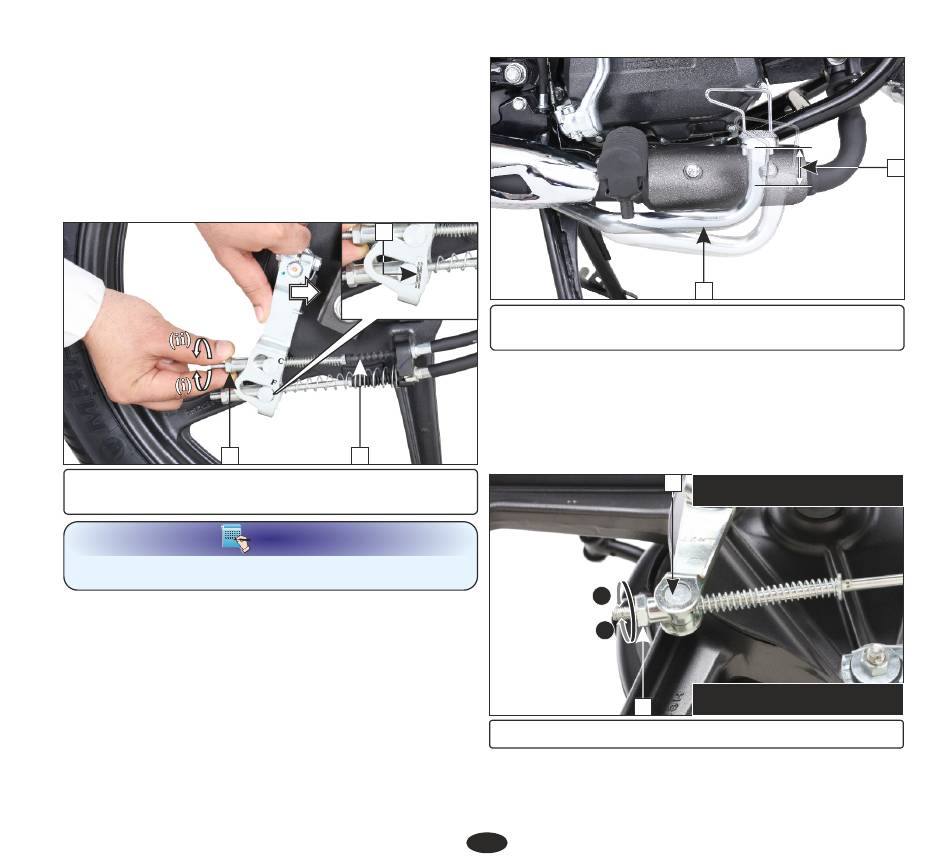

HERO SPLENDOR+ PROGRAMMED FI Manual page 45

After ensuring the gap, turn the second
•
adjuster nut counterclockwise by half
rotation.
Check the free play of rear brake pedal.
•
FREE PLAY: 20-30 mm
If the free play is out specification turn the
•
adjuster nut to obtain desired free play.
6
(6) Second adjuster nut (7) Joint
(i) Decrease free play
"F" & "C" is marked on integrated brake arm.
(d) Rear brake inspection
Adjustment
Park the vehicle on its main stand.
•
Measure the brake pedal (1) free play
•
before the brake starts to take hold.
Free play (2) should be 20-30 mm.
7
B
(ii) Increase free play
NOTE
(1) Rear brake pedal
(2) Free play: 20-30 mm
If adjustment is necessary, turn the rear
•
brake adjusting nut (3).
Make sure that the cut-out on the adjusting
•
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
B
A
3
(3) Adjusting nut
CW- Clockwise, ACW- Anticlockwise
42
1
4
(A) Decrease free play (CW)
(B) Increase free play (ACW)
(4) Brake joint pin
2
