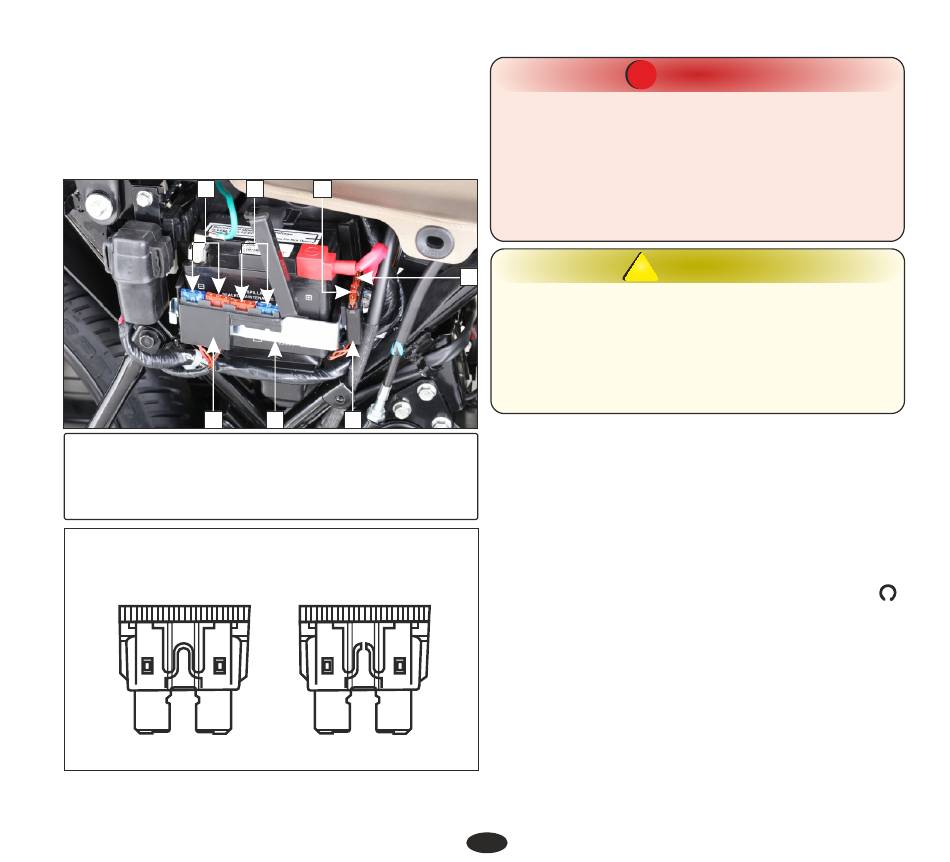

Fuse box (B) : Mounted on the battery
clamp (1).
Fuse ype: t
Blade fuse
Circuit fuse (4) : 10A
Spare fuse (5) : 10A
2
A
(A) & (B) Fuse box
(2) Circuit fuse: 15A & 10A
(3) Spare fuse: 15A & 10A
(4) Circuit fuse: 10A
GOOD FUSE
3 4
1 B
(1) Battery clamp
(5) Spare fuse: 10A
BLOWN FUSE
! !
Do not attempt to start or ride the vehicle
•
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
Turn the ignition switch "OFF" before
•
checking or replacing the fuse to prevent
accidental short-circuiting.
! !
5
Never use a fuse with a different rating from
•
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
Battery gives off explosive gases. Keep
•
sparks, flames & cigarettes away.

STOP LAMP SWITCH

The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 42)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows:
Turn the ignition switch to the "ON" ( )
•
position.
Turn the adjusting nut (2) to position stop
•
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
depressed to the limit of its free play. Turn
the adjusting nut in direction (A) to advance
switch timing or in direction (B) to retard
switch timing.
52
