Air Cleaner - HERO SPLENDOR+ PROGRAMMED FI Manual

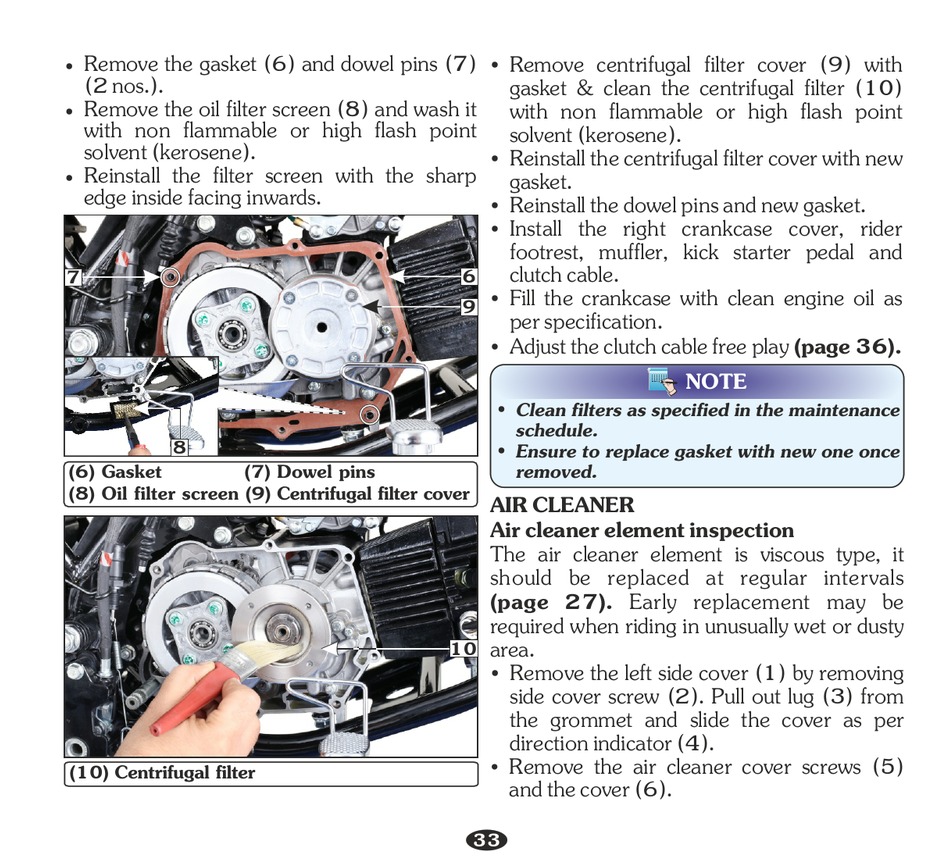

Remove the gasket (6) and dowel pins (7)
•
(2 nos.).
Remove the oil filter screen (8) and wash it
•
with non flammable or high flash point
solvent (kerosene).
Reinstall the filter screen with the sharp
•
edge inside facing inwards.
7
8
(6) Gasket
(8) Oil filter screen (9) Centrifugal filter cover
(10) Centrifugal filter
(7) Dowel pins
Remove centrifugal filter cover (9) with
•
gasket & clean the centrifugal filter (10)
with non flammable or high flash point
solvent (kerosene).
Reinstall the centrifugal filter cover with new
•
gasket.
Reinstall the dowel pins and new gasket.
•
Install the right crankcase cover, rider
•
footrest, muffler, kick starter pedal and
clutch cable.
6
Fill the crankcase with clean engine oil as
•
9
per specification.
Adjust the clutch cable free play (page 36).
•
Clean filters as specified in the maintenance
•
schedule.
Ensure to replace gasket with new one once
•
removed.

AIR CLEANER

Air cleaner element inspection
T he air cleaner
should be replaced
(page 27). Early replacement may be
required when riding in unusually wet or dusty
10 area.
Remove the left side cover (1) by removing
•
side cover screw (2). Pull out lug (3) from
the grommet and slide the cover as per
direction indicator (4).
Remove the air cleaner cover screws (5)
Ÿ
and the cover (6).
33
NOTE
element is viscous type, it
at regular intervals
